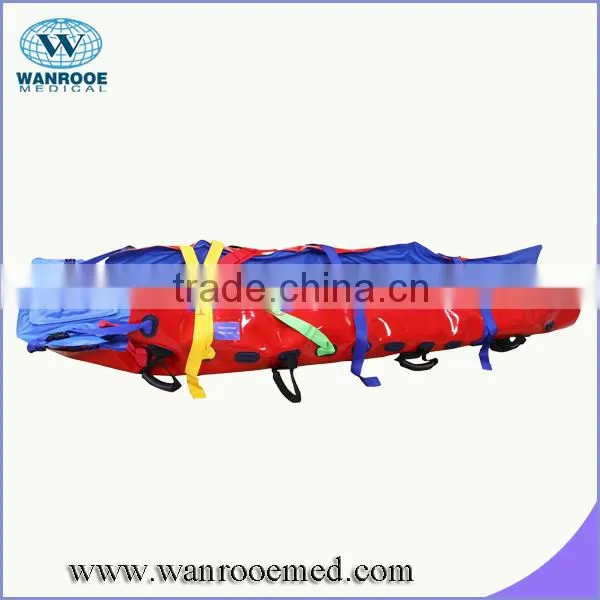

EA-11A02 Full Body Vacuum mattress

EA-11A02 Full Body Vacuum mattress

The Full-Body Vacuum Mattress immobilizes the patient in a secure position as it conforms to any body shape. WANROOEMED emergency vacuum mattress adopt multiple-cavity immobility technology which make beads uniform distribution and fix the patient body fastly according to patient shape. Multi-fixation points for more safe, convenient transportion.

Vacuum Mattress Features:
        1.The Fast-shaping-System
It keeps the internal polystyrene beads in their correct position and eliminates the need for difficult and time consuming manual spreading of the beads.
This enables fast, safe and easy application in all situations, simple handling and lowest possible weight and size for easy transportation and storage.
         2.Outer shell made of medical TPU
To achieve outstanding durability, abrasion resistance, tightness, easy clean up and comfort for the patient, we adopt medical TPU, durable, no retardarce, no hot pressing connection. Pallmann vacuum mattress is possible to use in a wide temperature range, from +80°C to -40°C.
        3.Hot insulation: good seam without heat lost.
        4.Innovative vacuum head pad and back fixation mattress fix the patient furtherly to make sure the transfer safety.

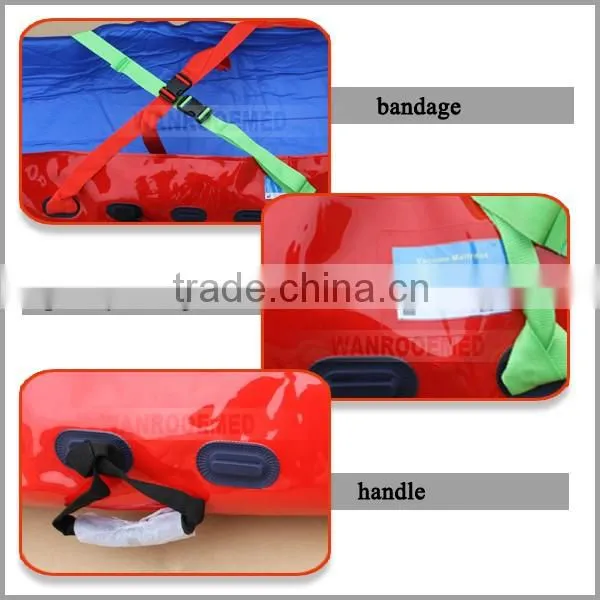

        5.Adjustable Handles and straps system
The user can fix the position freely of straps and handles as needed.
        6.High quality vacuum valve
It closes automatically when suction stops preventing loss of vacuum if slipping with the pump. The vacuum state in -0.1Mpa~-0.05Mpa 72 hours or above under atmospheric pressure without leakage.
       7.X-ray-, CT-, and MRI-compatible
All material absolute insulation, which allow X-ray-, CT-, and MRI examination.

Vacuum Mattress Application range:
The vacuum mattress is used for traffic accident, army, airport, marine rescue to fix body parts(head, neck,limbs, truck, spine etc ), avoiding second injuries, It specially prevent fracture break end from stabbing muscle, nerve, blood vessel, organ.

It with head fixation vacuum pad.

Head section/middle part/ foot section width: 400mm/880mm/600mm

Length: 2000mm
