Adonis2000W--Anesthesia Machine
Anesthesia Machine Main features:
•Overall ventilation model, applicable for adult and child
•12.1” high definition color TFT screen display
•World famous differential pressure flow sensor, precise tidal volume control
•Intellectual flow calibration system realizes dynamic tidal volume compensation
•Perfect respiratory mechanics , respiratory efficiency monitoring and alarm
•Electronic PEEP
•Integrated circle breathing system, available for high temperature sterilization
•Vaporizer with sensitive compensation for flow, temperature & pressure, precise and stable output, 250ml fill quantity
•5-tube precise flowmeter, automatic alarm and cut off upon insufficient oxygen supply
•AGSS connect port completely collects various waste gases
•Large capacity & maintenance-free battery, power supply time for more than 8 hours
•Convenient soft ware upgrading and optional configuration
Anesthesia Machine Main specifications:
| Gas source | O2, N2O, Air |
| Respiratory ventilation model | IPPV(VC), IPPV(PC), IPPV(TC) ,Manual, sigh, PEEP |
| Monitoring parameters | dynamic lung compliance, TV(expired), MV, airway pressure (peak , platform ,mean ), O2 concentration, PEEP, respiratory frequency, battery power, etc |
| Monitoring waveform | pressure-time, flow-time, volume-time, pressure-volume , flow-volume |
| Alarming parameters | upper and lower limit of TV, upper and lower limit of MV, upper and lower limit of O2 concentration, upper and lower limit of airway pressure, asphyxia, abnormal power supply, abnormal airway, abnormal gas source pressure, etc |
Standard configuration is a single vaporizer (Mode V100, enflurane or isoflurane is optional)

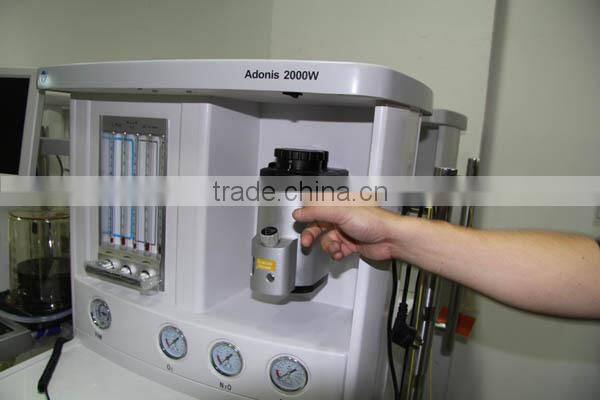

Anesthesia Machine details:

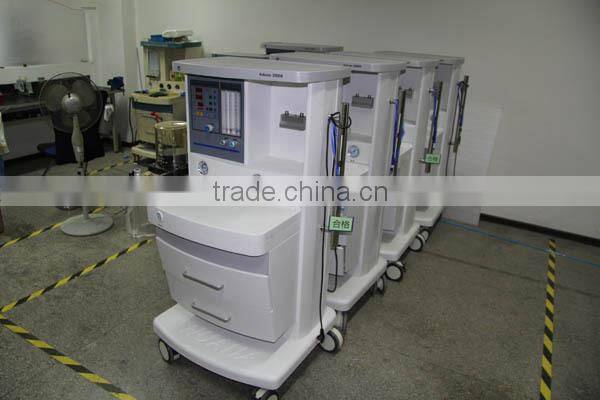

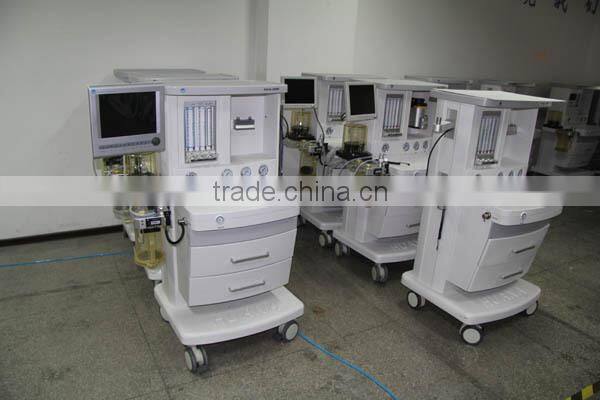

Anesthesia Machine in factory:

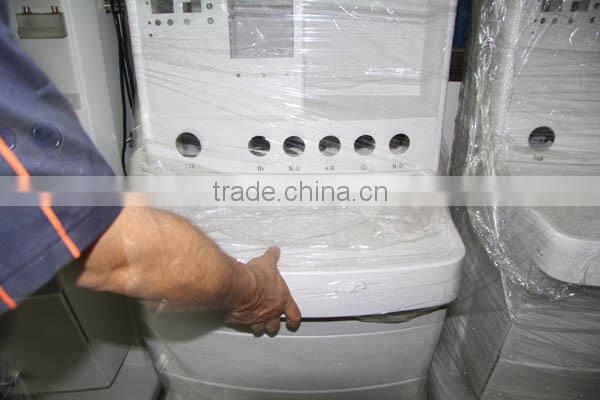

Anesthesia Machine parts:
Anesthesia Machine shows:
