Brief Introduction
R-1449 is the special immersion varnish for glass fiber covered winding wire use. It is made from heat resisting polyester resin, modified epoxy resin, cross-linking agent and environment friendly thinner etc. The heat-resistant grade is F/H, comply with RoHS environmental requirements.
Features

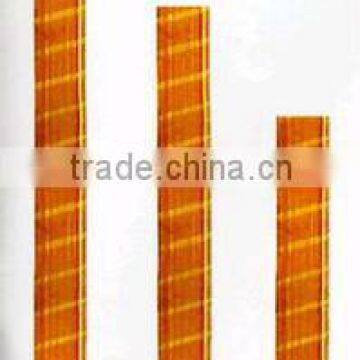

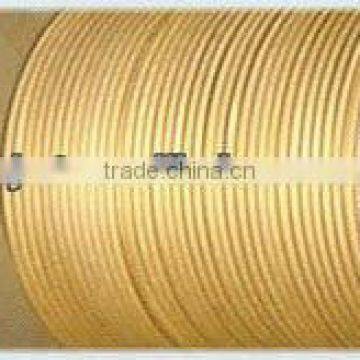

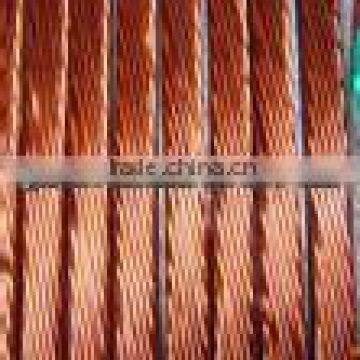

Low volatile and smelly, high film hardness adhesive force, good wettability for fible glass covered wire. After using this varnish, the wire has characters of full and golden appearance, excellent adhesion stress between wires and copper body, no patina, no after tack, and without corrosivity for copper body.
Applications
Be used for making all types of level F and H glass fiber covered winding wire, it is special suitable for imide film winding wire.
Technical Date(according to Q/R 101-2010 company standard)
No. |
Test Item |
Test Method |
Unit |
Value |
1 |
Appearance |
Test Tube |
- |
Rufous transparent liquid, without mechanical admixture |
2 |
Viscosity |
4#cup, 23±1°C |
s |
80-150 |
3 |
Solid content |
110±2°C, 2h |
% |
60-70 |
4 |
Drying time |
150±2°C |
min |
≤60 |
5 |
Elasticity |
240±2°C,10min |
- |
Fold mandril (dia. 1mm) without cracked |
6 |
Dielectric strength |
Normalcy |
MV/m |
≥70 |
7 |
Volume resistivity |
Normalcy |
Ω·m |
≥1×1012 |
180±2°C |
≥1×107 |
Established in 1992, Rota Group is one of the most professional manufacturers of impregnating varnish, mica tape, potting resin and embedding resin in China. Most products have been approved by ISO9001, 14000, UL, TUV, FDA, RoHS and REACH, widely used in high-voltage motors, wires and cables, household appliances, industrial pumps, and metallurgy equipments etc. We win the trust of the majority of well-known manufactures, like BOSCH, BLACK & DECKER, Fujitsu, Shibaura, REGAL, Siemens, EPCOS, N.P.V. and so on.
Professional quality, creating value for customers. Rota Group lead in the aspects of industry scale, product technology and innovation capacity, we will provide quality products and professional services for you. Welcome you!
