R-403 Epoxy Air-Dry Insulating Paint
Brief Introduction
R-403 is the two component air-dry insulating paint formed by the epoxy resin and curing agent which are dissolve in mixture solvent respectively, the weight ratio of two component (part A and part B) is 1/1. Its heat-resistant grade is F.

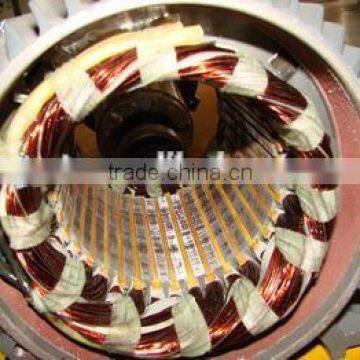

R-403 has some excellent characteristics, like fast drying, high film strength, good insulating property, anti-mildew and so on. This paint is fit for B and F class coil insulation repair and strengthen, and anti-moist or anti-rust in the room temperature drying operate.
Qualification (as the Q/R 101-2010 company standard)
No. |
Test Item |
Test Method |
Unit |
Value |
|
1 |
Appearance |
Test Tube |
- |
Red brown color transparent liquid, without mechanical admixture |
|
2 |
Viscosity |
4#cup, 23±1°C |
s |
12-20 |
|
3 |
Dry Time |
Dry to touch |
23±2°C |
h |
≤24 |
Hard dry |
≤48 |
||||
4 |
Power Frequency Electric Strength |
Normalcy |
MV/m |
≥50 |
|
5 |
Volume Resistivity |
Normalcy |
Ω·m |
≥1×1012 |
|
Flooding |
≥1×107 |
||||
6 |
Pot Life |
23±2°C |
h |
≥8 |
|
Usage
Mix part A and part B under the room temperature in according with the weight ratio. This product should be used after mixed as soon as well.
You may dip, brush or jet the workpiece using the paint, and then dry it in the room temperature (above 20°C) more than 24h.
