Specifications

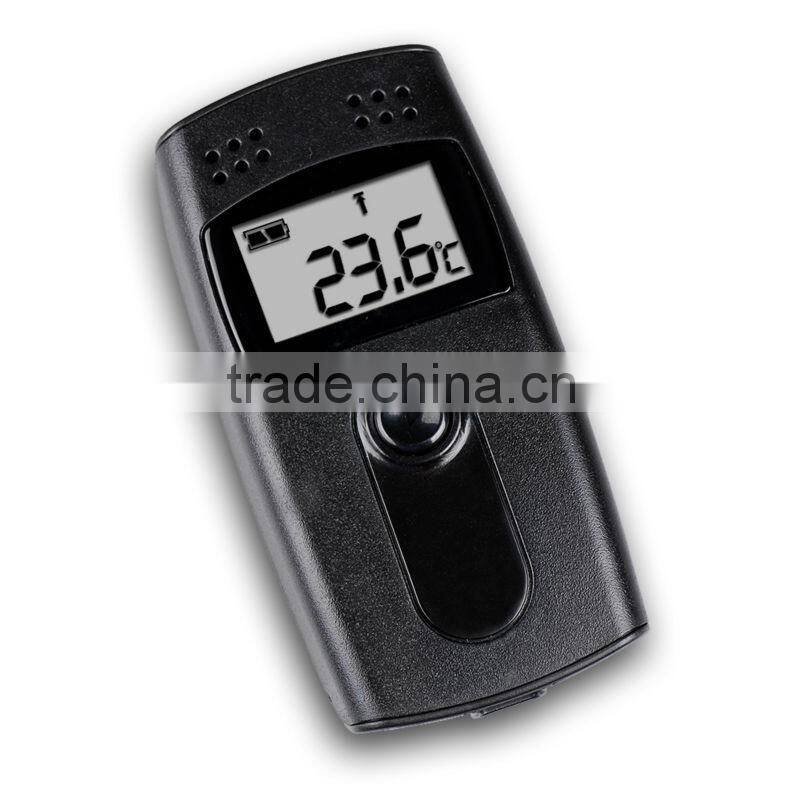

Mini USB Temperature Data Logger/Recorder with External SensorBrief Description
This mini Temperature Data Logger has wide measuring ranges -30 °C~+60 °C with internal sensor and -40 °C~+85 °C with external sensor (1.1m cable). There are many key features such as two scales (°C / °F), high accuracy,adjustable record intervals & long battery life for convenient and reliable temperature data recording, monitoring and analysis.

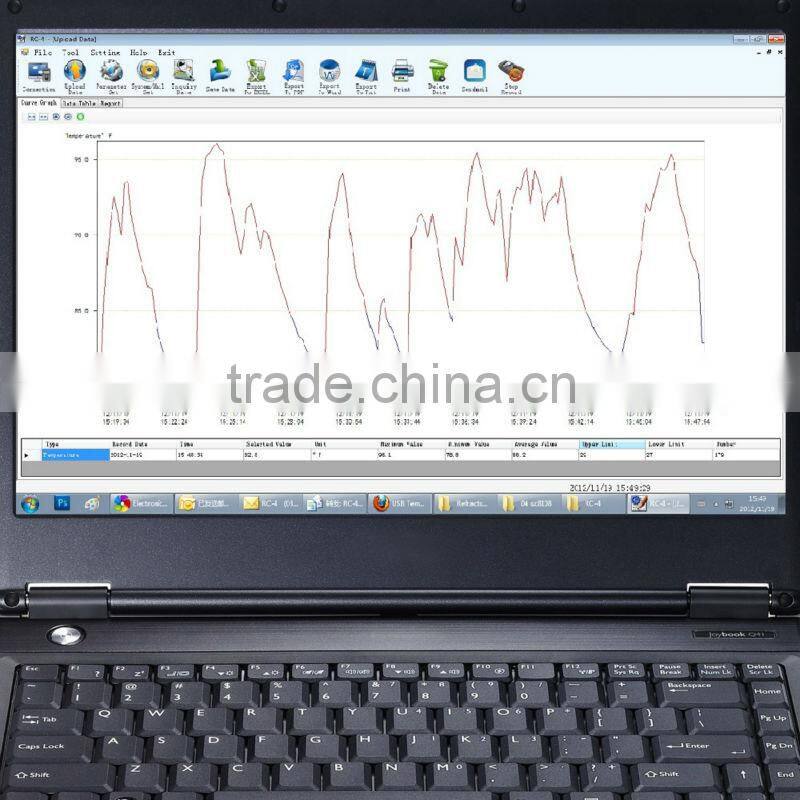

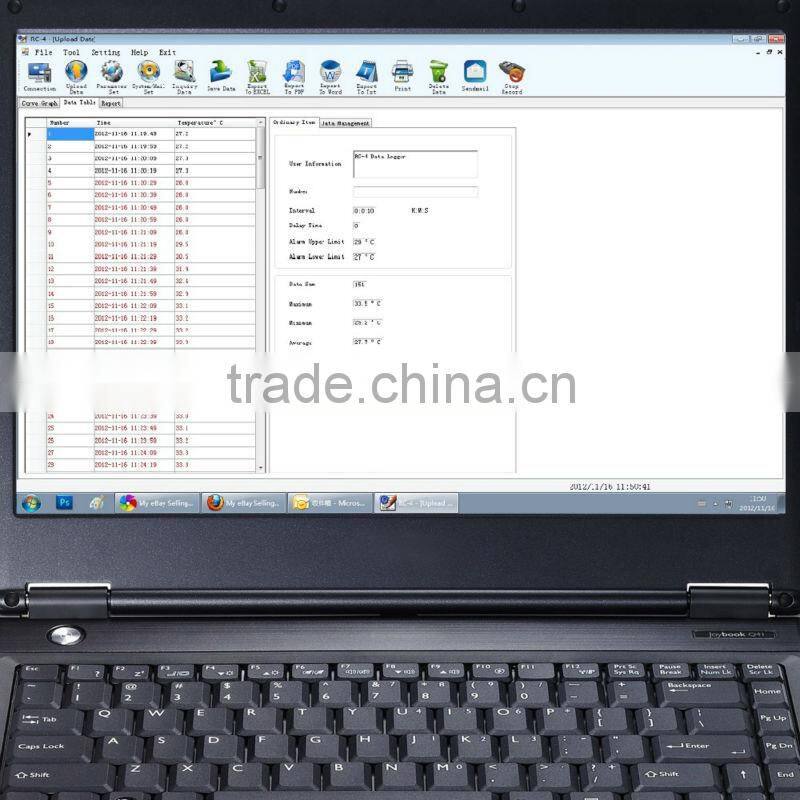

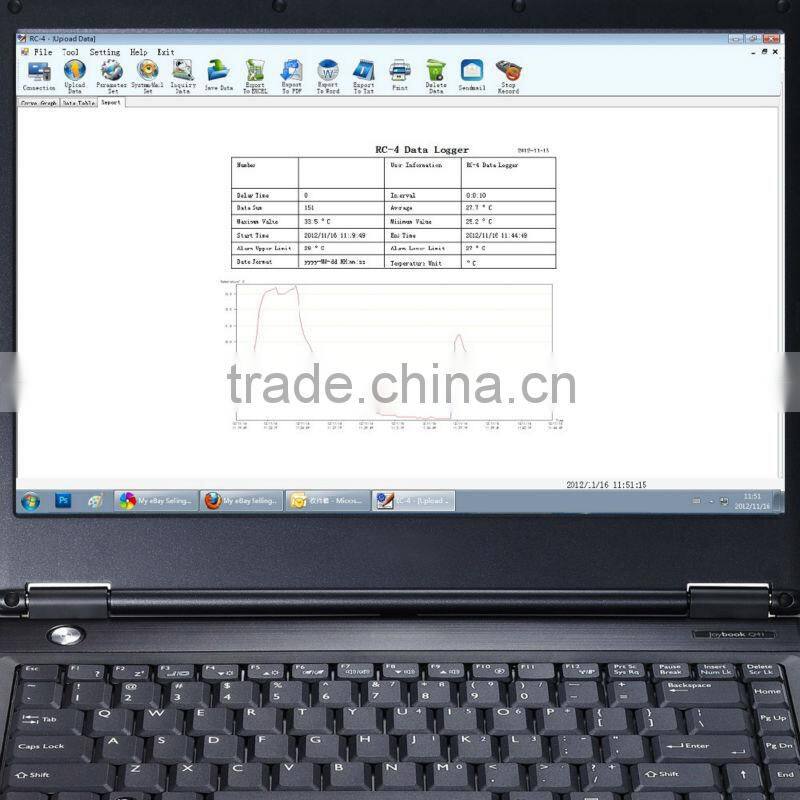

This data logger has a large permanent data memory of 16000 points and comes with data management software for easy data download to computers through USB interface. You could analyze data in form of tables, graphs & reports and export data in PDF/Word/Excel/TXT format. In addition, users can set 0~6hrs for delay startup and performtemperature calibration with this software.

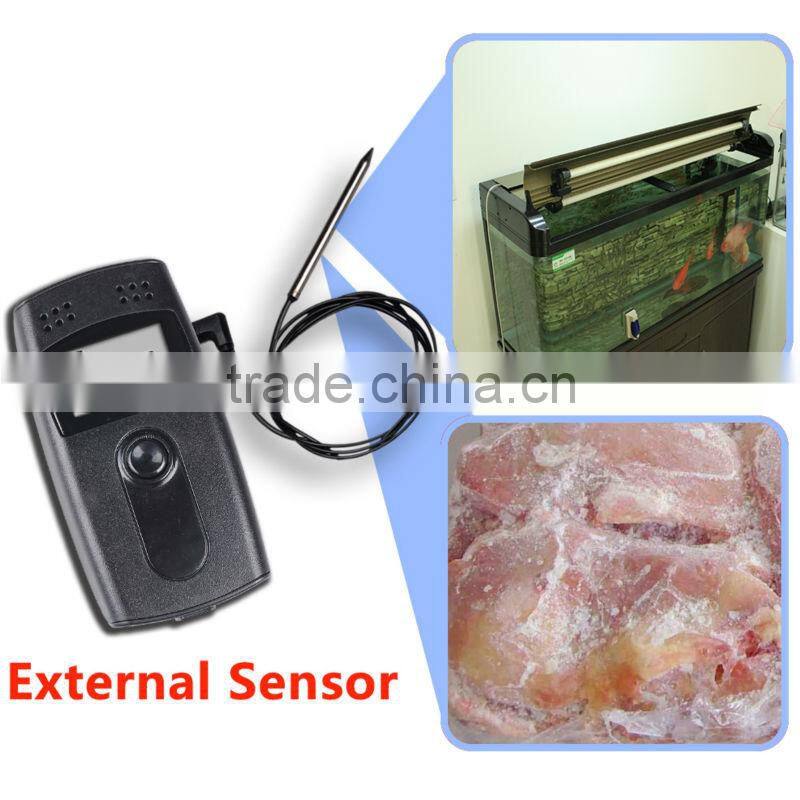

This data logger is mainly used for temperature recording during storage and transportation of foodstuff, medicine, chemicals and other products which are temperature sensitive, especially widely used in ocean/air/highway transportation for exporters, or for large-sized global supply chain businesses. It is also applicable in where temperature monitoring is important such as warehouses, laboratories and museums. The specially designed external sensor allows temperature monitoring with contact of the target objects such as aquarium water, refrigerated meats, etc.
Features
- Use to record temperature data (°C / °F) over a long period of time
- Two temperature sensors: internal & external
- External sensor with 1.1m cable for contact monitoring
- 0~6hrs delay startup feature
- Temperature calibration
- Above one year battery life
- 16000 data recording capacity
- Wide measuring range, high accuracy & adjustable record interval
- Over Temperature Alarm & Upper/Lower Limits can be set
- MAX/MIN values
- LCD to show data and settings
- Data management software & USB cable included for working with PC easily
- Data can be downloaded, analyzed, exported and printed conveniently
- Auto power off and low battery indication
Specifications
- Temperature unit: °C / °F
- Temperature measuring range (internal sensor):-30 °C~+60 °C (-22°F~ 140°F)
- Temperature measuring range (external sensor): -40 °C~+85 °C (-40°F~ 185°F)
- Ambient environmental temperature: -30 °C~+60 °C (-22°F~ 140°F)
- Accuracy: ±1 °C
- Resolution: 0.1 °C
- Record capacity: 16000 points (MAX)
- Record interval: 10s~24hour adjustable
- Delay startup time: 0~6 hours
- Sensor: Internal NTC thermal resistor
- External sensor cable: 1.1m

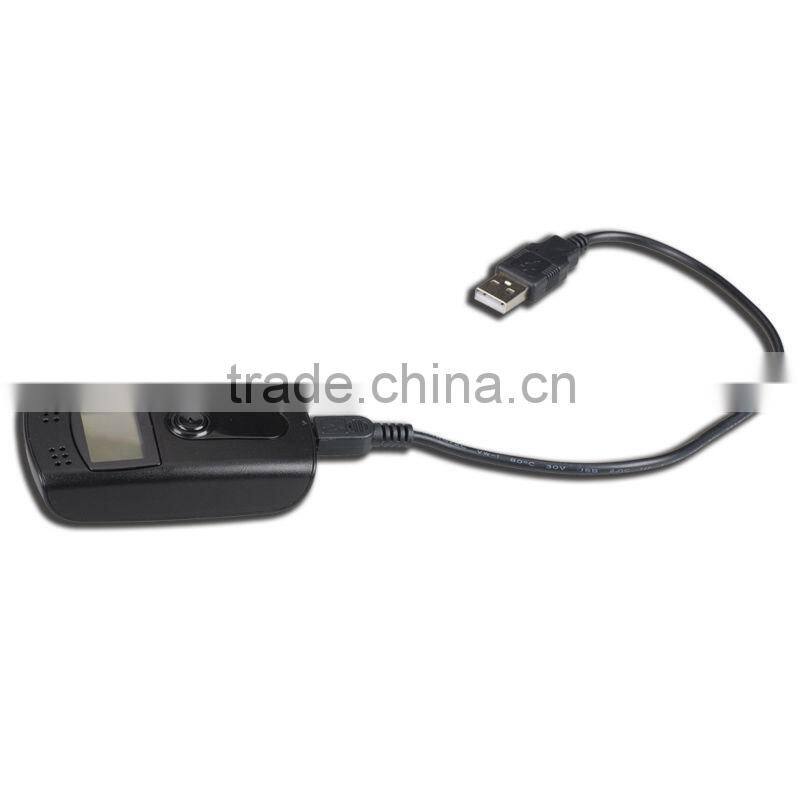

- Communication interface: USB interface

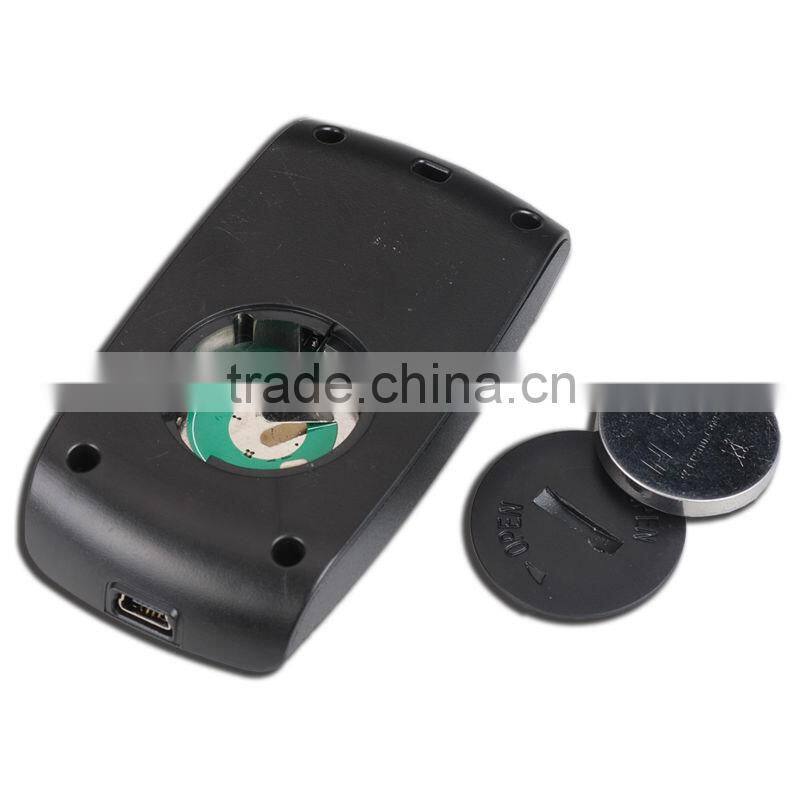

- Power supply: CR2450 battery or power supply via USB interface
- Battery life: in normal temperature, if the record interval sets as 15 minutes, it could be used above one year
- Item Size: approx. 84 (L) x 44 (W) x 20 (H) mm (3.3' x 1.73' x 0.79' inch)
- Item Weight: approx. 95 g (3.2 oz)

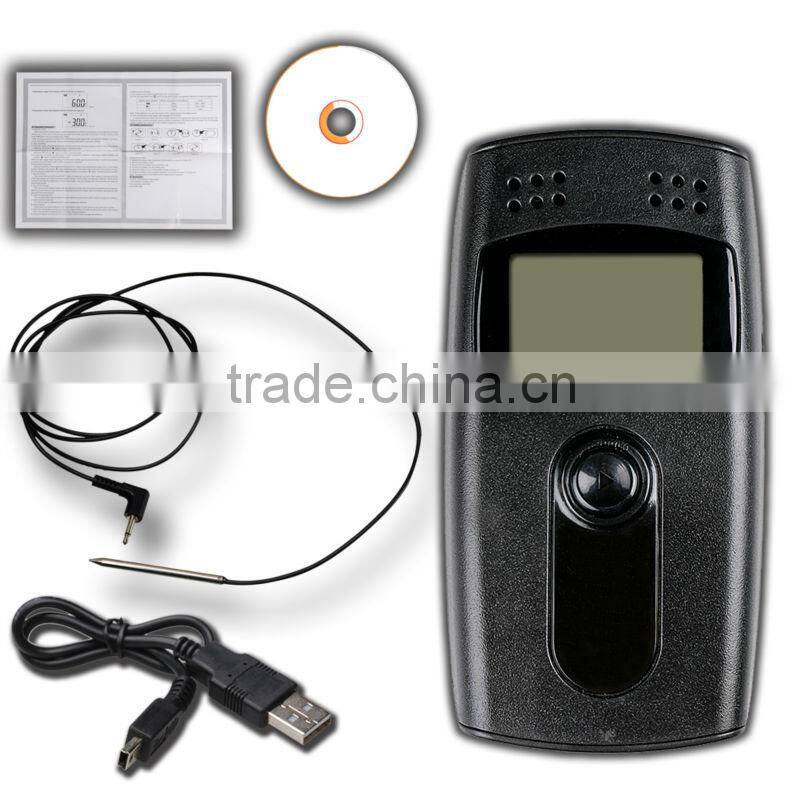

One Set Included
- 1 x Data Logger
- 1 x Battery (Installed)
- 1 x External Sensor
- 1 x USB Cable
- 1 x Software CD
- 1 x Instruction Manual
- Standard Factory Package
