Home > Products > UPS Power Supply > Portable UPS Power supply 700w/800w/1000W Home UPS dc 10v 12v 15v

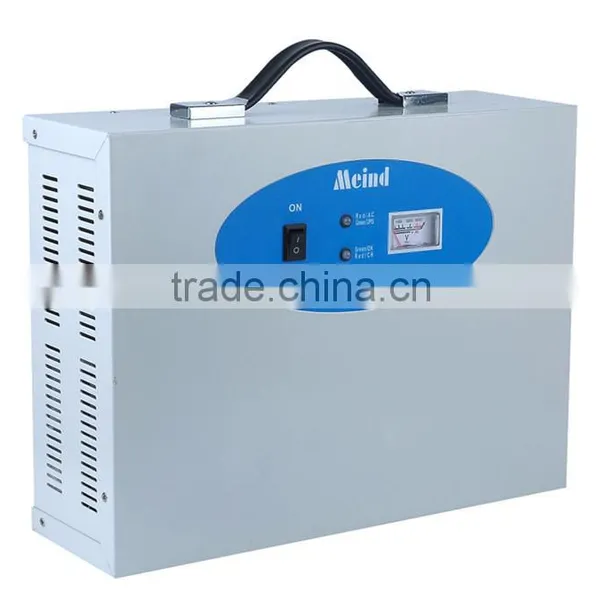

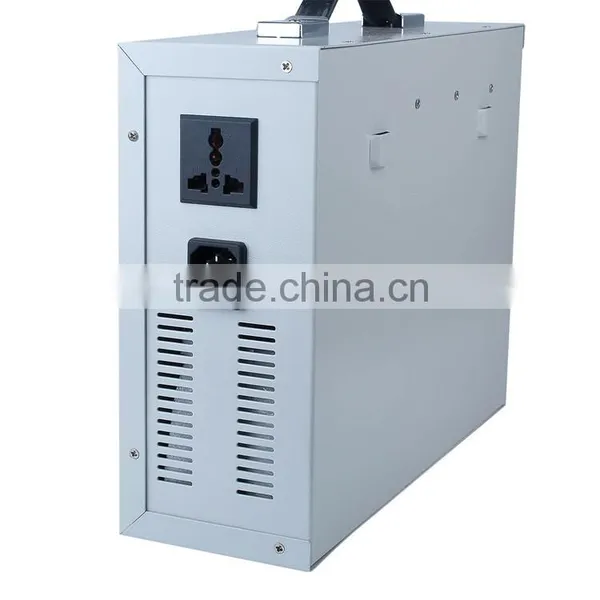

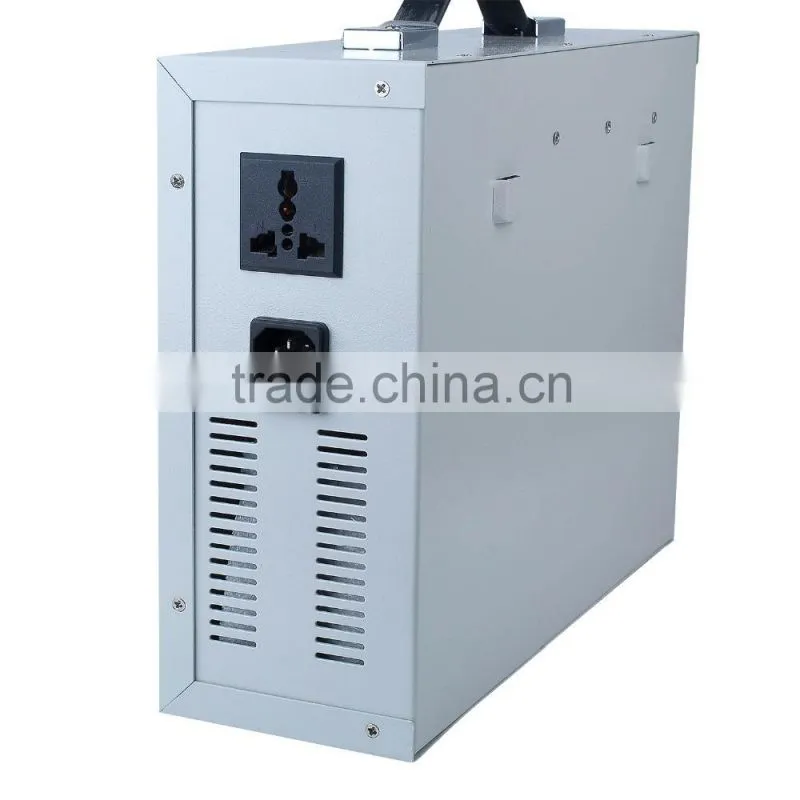

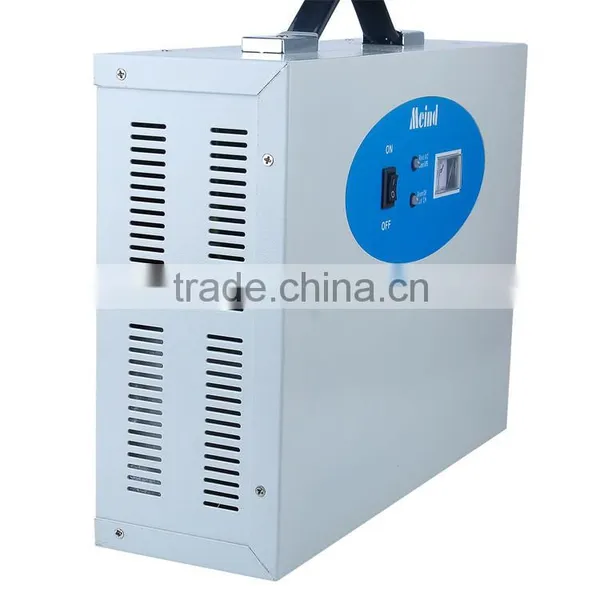

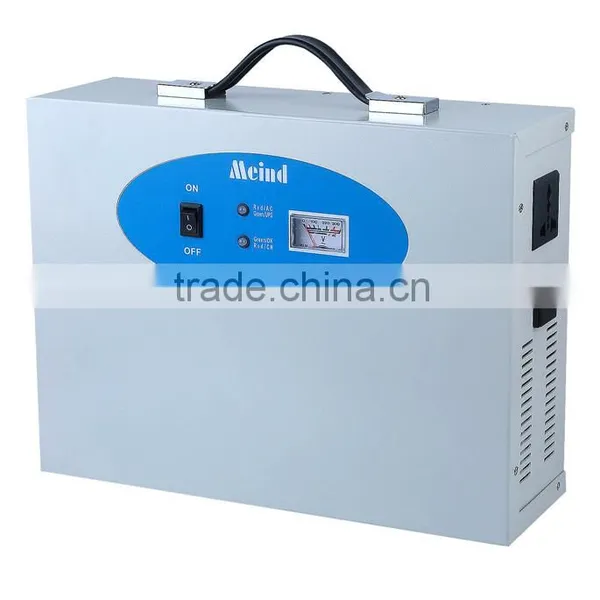

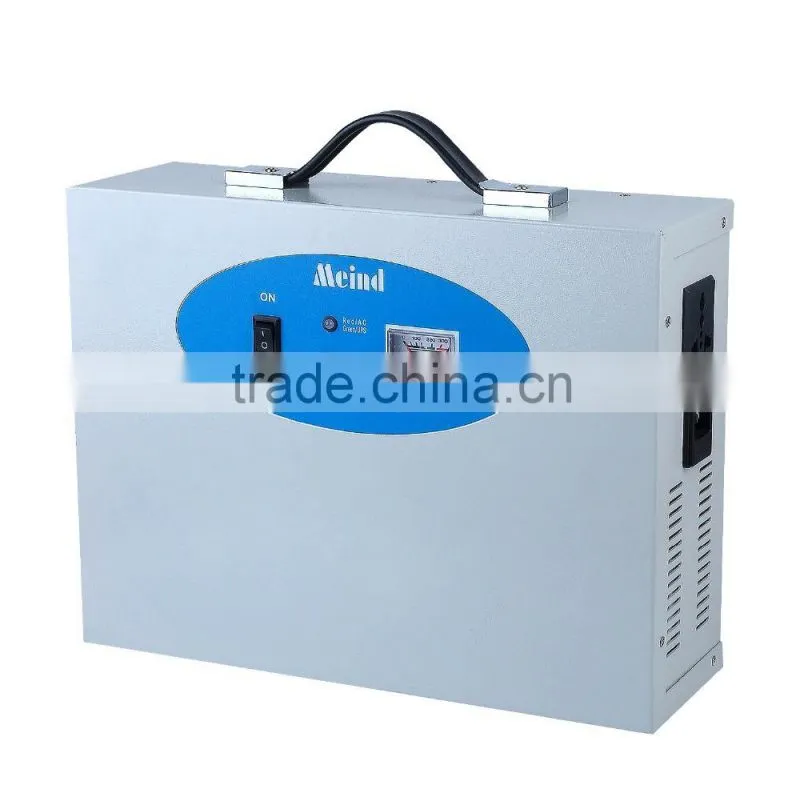

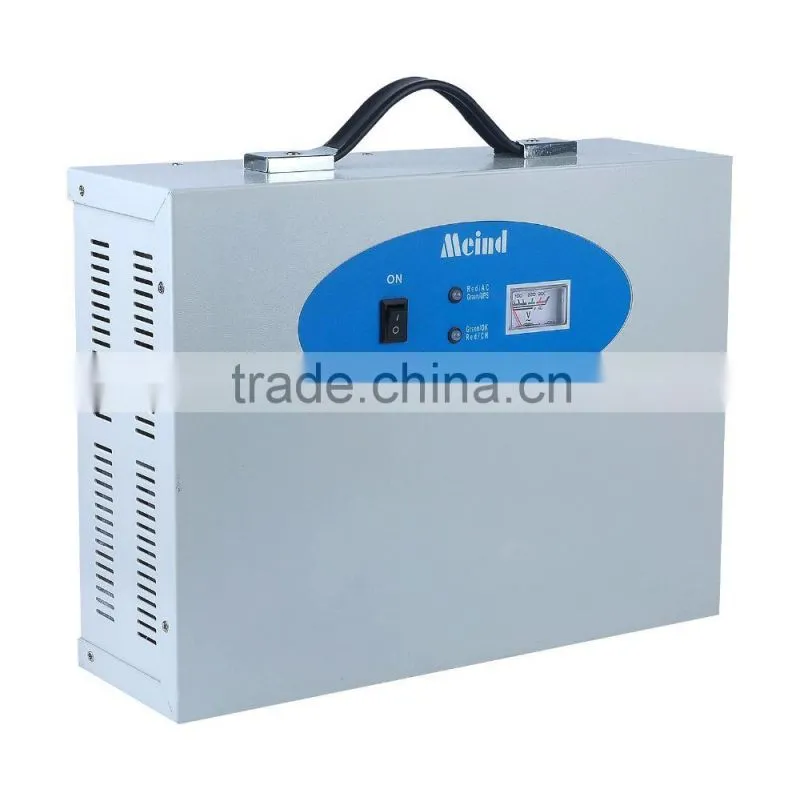

Portable UPS Power supply 700w/800w/1000W Home UPS dc 10v 12v 15v
- 1000 Piece / Pieces per Month
- shenzhen
- Credit Card
- electric ac motor speed controller 480V 32A 18kw 3phase Input&3Phase Output AC frequency converter with 18 months warranty
- 45kw 380v vector control ac frequency converter 50hz 60hz motor frequency inverter 3 phase Power Frequency Converter for Pump
- EM15-G3 General used Vector control Frequency inverter(3 phase )
- EMHEATER soft starter
- EM GS2 7.5KW 220V 240V Motor Soft Starter for Submersible Pump deep well
- Inverter AB PowerFlex®7 Converter 22CD012N103 Inverter PowerFlex 400- 5.5 kW (7.5 HP) AC Drive
Product Details
Place of Origin: | Guangdong, China | Brand Name: | Meind | Model Number: | MND-UPS700W(700W) |
Output Power: | Other, 700w | Output Type: | Single | Size: | 330*125*250mm |
Weight: | 10.8KG | Input Voltage: | 12V/24V/48V | Output Voltage: | 110V/220V/230V/240V |
Type: | DC/AC Inverters | Output Frequency: | 50Hz/60Hz | Output Current: | By load |
Product Description
Portable UPS Power supply 700w/800w/1000W Home UPS dc 10v 12v 15v
*Specifications:
1) Input Voltage:DC10-15V
2) Output Voltage:AC220V±10V
3) Continuous Power output: 600W/700W/800W
4) Output Waveform:Modified Sine Wave
5) Frequency: ±4% 50Hz,(60Hz)
6) Low Voltage Alarm:10.5V±0.5V
7) Low Voltage Protection: DC9.0V±0.5V(Automatic shut off and lock mode,when the voltage reach 12V,will unlock automatically.
8) OverVoltage Protection: DC16V±1V
9) Short-Circuit Protection:Yes
10) Temperature Protection:Automatic shut off when the transfomer working temperature≥90℃,and failback≤80℃
11)Over Load Protection : >700W
12) Indicator Light of Charging:Charging:RED/CH,FULL:Green/OK
13) Indicator Light of Output:Utility Power:Red/AC,Emergency Output(Battery-Inverter-AC):Green/UPS Constant voltage and trickle current charge when the battery volt≤13.8V,after≥13.8V floating charge.
14)Charging Specification:No-load output volt:DC13.8V±0.3V
Charging Transform Amps:0.5A±0.2A
Charing Limited Amps:1A±0.2A
15)Withstand Voltage: Input-output:AC5MA/1500V
Output-Shell:AC5MA/1500V
Input voltage | DC10-15V(12V) |
Output voltage | AC220V ±10V |
Continuous Power | 700W |
Overload protection | >700W |
Wave form | Modified sine wave |
Output frequency | 50/60Hz±4Hz |
Charging spec. | No-load output voltage: DC13.8V ±0.3V |
With cooling fan | Yes |
Protections | 1.Short-circuit 2.Over-load 3. Over-Voltage 4.Low-Voltage 5 Over-heat 6. Reverse protection |
Product show:
1.Packing: Box
2. CTN : 2pcs
3. Dimension: 51*38.8*38CM
4. Weight: 10.8kg
5. Net weight (N.W): 21kg
6. Gross weight (G.W): 25kg
*Shipping method:
1. Sample order: by courier, such as DHL, FedEx, UPS, TNT etc. door-to-door;
2. Buck order: By Air or by Sea,Airport/ Port receiving;
3. Our customers specify the freight forwarders or negotiable shipping methods!
4. Delivery Time: 2-3 days for samples; 6- 15 days for batch goods.
Our Services
1. Supply OEM & ODM service. Support customer's logo & brand printing.
2. keep you get the best & most reasonable prices
3. All your questions related to our products will be replied in 24 hours.
4. Fast delivery time, good after-service.
5. Stictly quality control: 100% QC inspection Before Shippment;
6. Product guarantee: 12 months
Q1: Why choose us?Our speacial advantages:
- 1. We are professional manufacturers for 10 years, the quality is very stable and good.
- 2. Our factory passed ISO9001 authentication with standard management & operating system.
- 3. Especially for OEM & ODM projects, we can well coordinate the connection between client and our R&D team, to realize client’s original idea up to total satisfaction.
Q2: Can I have a sample order?
Yes, if we have some stocks on hand.
Q3: What’s your terms & conditions for the order?
1. Payment term: T/T, Western Union, Paypal, Escrow and L/C at sight
2. Price term: FOB Shenzhen, FOB HK, EX-WORKS, CIF, C& F price etc.
Q4: What’s your quality assurance?
Q5: How to contact us?
1. Send your inquiry as below, click "send" now!
2. Add our skype talking on line: Skype ID: LLD6899
3. Or call us right now: Tel: (86 755) 2879 3797 ext.813
