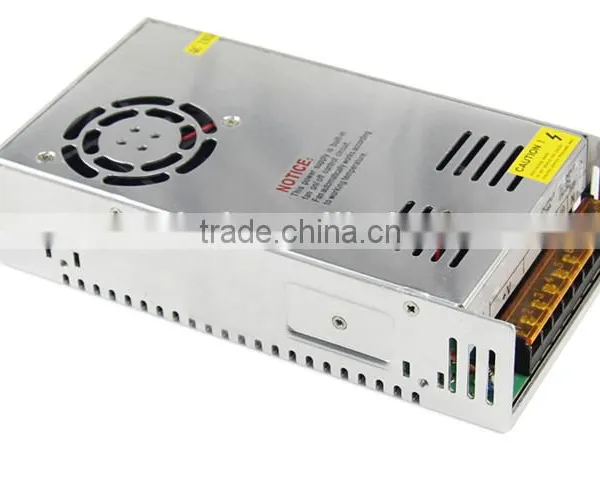

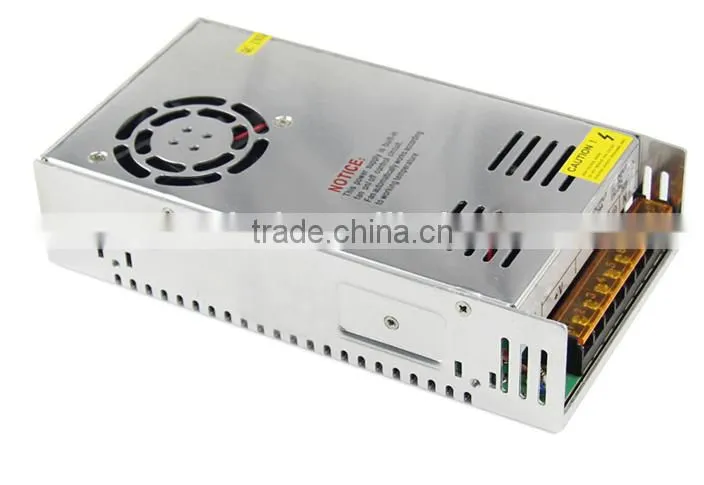

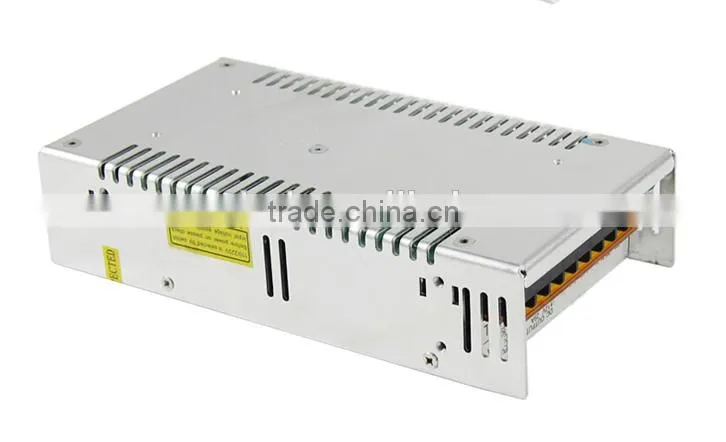

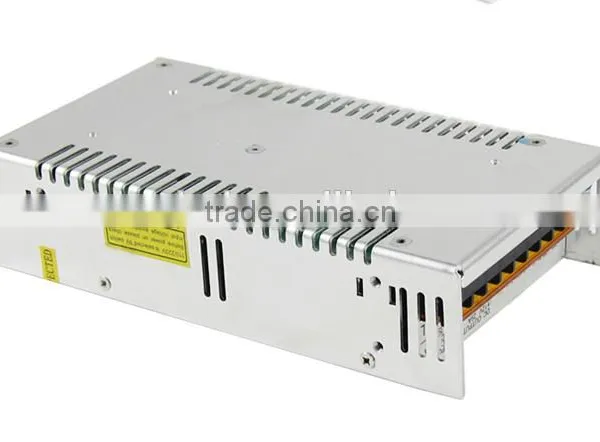

China Supplier 12V 20A 240w Switching Power Supply

Name: China Supplier 12V 20A 240w Switching Power Supply
Brand: Meind
SKU: 109935955

US$ 8.80 - 8.80 MOQ: 100 Pieces

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

Meind

Model Number:

MND-12V 20A

Shenzhen Meind Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shenzhen port

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name Meind

Model Number MND-12V 20A

Output Power 201 - 300W

Output Type Single

Input Voltage Other, 90V-240VAC

Output Voltage 12V

Output Frequency 47-63HZ

Output Current 20A

Product Description

Input	Voltage range	90-240VAC
	Efficiency	>86%
	Frequency range	47-63hz
Output	Voltage	12v
	Current	20a
	Hold up time	10ms/230v at full load
	Voltage tolerance	±5%
Reliability	Hi-Pot Test	Primary to Secondary with 3000Vac 5mA 60s for type test and the unit no flash-over or breakdown occurs during the dielectric strength test.(at 25℃)
	Insulation Dielectric strength	Input-Output≥50MΩ Input-Shell≥50MΩ DC500V
	Leakage Current	0.25mA Max
	MTBF	>50,000 Hours At Full Load And 25°C, Ambient Temperature MIL-HDBK-217F
	Certification	CE
Protection	Short protection	input power shall decrease when the output short ,it shall no damage and shall be self-recovery when fault condition is removed
	Over current protection	The output shall hiccup when the over currents applied to the output rail and shall be self-recovery when the fault condition is removed
	Over voltage protection	The power supply shall be protected against power line surges any abnormal condition
Environment	Working temperature	0°C~+40°C
	Working humidity	20%~85% RH
	Storage Temp, humidity	-20°C~+85°C,10~95%RH
Packing	carton size:5138.838cm 30pcs/carton
