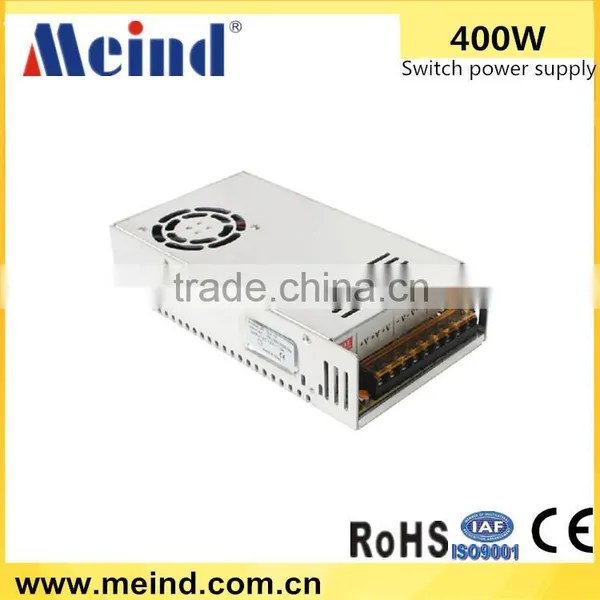

5v 12v Switch Power Supply 400w
US$ 5 - 26
MOQ: 100 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Meind
Model Number:
SP-400W
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
5V/12V/24V 15A AC/DC Switch Power Supply 200W Power Supply With CE ROHS ApprovedUS$ 5 - 8MOQ: 100 Pieces -
5V 2A 10w Switching Power Supply for Cctv,cameraUS$ 1.90 - 1.90MOQ: 100 Pieces
-
High Quality 12V 10A Led Power Supply 120w With CE for CCTV CameraUS$ 5.50 - 5.50MOQ: 100 Pieces
-
25w ac dc Switcing Power Supply 24V 1A Power SupplyUS$ 2.83 - 2.83MOQ: 100 Pieces
-
12V 15A 180w Switching Power Supply for LedUS$ 6.30 - 6.30MOQ: 100 Pieces
Place of Origin
Guangdong, China
Brand Name
Meind
Model Number
SP-400W
Output Power
Other, 400W
Output Type
Single
Input Voltage
Other, 90V-240VAC
Output Voltage
12V DC
Output Frequency
47-63HZ
Output Current
30A
dc 12v switch power supply 400w
|
Input |
Voltage range | 90-240VAC |
| Efficiency | >86% | |
| Frequency range | 47-63hz | |
| Output | Voltage | 12v |
| Current | 30A | |
| Hold up time | 10ms/230v at full load | |
| Voltage tolerance | ±5% | |
| Reliability | Hi-Pot Test | Primary to Secondary with 3000Vac 5mA 60s for type test and the unit no flash-over or breakdown occurs during the dielectric strength test.(at 25℃) |
| Insulation Dielectric strength | Input-Output≥50MΩ Input-Shell≥50MΩ DC500V | |
| Leakage Current | 0.25mA Max | |
| MTBF |
>50,000 Hours At Full Load And 25°C, Ambient Temperature MIL-HDBK-217F |
|
| Certification | CE | |
| Protection | Short protection | input power shall decrease when the output short ,it shall no damage and shall be self-recovery when fault condition is removed |
| Over current protection | The output shall hiccup when the over currents applied to the output rail and shall be self-recovery when the fault condition is removed | |
| Over voltage protection | The power supply shall be protected against power line surges any abnormal condition | |
| Environment | Working temperature | 0°C~+40°C |
| Working humidity | 20%~85% RH | |
| Storage Temp, humidity | -20°C~+85°C,10~95%RH | |
| Packing | carton size:51*38.8*38mmm 100pcs/carton |
|
Packaging & Shipping
Carton size:51*38.8*38cm 100pcs/carton
7-10days after receiving deposit
