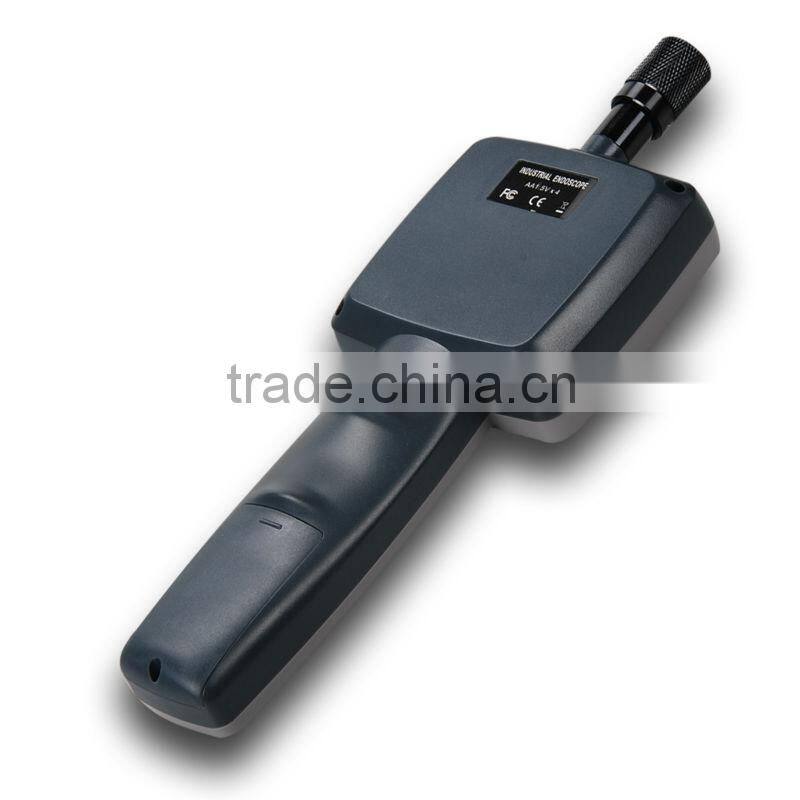

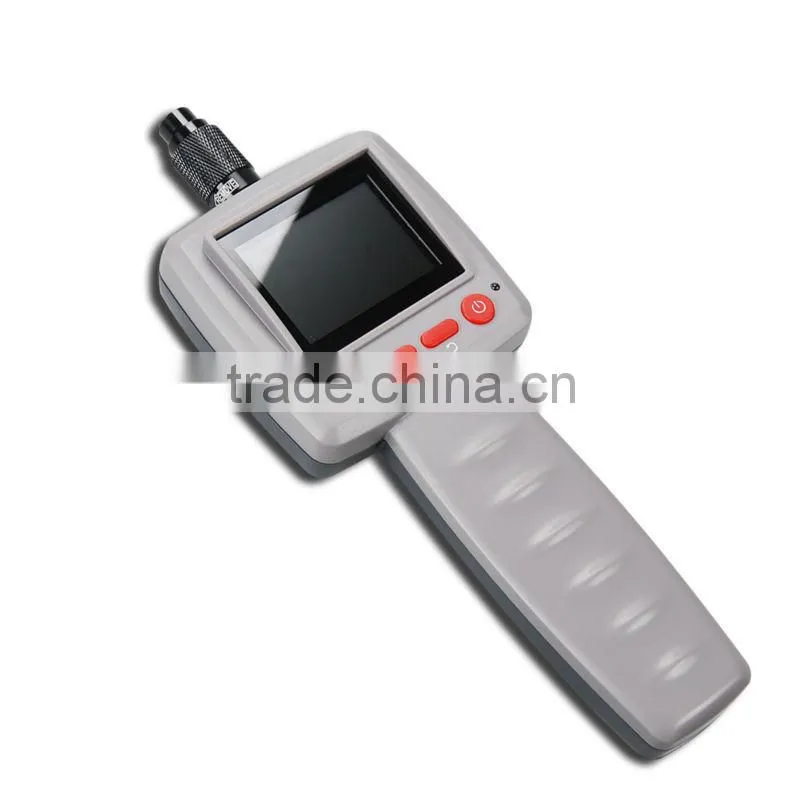

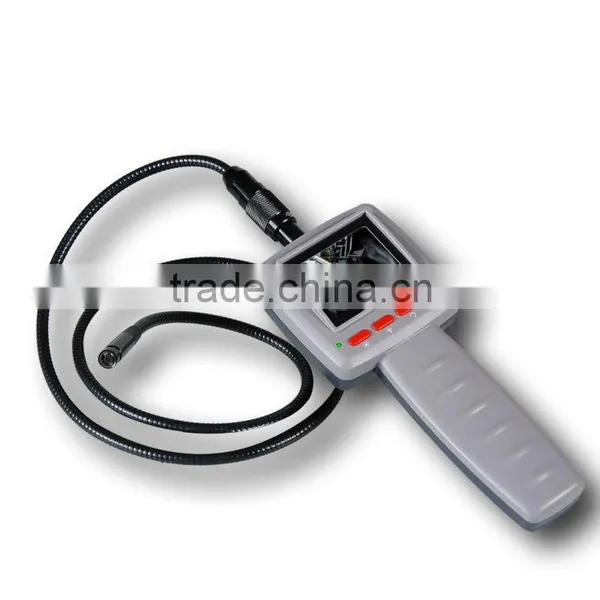

2.4" LCD Video Borescope Endoscope Snake Pipe Cable Inspection Camera

Brief Description

This Large 2.4" Color LCD Video Inspection Camera uses optoelectronic technology to investigate hard-to-reach area. You can use this device for real time inspection & monitoring. The image flip over and 180 rotation function on the LCD allows you to adjust viewing orientation.

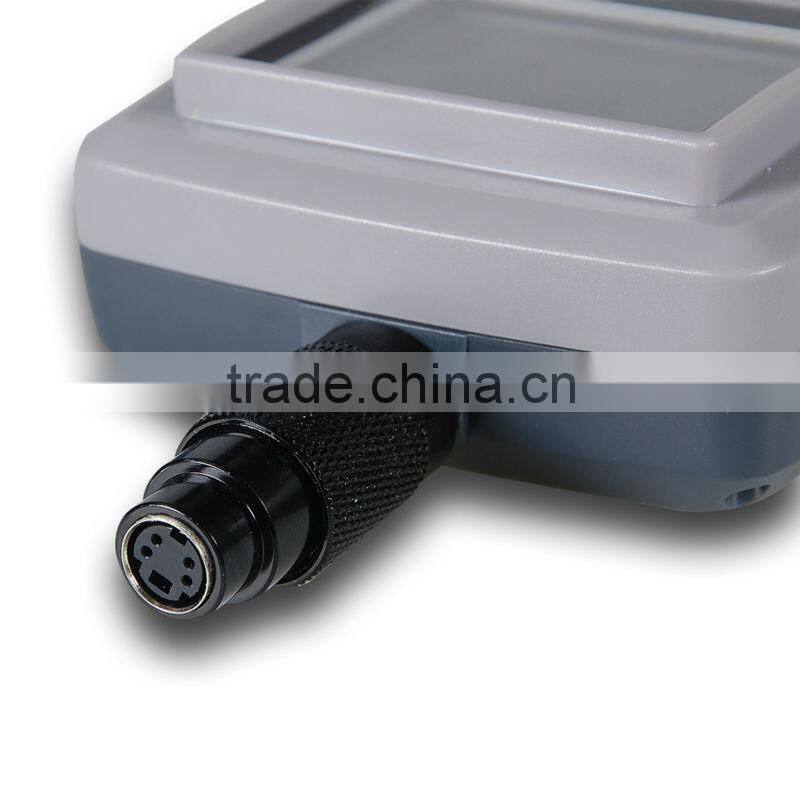

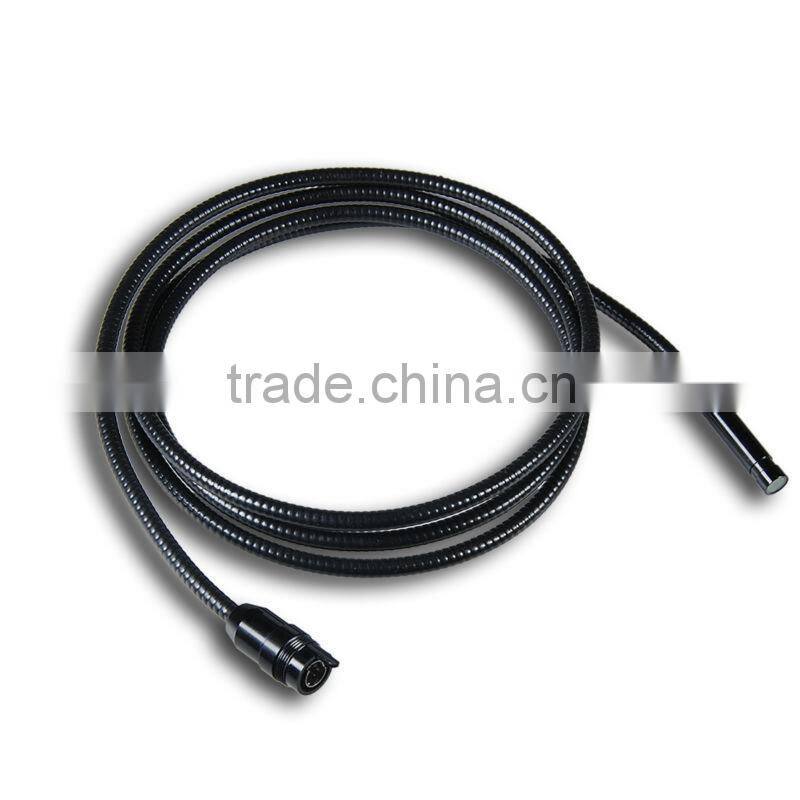

The camera head equips 4pcs of adjustable LED (with brightness control) to illuminate the inspection area. The 1m (3.3 feets) flexible tube with 9.8mm camera head is IP67 waterproof so that you can inspect area under water, gaps and holes especially with small openings. Optional extension cable (3m / 9.9 feets) allows you to further extend the vision of inspection point.

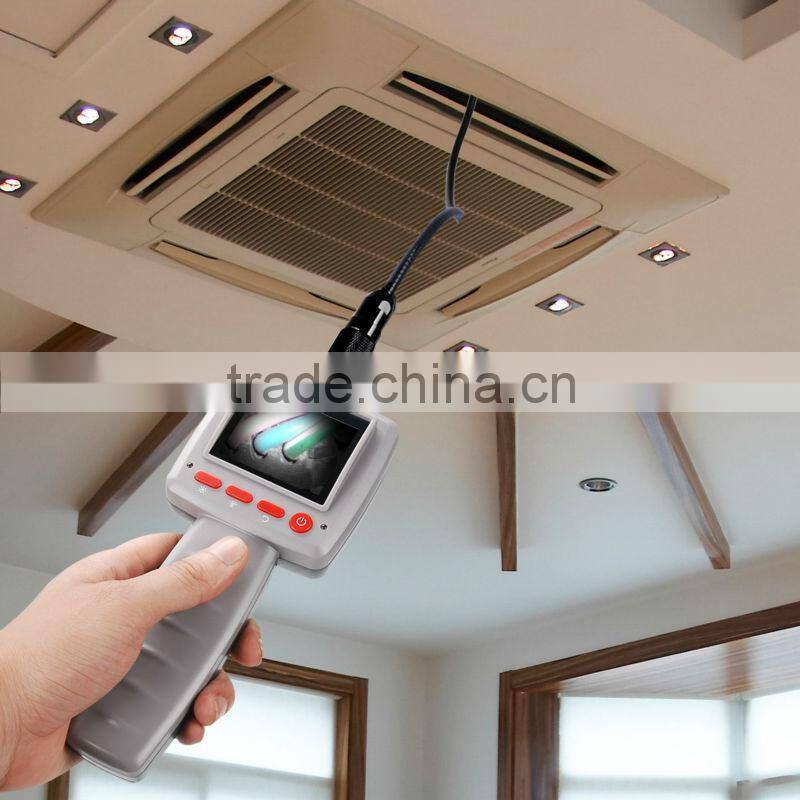

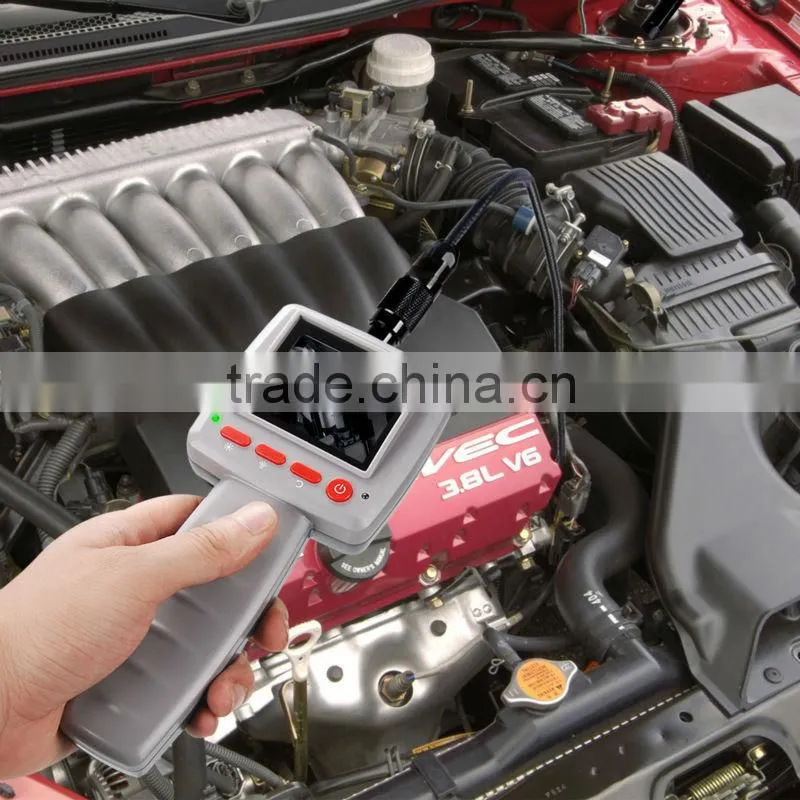

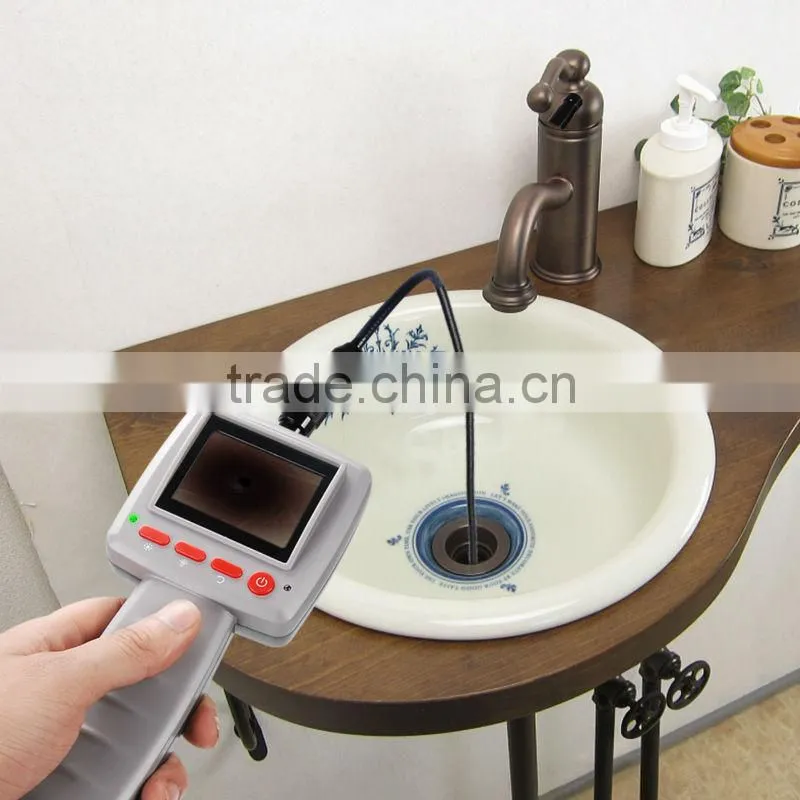

The tool set also includes accessories of hook, magnet and mini mirror to be easily attached to the camera head for picking up small objects, viewing and hooking conveniently. This inspection camera is ideal for HVAC inspection, automotive inspection, vent pipe, machine equipment, engine, cable routing, automotive / boat / aircraft inspection.

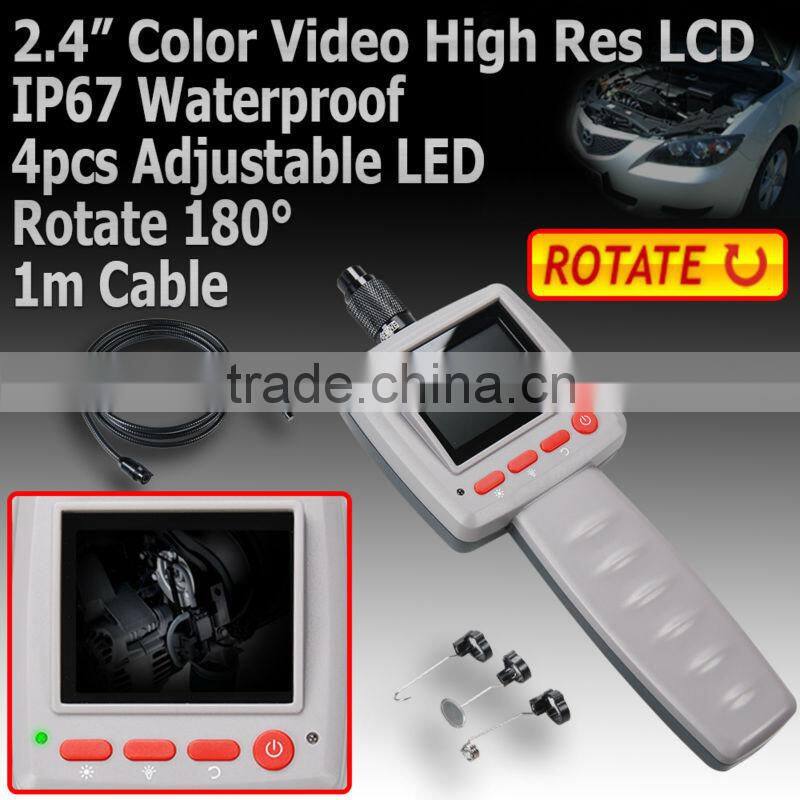

Features

• Flexible 1 metres (3.28 feets) supporting camera tube
• Suitable for hard-to-reach inspection
• Large and clear 2.4 inches TFT color LCD
• Image horizontal and vertical flip over
• Image 180° rotation function
• 4pcs of fully adjustable LEDs for night vision
• 9.8mm & IP67 waterproof camera head
• Lens with 54 Viewable Angle

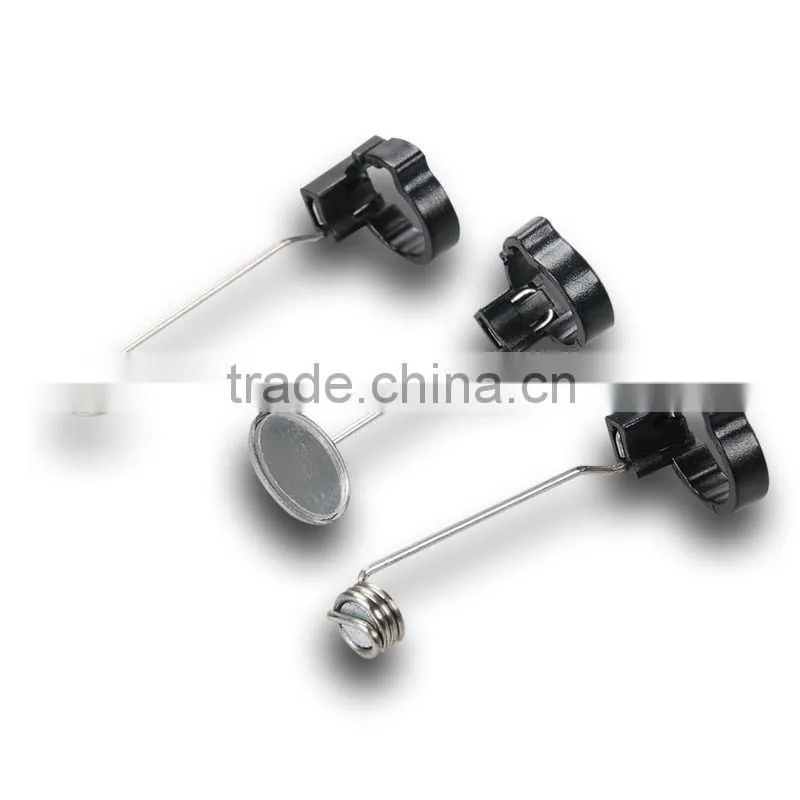

• Small accessories of hook, magnet & mini mirror included
• Glare-free close-ups and wide range field of view
• Low Battery Indicator

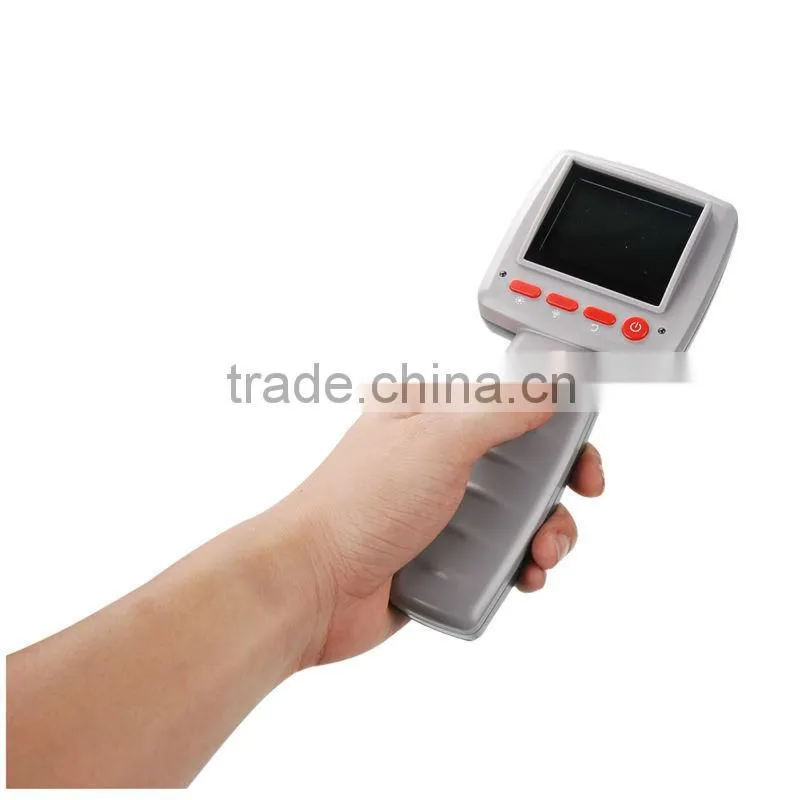

• Comfort Grip Housing
• Conformed with CE Standard
• Optional extension cable (3m / 3.3 feets) (US $31.9 / GBP £19.9 / AU $35.9 / EUR €24,9 only)

Specifications

• Imaging Sensor: CMOS
• LCD Size: 2.4 inches (6cm) TFT
• Pixel Count: 320 x 240, 640 x 480
• Horizontal Viewing Angle: 54
• Minimum Illumination: 0 Lux
• Night Vision Range: 1.5m
• Tube Diameter: 6.8mm
• Waterproof Capacity: IP67 (For Lens/Tube only)
• Effective Pixels: 640 x 480
• Operating Temperature: -20 ~ 60 C (-4 ~ 140 F)
• Operating Humidity: 95%  max
• Consumption Current: 150 mA

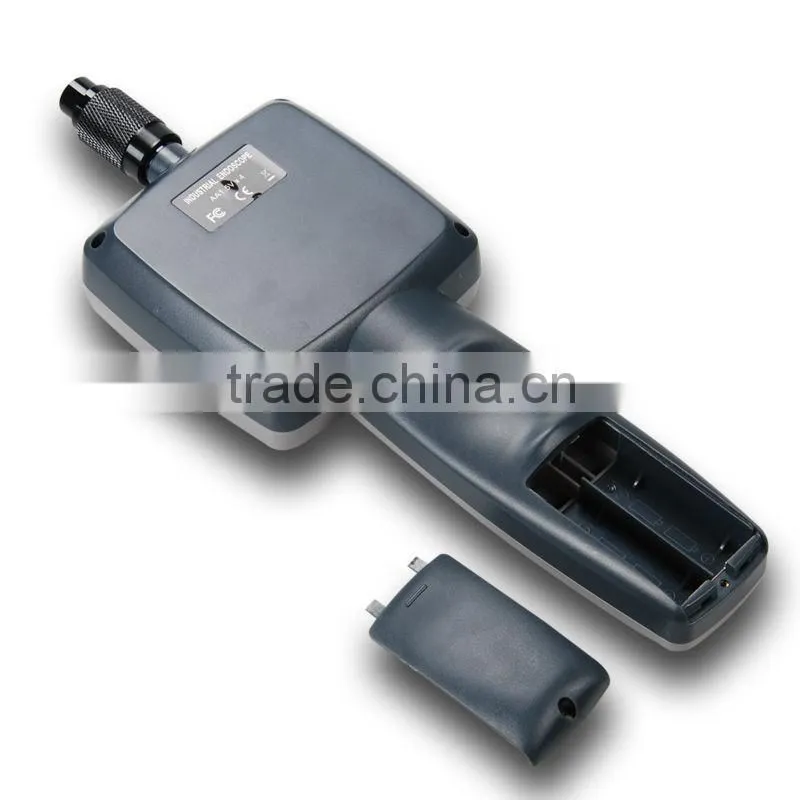

• Power Supply: 4 x 1.5 V AA Batteries (not included)
• Item Dimension: approx. 260 (L) x 19 (W) x 6 (D) mm (10.24 x 7.48 x 2.36 inches)
• Item Weight: approx. 420g (14.8 oz)

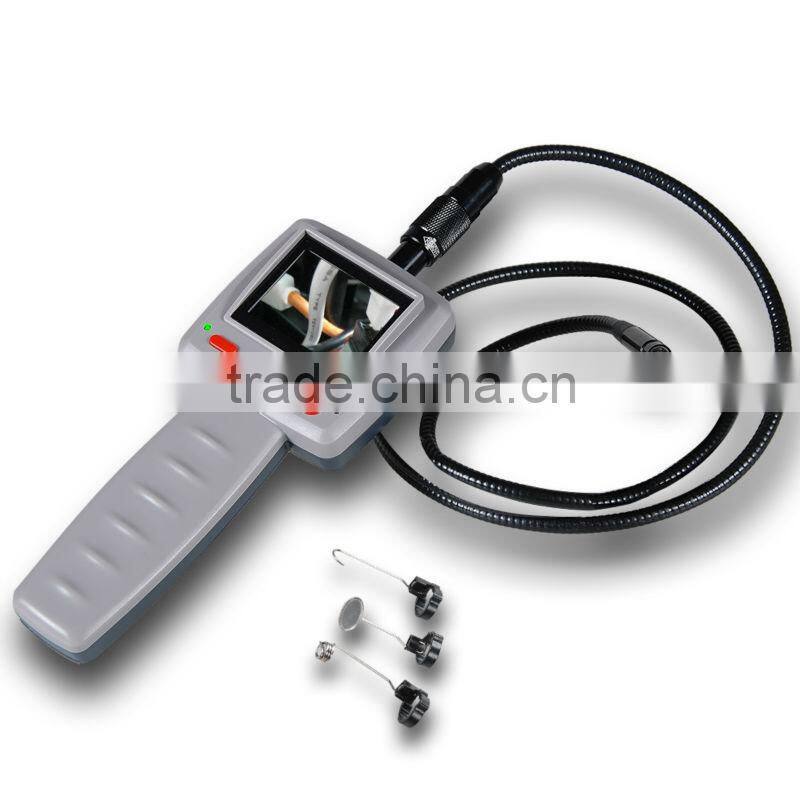

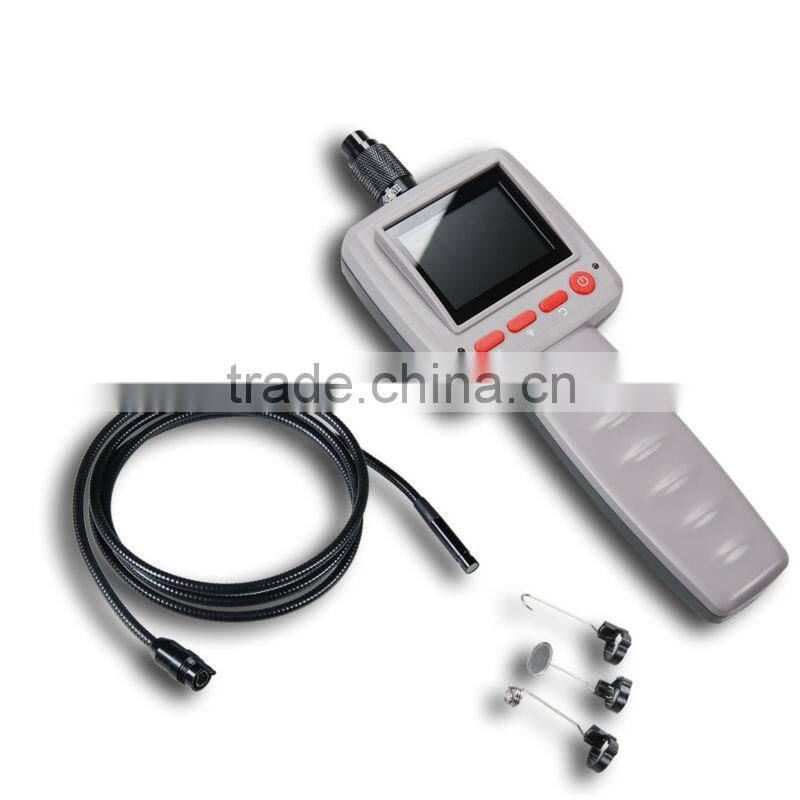

One Set Included

• 1 x 2.4" LCD Inspection Camera

• 1 x 1m Flexible Camera Tube
• 1 x Magnet Tip
• 1 x Hook Tip
• 1 x Mirror Tip
• 1 x Instruction Manual
• Optional extension cable (3m / 3.3 feets) (US $31.9 / GBP £19.9 / AU $35.9 / EUR €24,9 only)
• Standard Factory Package
