used profile projector
Φ300 Vertical Profile Project
Profile Projector JQ3000 series are precise and excellent non-contact optical measuring instrument integrated with the technology of optic, mechanic, electricity and computer.
It is widely used at the field of mechanism, meter, electronic, rubber industry for quality control, it can inspect all kinds of surface and outline of complicated work-pieces, such as, cam, screw thread, gear, perform milling cutter and so on, and it is an effective metrical and analytic system for education, research institute and lab.
300mm diameter screen with digital protractor;
Four size of precision movement stages;
Double steel guide for stage lifting focus system;
Halogen profile and surface illumination;
Geometric multifunction data processing system;
Reverse Image | JQ-3015 | JQ-3010 | JQ-3051 | JQ-3020 | |
Obverse Image | JQ-3015Z | JQ-3010Z | JQ-3051Z | JQ-3020Z | |
Metal Stage Dimension | 340x152mm | 230x230mm | 354x228mm | 350x170mm | |
Glass Stage Dimension | 196x96mm | 145x145mm | 210x160mm | 246x120mm | |
Stage Travel: X-axis | 150mm | 100mm | 150mm | 200mm | |
Stage Travel: Y-axis | 50mm | 100mm | 100mm | 100mm | |
Stage Travel: Z-axis | 90mm(for focusing) | 90mm(for focusing) | 90mm(for focusing) | 90mm(for focusing) | |
Accuracy | ≤(3+L/75)um | ≤(3+L/75)um | ≤(3+L/75)um | ≤(3+L/75)um | |
Screen | Screen Diameter :Ø312mm, Effective Range ≥ Ø400 (with "* " Reticle) | ||||
Rotary Range of Screen: 0~ 360° | |||||
Resolution Rotary Indicator: 1' or 0.01° | |||||

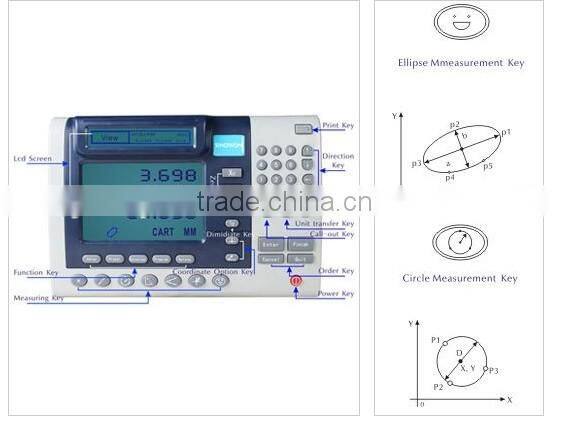

Digital readout | DP100 (561-101) Multifunctional Data Processing System | ||||
Illumination | Surface and Contour Illumination:24V/150W halogen lamp | ||||
Power | AC110V/60Hz; 220V/50Hz, 400W | ||||
Cooling | Forced Cooling (3-axis-fans) | ||||
Gross/Net Weight | 200/150Kg | 210/155Kg | 225/165Kg | 220/170Kg | |
Dimension(LxWxH) | 780 x 530 x 1150mm | 780 x 530 x 1150mm | 780 x 530 x 1150mm | 780 x 530 x 1150mm | |
Packing dimension | 990 x 765 x 1340mm | 990 x 765 x 1340mm | 990 x 765 x 1340mm | 990 x 765 x 1340mm | |
Optional Accessories | Optional Accessories | Optional Accessories |
Measuring Software | VX12-20x Objective | Rotary Table RT1 |
Foot-Switch ST150 | VX12-50x Objective | Rotary Table RT2 |
Digital Readout DP300 | VX12-100x Objective | Working Cupboard ST02 |
Edge Detector SED-300 | Over-Chart ST140 | Printer Paper |
Holder Clamp | V-shape Clamp | Swivel center support |
