Specifications

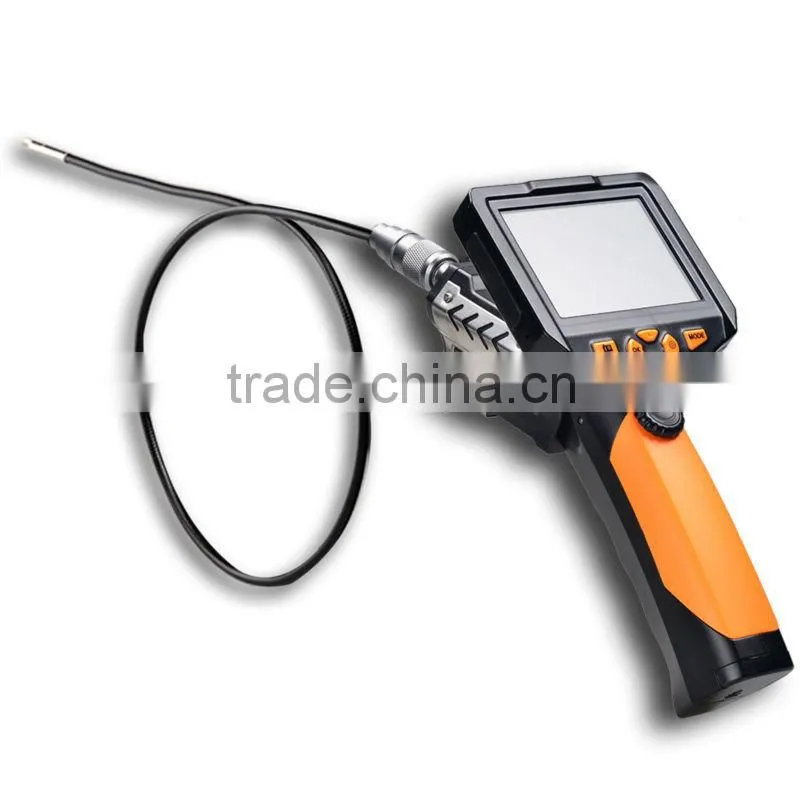

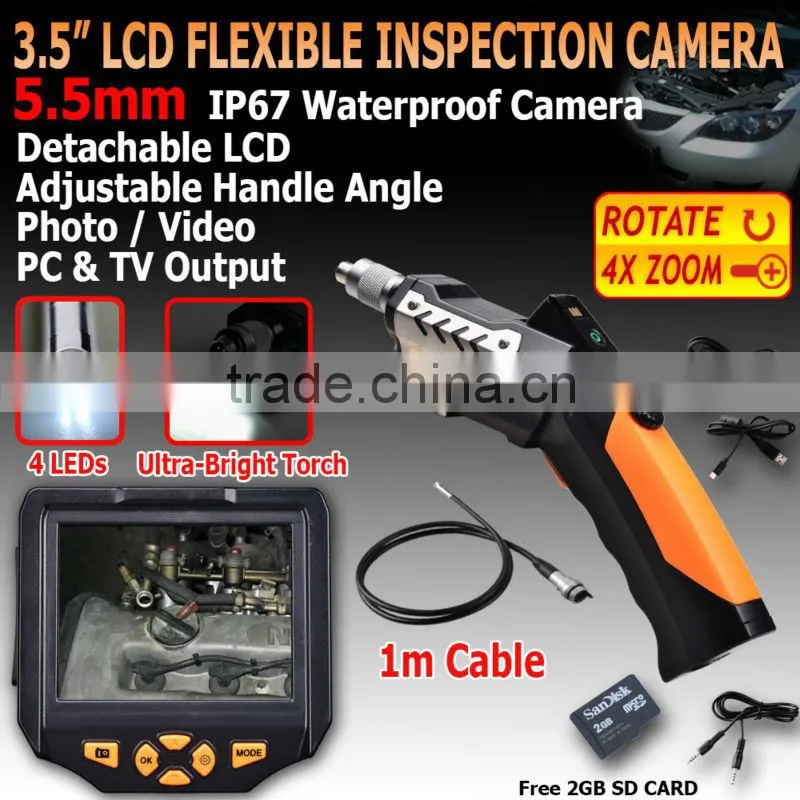

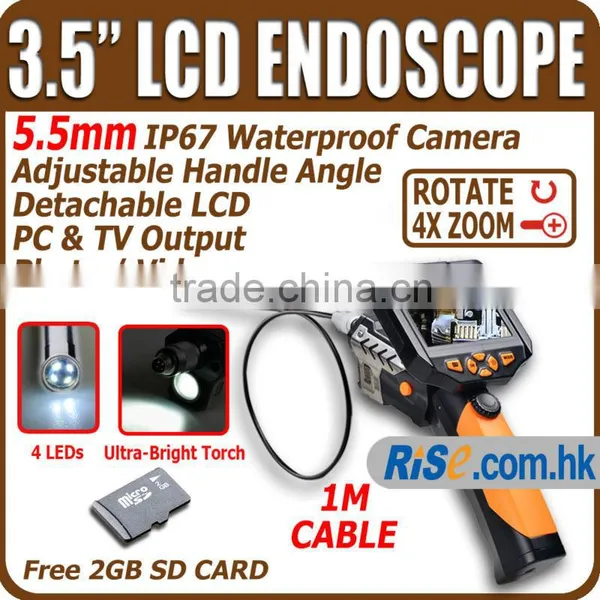

3.5" LCD Inspection Camera with ultra-thin 5.5 mm Camera(1M Flexible Tube)
Brief Description
This Large 3.5" Color LCD Video Inspection Camera uses optoelectronic technology to investigatehard-to-reach areas. Compared with traditional inspection camera, the built-in 1W LED flash light by well-known manufacturer CREE provides a powerful light source to the surroundings which enables you to work in dark areas much more conveniently and easily. In addition, the camera head equips 4 pcs of adjustable high-intensity LEDs (with brightness control) to illuminate the inspection areas specifically.
The LCD receiver can be detached from the main unit for remote viewing up to 1.5 m (4.95 feets)away with the connecting cable. It supports 4X zoom and 360° image rotation & flip over. You can capture images (JPG) up to 3 megapixels or videos (AVI) up to 720p HD. You can conveniently save your data in MicroSD card or output to TV and PC by Video Out and USB interface respectively.
The 1 m (3.3 feets) flexible tube with ultra-slim 5.5 mm camera head is waterproof so that you can inspect areas under water, gaps and holes especially with narrow openings. Ergonomic and robust designs of this product are including one-hand operation, multi-language menu, adjustable handle angle, and stainless steel shield.
This inspection camera helps you to diagnose broken part, weld point and released parts easily to save time and increase productivity. It has many applications including HVAC inspection, vent pipe, machine equipment, engine, cable routing, automotive / boat / aircraft inspection, etc.
Features
- Capable to investigate dark and hard-to-reach areas
- Built-in 1W LED flash light by CREE
- Ultra-slim 5.5 mm camera head with 4 pcs of adjustable LEDs
- Large 3.5" color LCD monitor with high resolution and visibility
- Detachable LCD receiver for remote viewing with cable
- 4X zoom and 360° image rotation & flip over
- Capture images (JPG) up to 3 megapixels or videos (AVI) up to 720p HD
- Menu in 7 languages
- IP67 waterproof probe and camera head
- MicroSD slot, Video Out, USB interface
- Ergonomic and robust designs
- Flexible, portable, easy to operate and stable performance
- Ideal for industrial such as automotive, electrical, plumbing, heating, ventilation, air conditioning, refrigeration and general home inspection, building and home construction, aviation, vehicles maintenance
Specifications
- Light Source: 1W LED flash light
- Display: 3.5" color LCD with 320×240 pixels resolution
- Video Resolution: 320x240 / 640x480 / 1280x720
- Image Resolution: 640x480 / 1600x1200 / 2048x1536
- Menu Language: English, Chinese, French, German, Spanish, Russian and Japanese
- Data Storage Media: 2GB MicroSD card included (supports up to 32GB)
- Camera Head: Ultra-slim 5.5 mm diameter with 4 pcs of adjustable LEDs
- Viewing Angle: 60°
- Depth of Field: 80mm ~ infinity
- Probe Length: 100 cm
- Probe and Camera Head Protection: IP67
- Operating Temperature: 0 ~ 45 °C (32 ~ 113 °F)
- Power Source: 4 x AA batteries (not included)
- Max Battery Life: 4 ~ 5 hours
- Dimension (Grip): 260 (L) x 95 (W) x 80 (H) mm (excluding the probe)
- Weight: 445 g (excluding the probe)

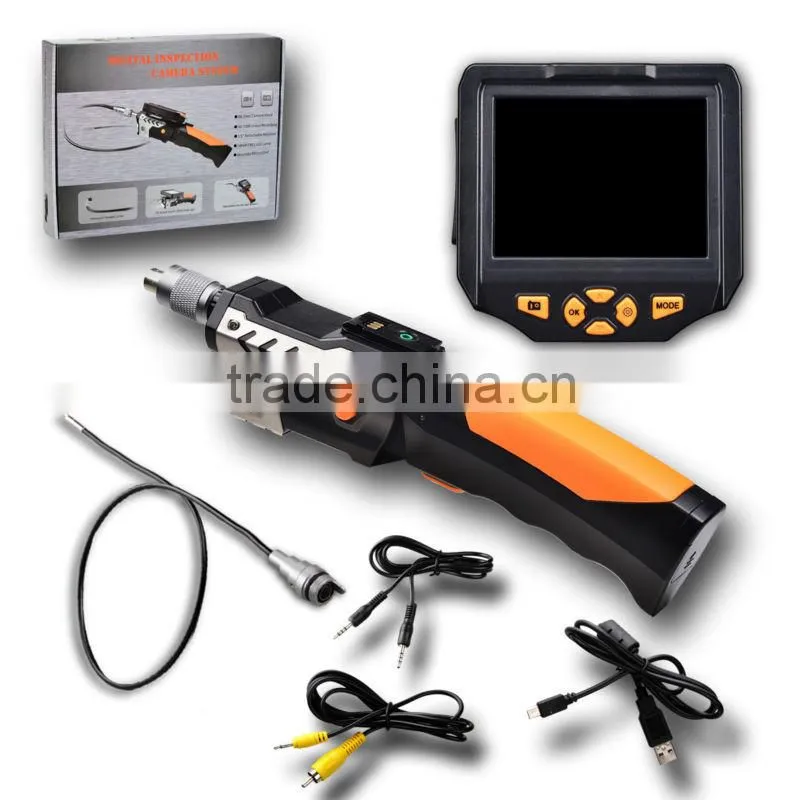

One Set Included
- 1 x Inspection Camera
- 1 x 3.5 inch LCD Receiver (detachable from Camera Grip)
- 1 x 1m Probe with Waterproof 5.5mm Camera Head
- 1 x Remote Connecting Cable
- 1 x USB Cable
- 1 x Video Cable
- 1 x 2GB MicroSD Card
- 1 x MicroSD to SD Card Adapter
- 1 x Instruction Manual
- Standard Factory Package
