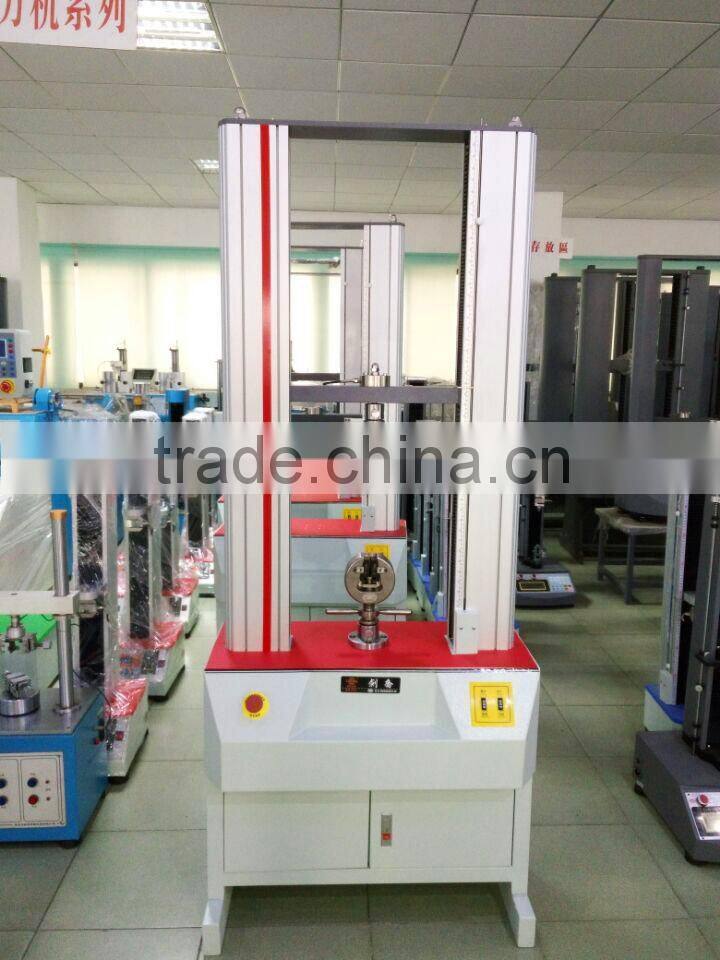

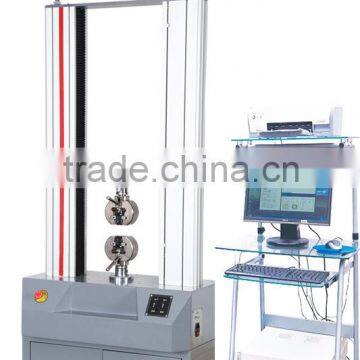

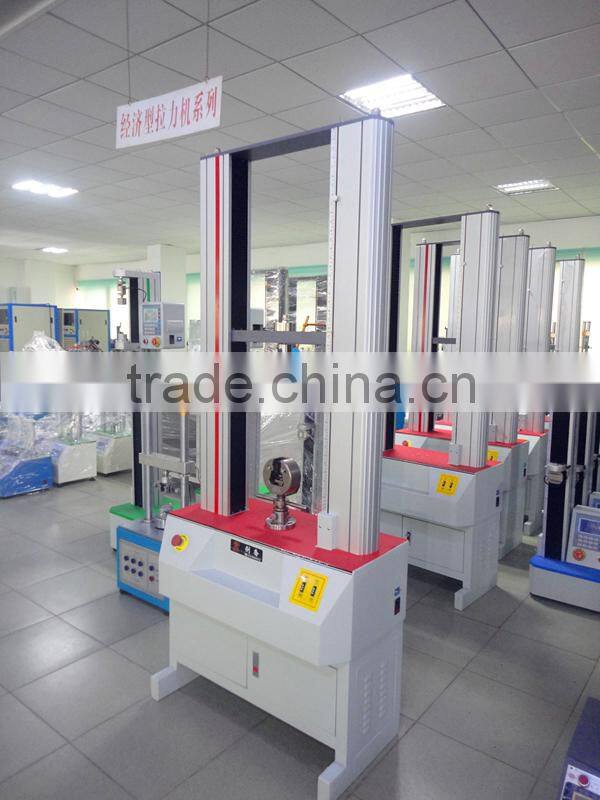

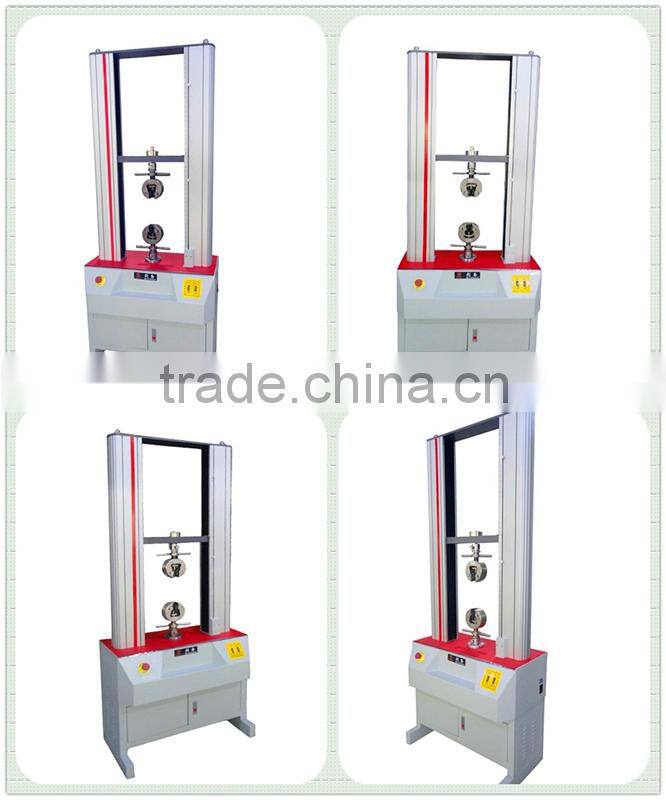

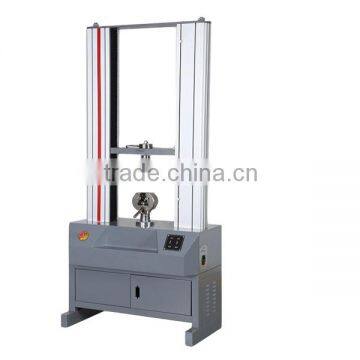

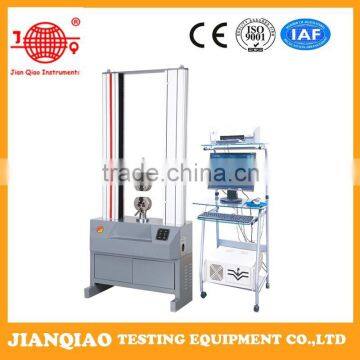

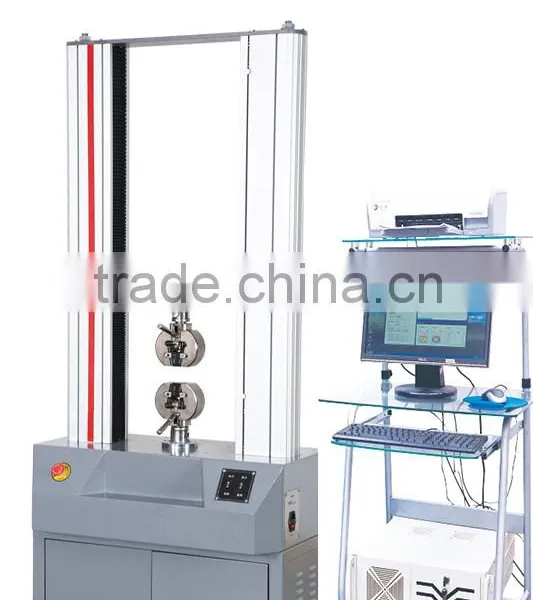

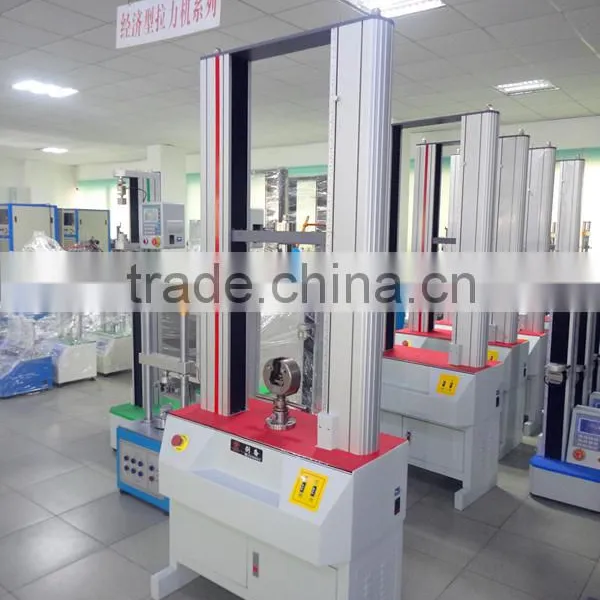

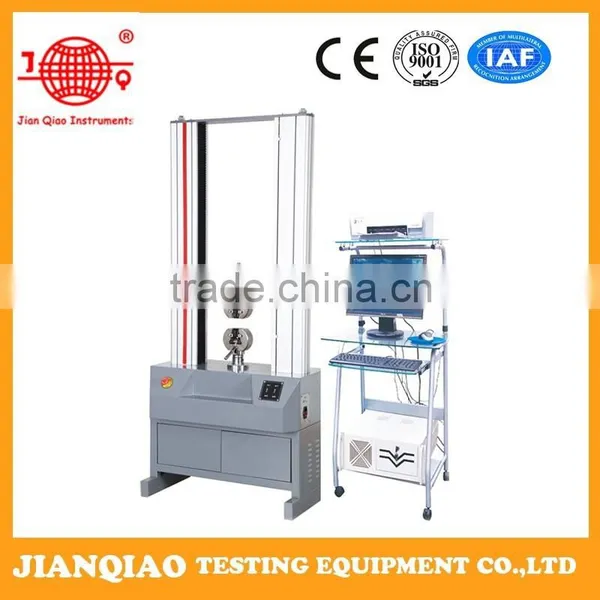

Packaging Strength Testing Machine
1. Application for Packaging Strength Testing Machine :
JQ-998 computerized tensile testing machine is designed and manufacture according to ASTM, ISO, DIN, GB and other international standards. Applicable for wide range of material for tension,
compression, bending, shearing and low cycle test. Suitable for metal, rubber, plastic, spring, textile, and components testing. It is widely used in the corresponding industries, research and development,
test institutes and training centers etc.
3. Electrical measurement and control system for Packaging Strength Testing Machine
1. With protect function of overload,over current, over voltage, displacement limit, emergency stop, etc .
2. The controller can control more load sensor, high integration, stable and reliable, easy to adjust.
3. When finished testing, automatic stop.
4. Control system with programmable amplifier A/D conversion, digital I/O, counting and pulse happen (PWM), and other functions in one
5. Mechanical zero setting, automatic force measurement, zero setting, calibration and save, highly integrated control circuit
4.Software and software interface for Packaging Strength Testing Machine
1. Use windows working platform, set all parameter with dialog forms and operate easy;
2. Using a single screen operation, do not need to change the screen;
3. Have simplified Chinese and English three languages,switch conveniently;
4. Plan test sheet mode freely;
5. Test data can be directly appeared in the screen;
6. Compare multiple curve data through translation or contrast ways;
7.With many units of measurement, the metric system and british system can switch;
8.Have automatic calibration function;
9.Have user-defined test method function
10.Have test data arithmetic analysis function
11. Have the function of automatic magnification, to achieve the most appropriate size of graphics;
12. Output the test results in WORD,EXCEL,PDF format.
5. Technicial Parameters for Packaging Strength Testing Machine
Model |
JQ-998 Packaging Strength Testing Machine |
Capacity(optional) |
50N,100N,500N,5KN,10KN,30KN |
Unit(Switchable) |
Kg, LB,N ,KN |
Load Resolution |
1/200,000 |
Load Accuracy |
±0.5% |
Stroke(exclude the grips) |
1000mm |
transmission mechanism |
servo motor+ planetary-gear transmission+ball screw |
Test speed |
0.01~500mm/min(adjustable) |
Speed Accuracy |
±0.5% |
Resolution |
0.001mm |
Sample Rate |
400times/sec |
Motor |
step servo drive syetem |
effective width |
420mm |
Weight (approx) |
200kg |
Power |
220V,50~60hz, 10A or specified |

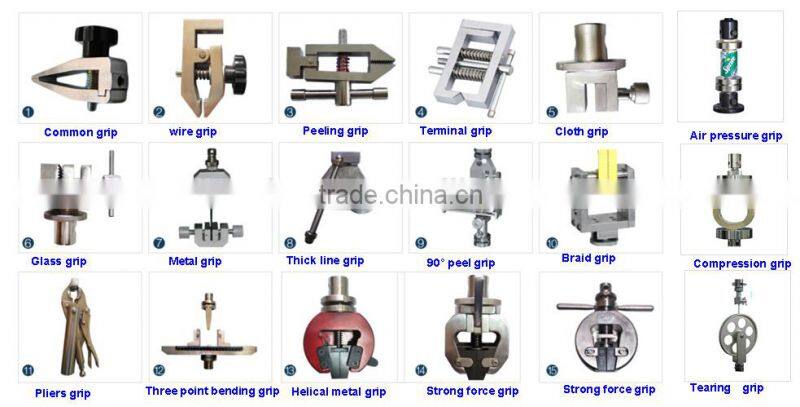

5. Grips for Tensile testing machine for Packaging Strength Testing Machine

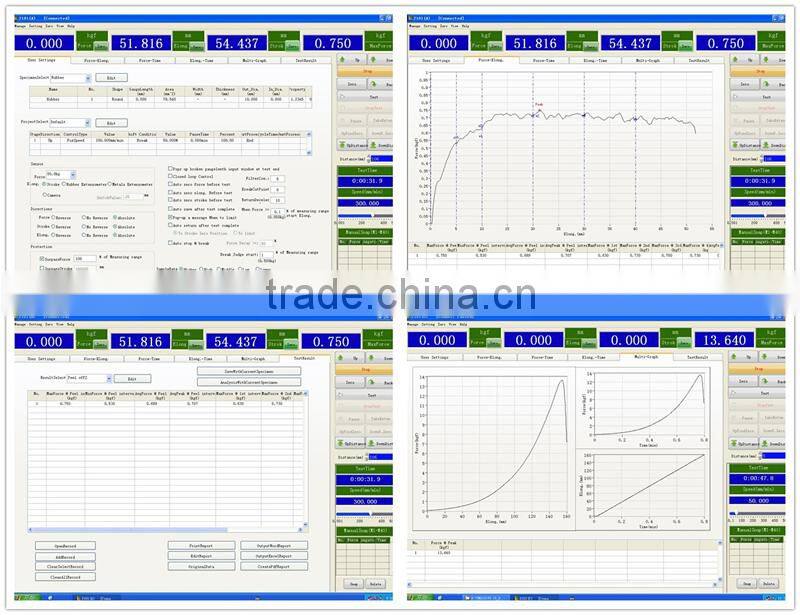

6. Software for Packaging Strength Testing Machine

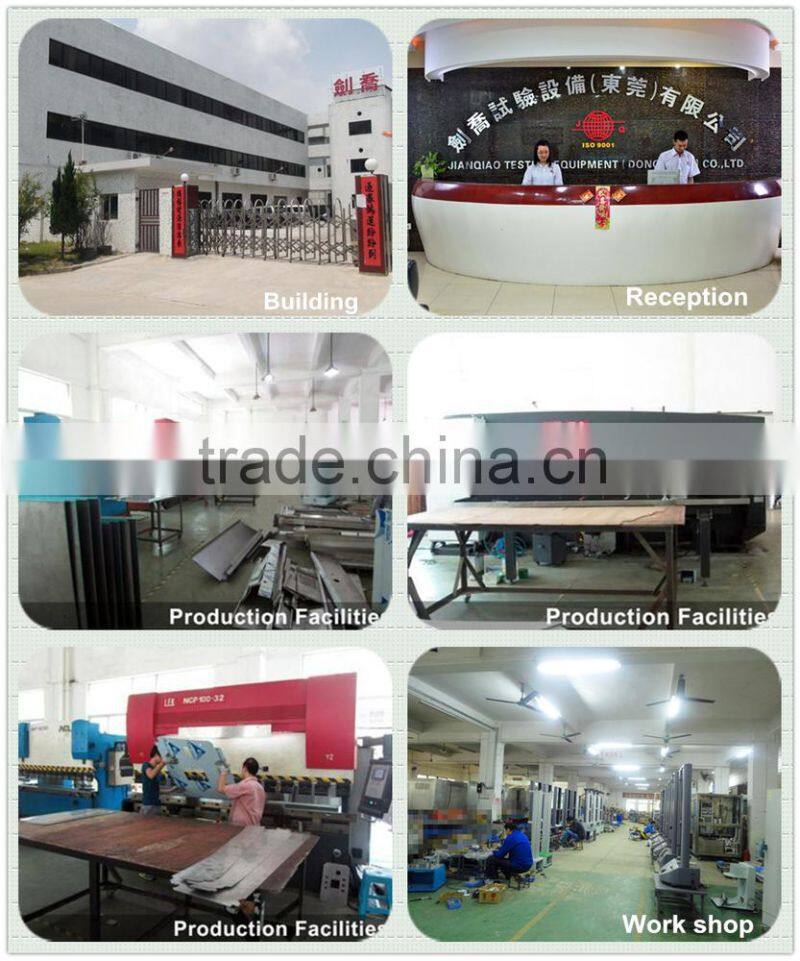

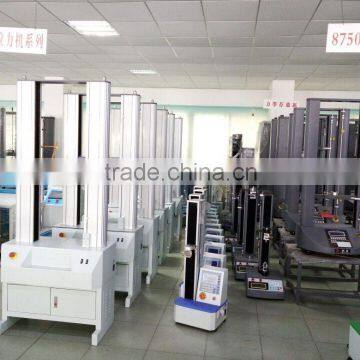

Dongguan Jianqiao Testing Equipment Co.,Ltd. is a China base manufacturer and exporter of testing equipment. It is a high-tech company in metal and non-mental materials testing,measuring,and analytic industries. We are specialized in R&D,production,focus more on quality and after-sales service.
We always try our best to devote ourself in providing high quality products which based on our innovation,exellent technoligy team,and strict production control system.

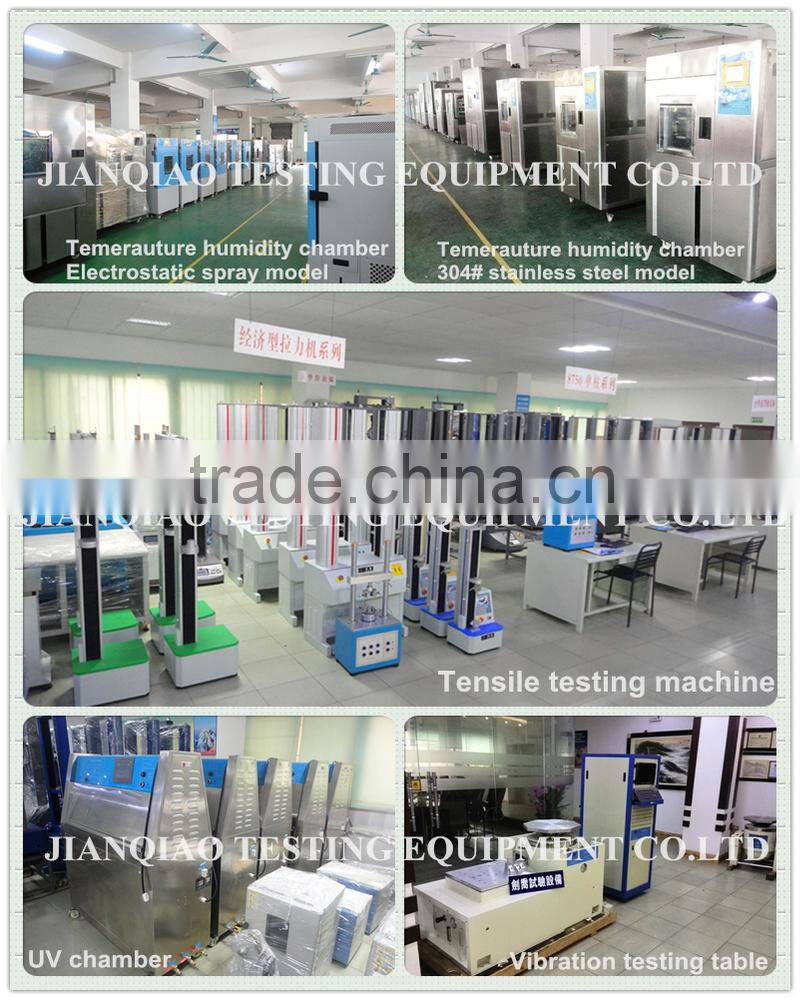

Our Products
ISO 9001 Certificate

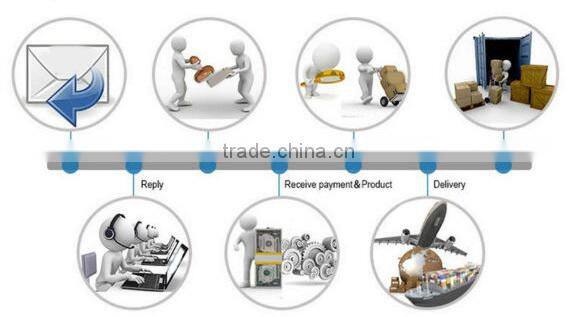

-- 24 Hours online service for your consult
-- Help choose right model with series of service,person, and adviece
-- Give you best offer
-- Provide favourable discount
-- Meet your demand
-- 1-year warranty service
-- Technical Egineer are avalible for oversea trainning
If any questions or need more information,please feel free to contact us.
Warmly welcome your visit to our factory !
