1000w UPS Pure Sine Wave Inverter UPS Inverter Automatic Function

1000w UPS Pure Sine Wave Inverter UPS Inverter Automatic Function thumbnail-1
1000w UPS Pure Sine Wave Inverter UPS Inverter Automatic Function thumbnail-2
1000w UPS Pure Sine Wave Inverter UPS Inverter Automatic Function thumbnail-3
1000w UPS Pure Sine Wave Inverter UPS Inverter Automatic Function thumbnail-4
1000w UPS Pure Sine Wave Inverter UPS Inverter Automatic Function thumbnail-5
1000w UPS Pure Sine Wave Inverter UPS Inverter Automatic Function thumbnail-6
1000w UPS Pure Sine Wave Inverter UPS Inverter Automatic Function photo-1
1000w UPS Pure Sine Wave Inverter UPS Inverter Automatic Function photo-2

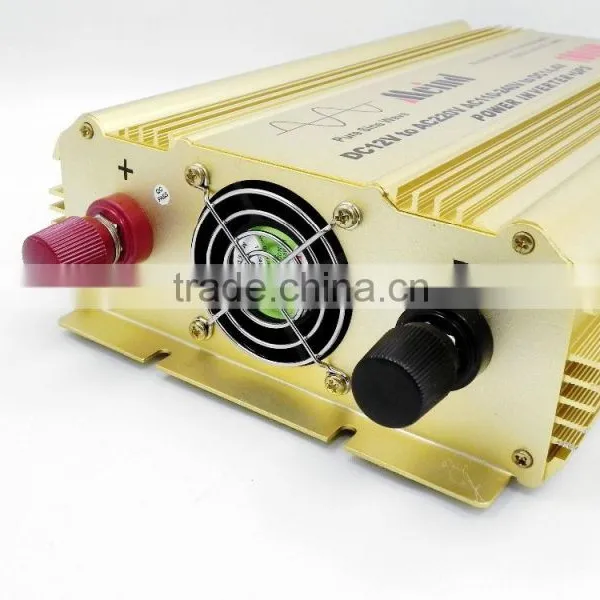

1000w UPS Pure Sine Wave Inverter UPS Inverter Automatic Function photo-3

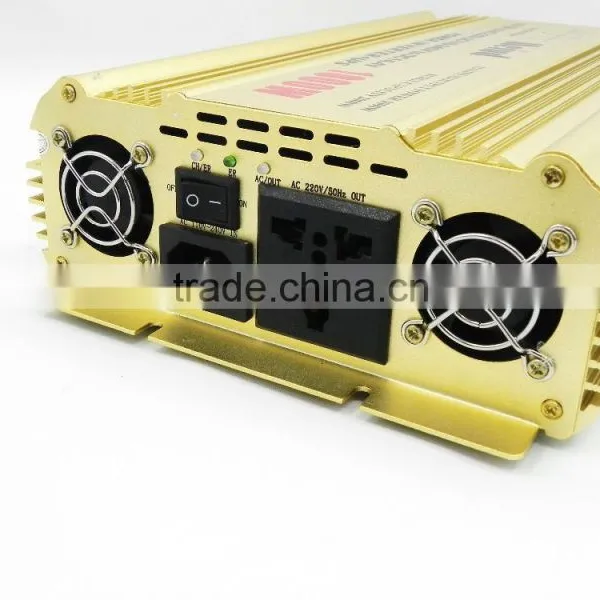

1000w UPS Pure Sine Wave Inverter UPS Inverter Automatic Function photo-4

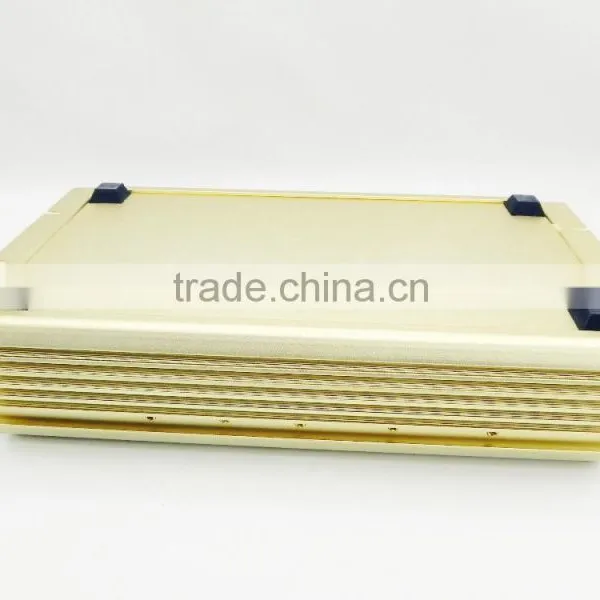

1000w UPS Pure Sine Wave Inverter UPS Inverter Automatic Function photo-5

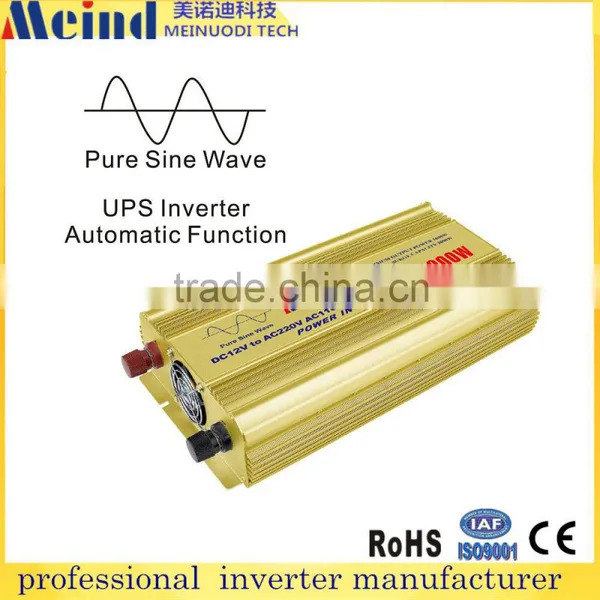

1000w UPS Pure Sine Wave Inverter UPS Inverter Automatic Function photo-6
US$ 79.9 - 89.9 MOQ: 8 Pieces
Key Specifications
Get Latest Price
Output Frequency:
50/60Hz
Contact Supplier Request Quote Chat Now
Shenzhen Meind Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Output Frequency 50/60Hz



  1000w UPS pure sine wave inverter UPS inverter automatic function



Meind Power Inverter widely use in the car, on the boat, transfer 12V /24V DC power directly to 110V or 220V AC power for supplying the Laptop computers, camera, cell phones, camcorders, televisions, electric shaver, car refrigerator and other electronic devices when outdoor for tour, camping and medical treatment.

The power inverter has advantages of Compact and light weight, practical and prefect modeling, and its self-supplied auto cigarette lighter plug can easily connect to a vehicle's battery. you can get 220v (110V) AC direct from the car power inverter output socket.



Product Description



1000w UPS pure sine wave inverter UPS inverter automatic function

1)Input Voltage:DC12V(10—15V),DC24V(18-28V)

2)Output Voltage:AC220V(AC100V,AC110V,AC120V,AC240V)

3) Continuous Power output: 1000W

4)Peak Power:2000W

5)Output Wave form:Pure Sine Wave

6)Frequency output:50Hz,(60Hz) ±4%

7)Availability Power:   ≥90.5%

8) LOW Voltage Range:

9) High Voltage Range: >DC14.8V/DC28.5

10) No Load current: ≤0.4A

11) Soft-Switch Function: Yes

12) Short-Circuit Protection: Yes

13) Reverse Protection: Yes (+/ -)

14) Over-Load Protection: >1000W

15) High-Temperature Protection: >70℃ will turn off, and re-boot < 45℃

16) High-Voltage Protection: DC16V±1V

17) Low-Voltage Protection: DC10.5V±0.5V

18) Auto Reboot Function: Yes

19) Fuse: Built-In 2X40A

20) Cooling Fan: Yes( Automatic: when temperature>45℃, will auto-start to cooling, and after <40℃ will off)



Input voltage

DC12V/24V

Output voltage

AC220V,230V,240V(100V,110V, 120V)

Continuous Power

100W

Peak Power

2000W

Wave type

Pure sine wave

Charger function

AC110-240V to DC13.8V10A

With cooling fan

Yes

Protections

1.Short-circuit               2.Over-load                             3. Over-Voltage            4.Low-Voltage                         5 Over-heat

6. Reverse protection





[Product Protections]



[1]Over Load Protection:

When connected load exceeds the power inverter rated power watts (W), the inverter will automatically shut down to stop the output.

[2]Over Heat Protection:

As the internal temperature of the power inverter or the ambient temperature is too high, the inverter output will automatically stop to ensure the safety of electrical equipment.

[3]High-Voltage Protectionion:

When the DC input voltage exceeds the normal range of the power inverter will automatically shut down to stop the output voltage is too high note when there may be damage to the machine.

[4]Low-Voltage Protection:

When the battery or power supply voltage is too low, the power inverter will stop output automatic shutdown protection to protect the battery or power supply is not compromised.

[5]Reverse Protection:

When the car inverter link reverse to battery, inverter fuse will be blown, without damaging the product itself, you need to replace the fuse.

[6]Short Circuit Protection:

When the load is connected severe short-circuit fault, the inverter will automatically shut down to stop the output.



[Multitudinous Output Socket]

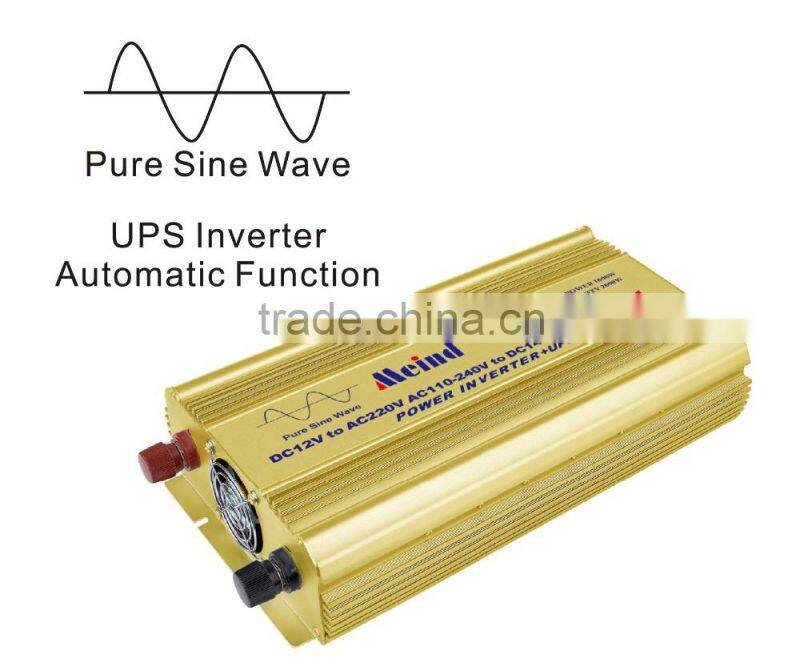

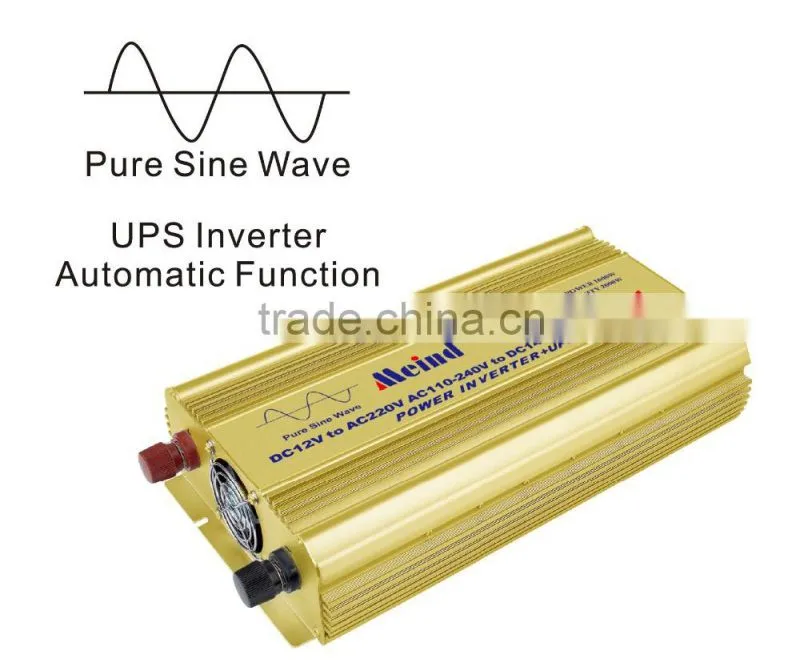

1000w UPS pure sine wave inverter UPS inverter automatic function

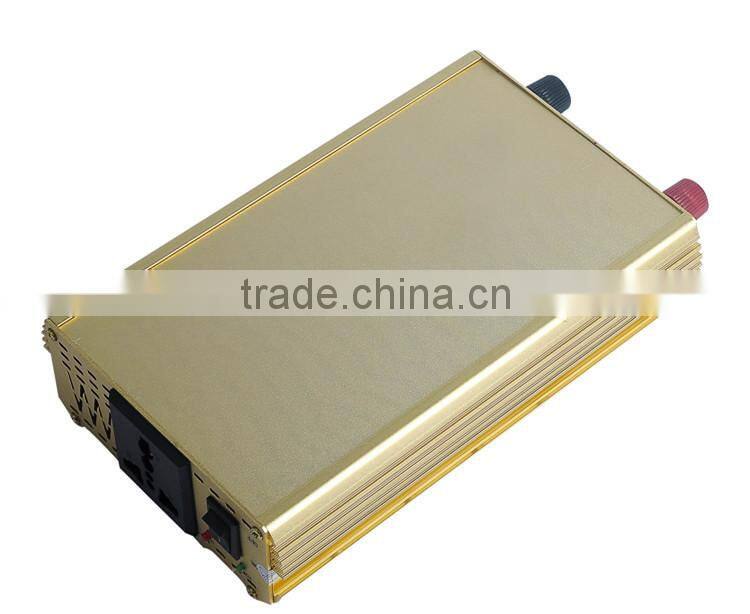

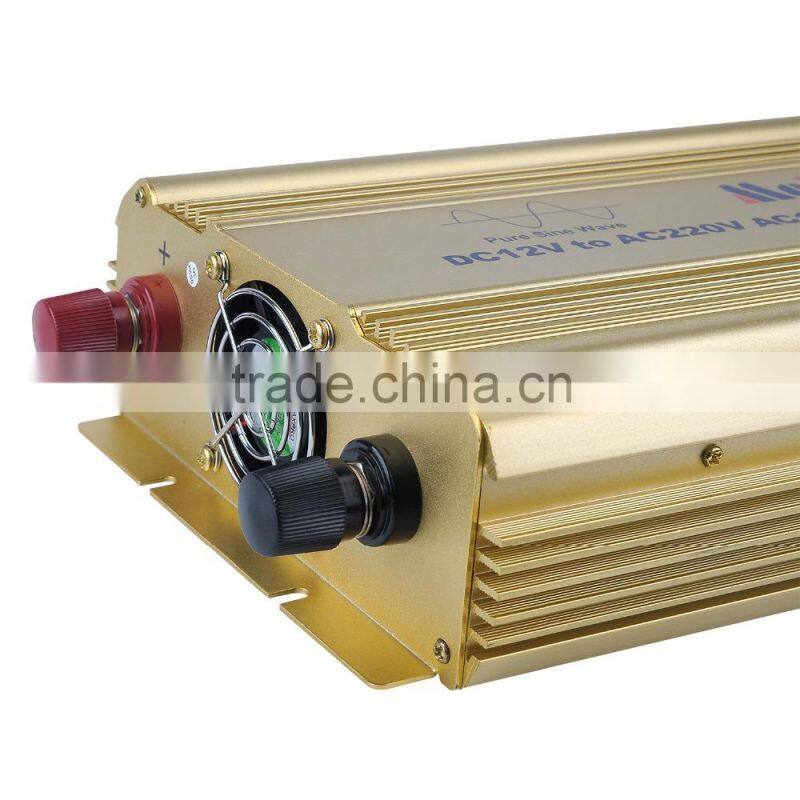

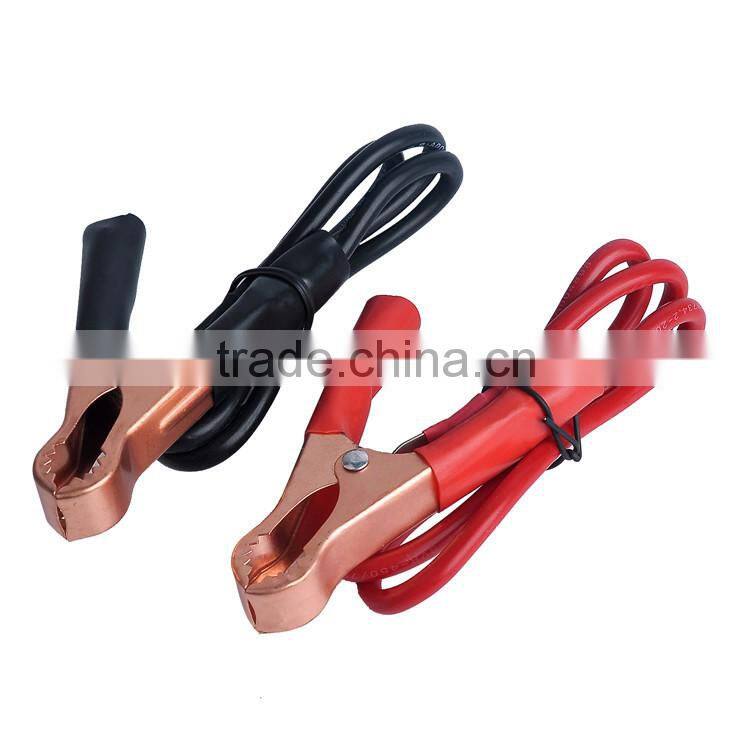

Product  Pcitures:

1000w UPS pure sine wave inverter UPS inverter automatic function



1000w UPS pure sine wave inverter UPS inverter automatic function



1000w UPS pure sine wave inverter UPS inverter automatic function1000w UPS pure sine wave inverter UPS inverter automatic function









Packaging & Shipping



1. Packing:                    Gift Box

2. CTN                           8pcs

3. (cm)/Dimension      51*39*55.5 CM

4. Weight:                     2.4kg

5. Net weight (N.W)     19.0kg

6. Gross weight (G.W)    24.0kg



 *Shipping method:



1. Sample order: by courier, such as DHL, FedEx, UPS, TNT etc. Door-to-Door;

2. Buck order: By Air or by Sea,Airport/ Port receiving;

3. Our customers specify the freight forwarders or negotiable shipping methods!

4. Delivery Time: 2-3 days for samples; 6- 15 days for batch goods.



Our Services



1. Supply OEM & ODM service. Support customer's logo & brand printing.

2. keep you get the best & most reasonable prices

3. All your questions related to our products will be replied in 24 hours.
4. Fast delivery time, good after-service.
5. Stictly quality control: 100% QC inspection Before Shippment;
6. Product guarantee: 12 months



Company Information







FAQ





Q1: Why choose us?Our speacial advantages:

  1. 1.   We are professional manufacturers for 10 years, the quality is very stable and good.
  2. 2.   Our factory passed ISO9001 authentication with standard management & operating system.
  3. 3.   Especially for OEM & ODM projects, we can well coordinate the connection between client and our R&D team, to realize client’s original idea up to total satisfaction.



Q2: Can I have a sample order?

 Yes, if we have some stocks on hand.



Q3: What’s your terms & conditions for the order?

1. Payment term: T/T, Western Union, Paypal, Escrow and L/C at sight

2. Price term: FOB Shenzhen, FOB HK, EX-WORKS, CIF, C& F price etc.



Q4: What’s your quality assurance?





Q5:  How to contact us?

1.  Send your inquiry as below, click "send" now!

2. Add our skype talking on line: Skype ID: LLD6899

3. Or call us right now: Tel: (86 755) 2879 3797 ext.813
