Specifications
5 in 1 Ultrasonic Distance Meter / Metals / AC Wires / Laser LinerBrief Description
This 5-in-1 multifunction gauge can measure distance, area & volume and detect metalsand AC wires. It can also be used as laser liner tool by emitting laser beams on the surface of objects. The new design of 180º adjustable sensor head and equipped vertical & horizontal spirit bubbles will make your works more easy & convenient.
Distance Measurement: It can effectively measure object's distance from 0.5~15 meters (1.6~49 feet) by ultrasonic technology. It has “+”, “-”, “x” button for addition / contract / multiply distance values, and perform area and volume calculation.
Metal & AC Wires Detection: The can detect the position of joists, AC live wires and Metals. It will calibrate automatically after turning on. Once approaching the edges of joists, AC live wires or metals, the scanner will sound and you can mark the central position of the detected surface through the marker slot on top of the tool with pencil. The function of alarming for AC live wires will alert you of noticing whether there are AC live wires behind the wall.
Laser Liner: The tool can generate a visible red laser line on the surface of objects. It is convenient for you to choose the desired position during decoration, renovation & construction works.
This is an excellent tool for building and decoration industries such as real estate agent, upholstery designer and craftsman.

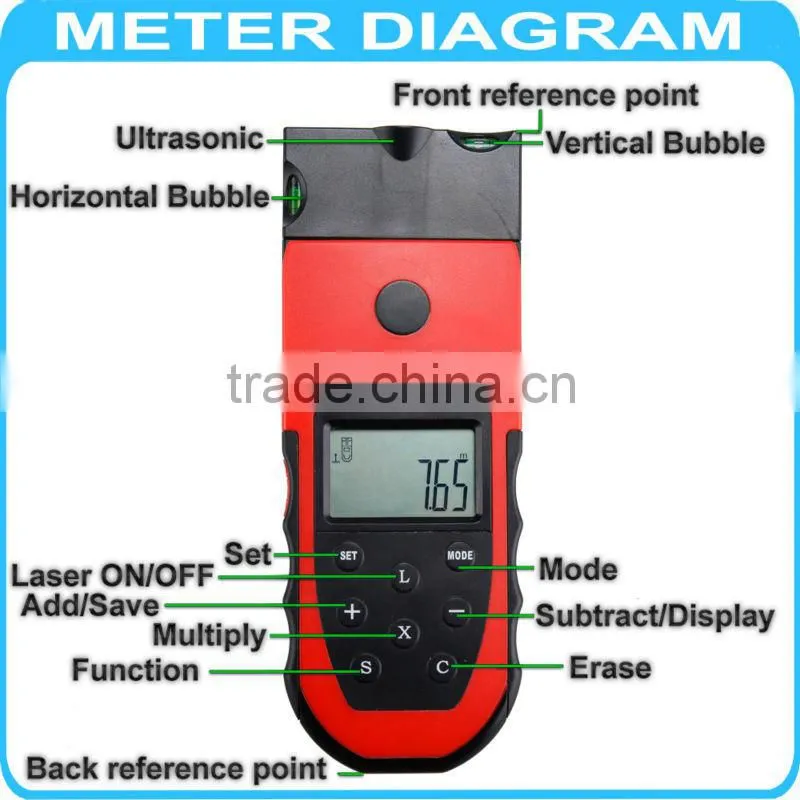

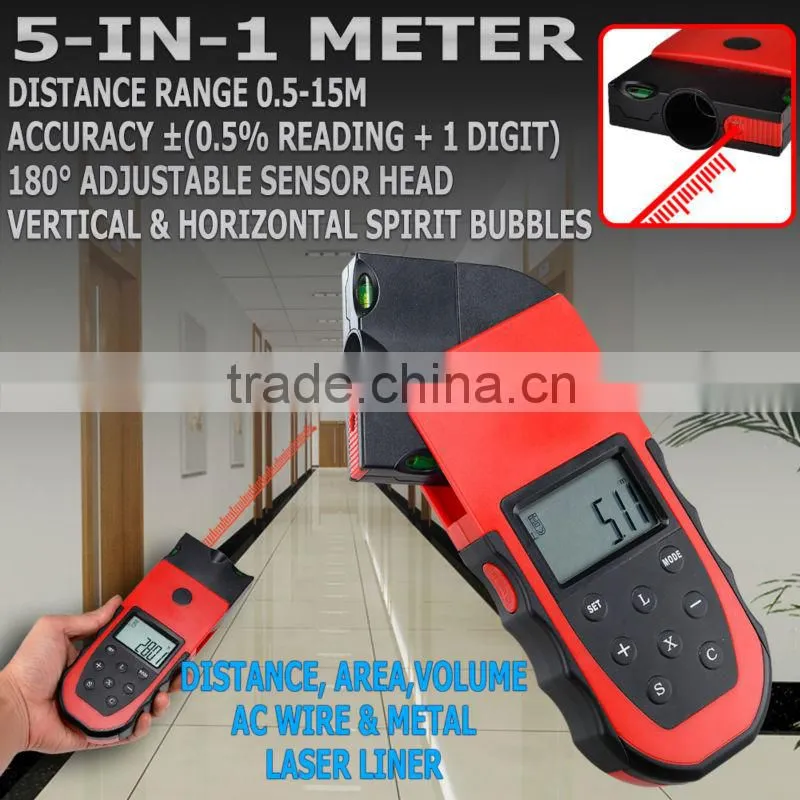

Features
- 5-in-1 Multifunction Gauge: Distance, Area, Volume, Metal / AC Wires & laser liner
- 180º adjustable sensor head
- Wide distance measuring range from 0.5 ~ 15 m (1.6 ~ 49 feet)
- Calculation for area and volume
- Built-in memory for area and volume calculation
- Switchable between imperial & metric units
- Instant or continuous distance measurement
- Able to store current reading, display and erase the stored reading
- Able to select the reference point of distance measurement
- Vertical & horizontal spirit bubbles equipped
- Low battery indication
- Auto power off
Specifications
Distance measurement mode |
Range: 0.5m---15m (in open field) |
|
Accuracy: ±(0.5% reading + 1 digit) (in still air) | ||
Resolution: 0.01 | ||
Detection |
Metal scan mode |
Iron pipe of Φ20mm:≥30mm |
AC scan mode |
Typical depth of (≥30mm) for 90-250V at 50-60Hz |
|
Operation condition |
Temperature |
0-40 |
Humidity |
Relative humidity: <75% |
|
Storage condition |
-20 – 50 ºC |
|
Battery |
6F22,9V (not included) |
|
Dimension |
188 x 70 x 27 mm |
|
One Set Included
- 1 x 5-in-1 Multifunction Meter
- 1 x Instruction Manual
- Standard Factory Package
