VMS Measurement system Quality Choice
- 50 Set / Sets per Month
- SHENZHEN
- T/T Credit Card
Product Details
Place of Origin: | Guangdong, China | Brand Name: | JIANQIAO | Model Number: | VMS-3020 |
Power: | Electronic | Usage: | Other, Measurement system, Measurement system |
Product Description

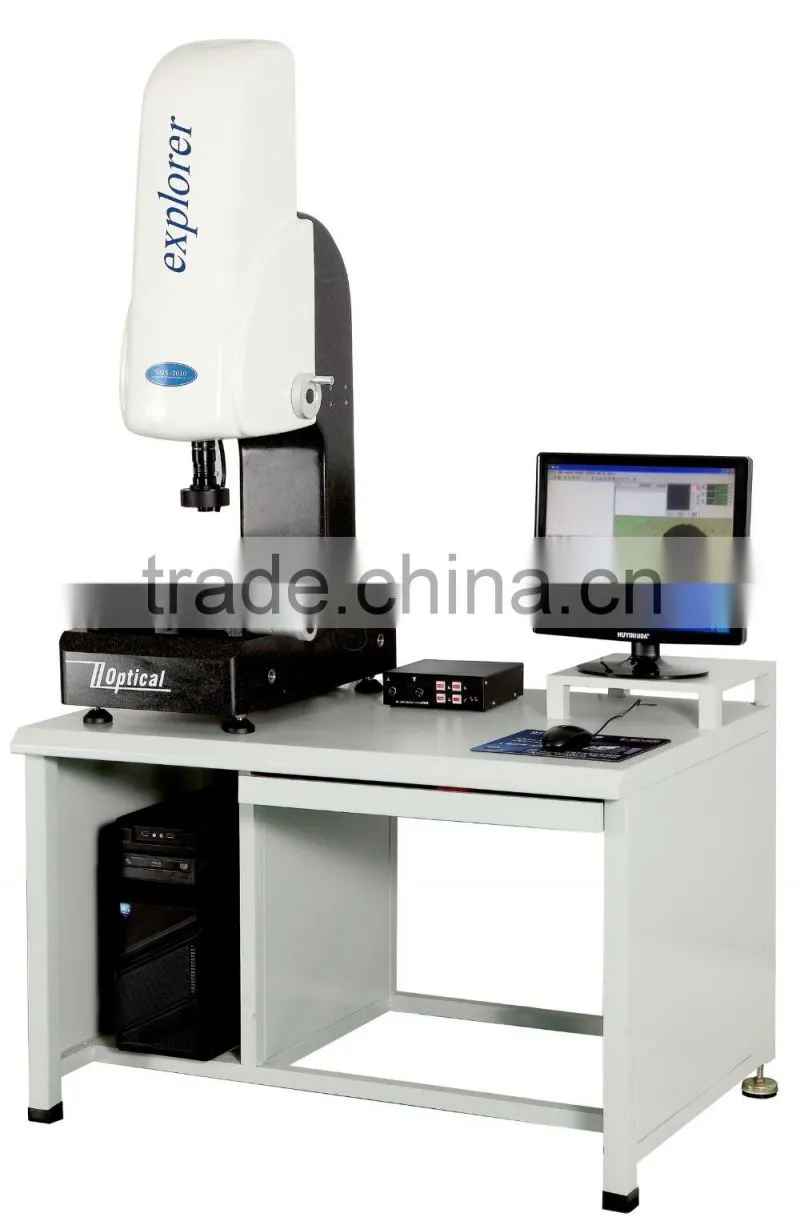

VMS Measurement system
1. Application for Measurement system

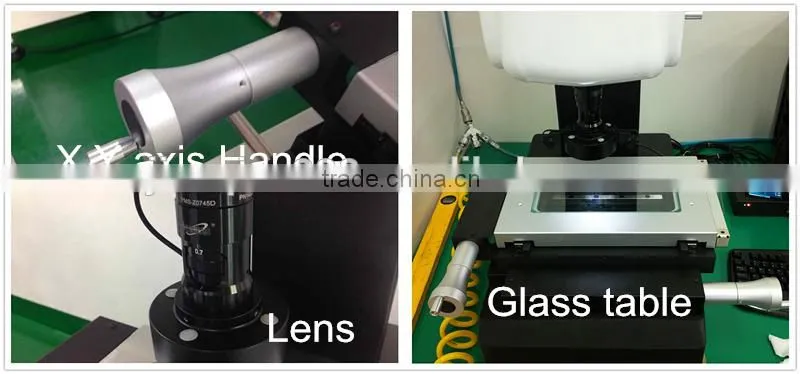

Measurement system ,Coordinate Measuring Instruments, Automatic Coordinate Measuring Machine is a precise and effective non-contact optical measuring instrument. It is composed of a series of accessories, such as color CCD Camera & adapter, zoom lens capture card, linear scales, high precision worktable, electronic motor, PC and monitor.
The QuickMeasuring software is able to control the brightness of 40-division light source, auto-focus, X,Y and Z-axis auto-movement. TXT, Excel report output immediately, dxf drawing input quickly. The operator can setup auto-program-run in light of different measurement case foe different work pieces, it improve the operator’s working efficiency effectively and reduce the enterprise’s cost of human resource obviously.
It is mainly applied in 3D measurement field, such as: PCB, mobile phone fittings, linker, machine fitting, precision fixture, and it can measure height in video solution too.
It is a necessary instrument for 3D noon-contact measurement in college, research institute and metrology department.
2. Key Features for Measurement system
> 00 grade marble pedestal work table. Guarantee instrument has a very high stability and rigidity. (optional:import aviation aluminum work surface).
>Laser indicator Indicates the measurement position, rapid positioning.
>CCD with high quality Japanese American NAV optical Lens.
>Precision optical ruler,resolution of 0.5um,repeat accuracy of 0.001mm.
>Powerful measurement software
>Optional HD ITO/TFT special conductive film imported lenses CCD optional English RENISHAM touch probe group
3. Technical Parameters for Measurement system
| 1XCCD adapter(standard) | 0.5XCCD adapter (option) | Working distance | ||
Zoom lens | 0.7~4.5X | 0.7~4.5X | |||
Zoom lens | Digital magnification | Visual field | Digital magnification | Visual field |
|
0.5X(option) | 15~95X | 20~3.2mm | 7.5~48X | 40~6.4mm | 175mm |
1X(standard) | 301~90X | 10.6~106mm | 15~96X | 20~3.2mm | 96mm |
2X(option) | 60~380X | 5~0.8mm | 30~190X | 10.6~1.6mm | 32mm |
4. Quickmeasuring software for Measurement system
It’s used with optical comparator. It can collect the scale coordination in PC keyboard, DRO panel and foot switch. Using the input point, it can be measured the basic graph element and construct advanced PC communication easily. It deduces human error and improves the operators working effectively.
Key Functions:
- Measurement of basic graph: point,line,circle,arc,
rectangle and cirque...and so on
- Axis-skew and coordinate-shift
- Element construction: construct the center,intersection,
midpoint,line,circle and angle,and so on
- Save as DXF and edit in Auto CAD.
- Multi-point measurement.
- Excel and TXT report.
- English operation interface, other language available.
- Zoom in, Zoom out, Move,Print,Select,Cancel select, Delete.
- Tolerance setup.
- Size and angle label.
- Scale calibration
- Q-axis record.
-Update forever and OEM available.
- Scan the sample image save as DXF.file
Dongguan Jianqiao Testing Equipment Co.,Ltd. is a China base manufacturer and exporter of testing equipment. It is a high-tech company in metal and non-mental materials testing,measuring,and analytic industries. We are specialized in R&D,production,focus more on quality and after-sales service.
We always try our best to devote ourself in providing high quality products which based on our innovation,exellent technoligy team,and strict production control system.
Our Products
ISO 9001 Certificate
Delivery:Ship from Shenzhen by sea.
Packaging Details: packed in one fumigated heat treating wooden package. Customers's requirements are also allowed.
1.Pre-service
24 Hours online service for your consult
Help choose right model with series of service,person, and adviece
2.Middle service
--Give you best offer
--Provide favourable discount
--Meet your demand
--Choose payment term you convienent
--Promptly production and delivery, inform you in time
--Provide invoice value as you like to decrease your tax
3.After-sale service
--1-year warranty service
--Technical Egineer are avalible for oversea trainning
--Free change for some parts
--Remote control technical consult
--Maintenance plan
4.Good Packaging:
Simulation Animatronic Customer Triceratops are covered with air bubble film before put them into the wooden case, which not only has good shock absorption, impact resistance, heat sealing and also has the advantages of nontoxic, odorless, moisture corrosion, good transparency etc.
Why Choose Us?
1.We are professional test equipment manufature in china,has excellent experience.
2.We have advanced machine equipment, cost savings.
3.We supply 24 hours online service to slove your every question.
4.We have the best knowledge about the drying machine in USA,UK,CANADA,SOUTH AFRICA,INDIA,AUSTRALIA,ETC.
If any questions or need more information,please feel free to contact us.
Warmly welcome your visit to our factory!
