Specifications
PET Bottle Filling Machine/Liquid Bottling Machine1.Fully automatic
2.CE
3.Easy operation
4.Good quality
PET Bottle Filling Machine/Liquid Bottling Machine
Main Features
1. The water filling machine is automatic.It’s of many advantages, such as compact structure, perfect control system and easy to be operated. Advanced touch screen and PLC control system makes man-machine communication true.
2. Washing part in the bottle water machine is mainly composed of washing pump, bottle clamps, water distributor, up turn-plate, guide rail, protection cover, spraying device, defrosting tray, rinse water take and rinse water refluxing tank.
3. Filling part in the water filling machine is composed of filling barrel, filling valves (normal temperature and normal pressure filling), filling pump, bottle hanging device / bottle pedestals, elevating device, liquid indicator, pressure gauge, vacuum pump, etc.
4. Capping part in this water filling machine is mainly composed of capping heads, cap loader (separated), cap unscrambler, cap drop rail, pressure regular, cylinder and also we need an air compressor as the auxiliary external equipment.
PET Bottle Filling Machine/Liquid Bottling Machine
Main Technical Parameters
Model |
CGF8-8-3 |
CGF16-12-6 |
CGF18-18-6 |
CGF24-24-8 |
CGF32-32-10 |
CGF40-40-10 |
CGF50-50-12 |
Washing No |
8 |
16 |
18 |
24 |
32 |
40 |
50 |
Filling No |
8 |
12 |
18 |
24 |
32 |
40 |
50 |
Capping No |
3 |
6 |
6 |
8 |
10 |
10 |
12 |
Production capacity(500ml b/h) |
2000 |
4000 |
7000-8000 |
10000-12000 |
12000-15000 |
15000-18000 |
20000-22000 |
Installed Capacity(kw) |
3 |
3.5 |
4 |
4.8 |
7.6 |
8.3 |
9.6 |
Overall size |
2250*1800*2400 |
2450*1800*2400 |
2650*1900*2400 |
2900*2100*2400 |
4100*2400*2400 |
4550*2650*2400 |
5450*3210*2400 |
PET Bottle Filling Machine/Liquid Bottling Machine

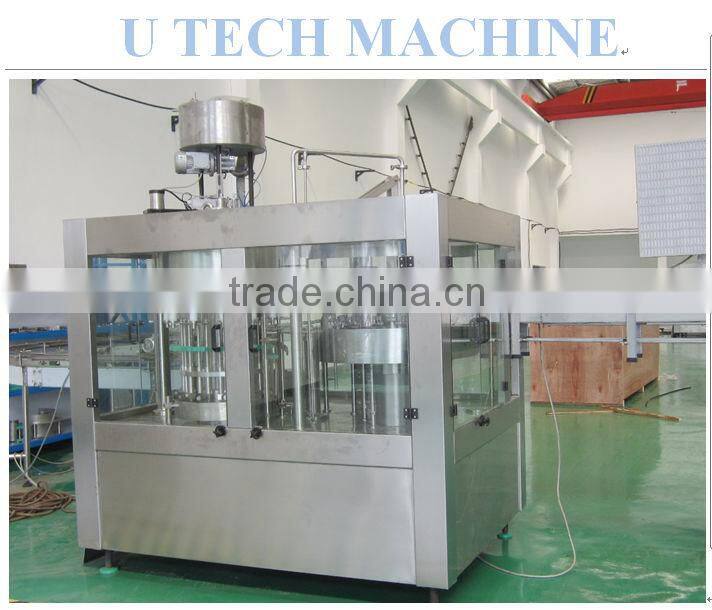

Machine Picture

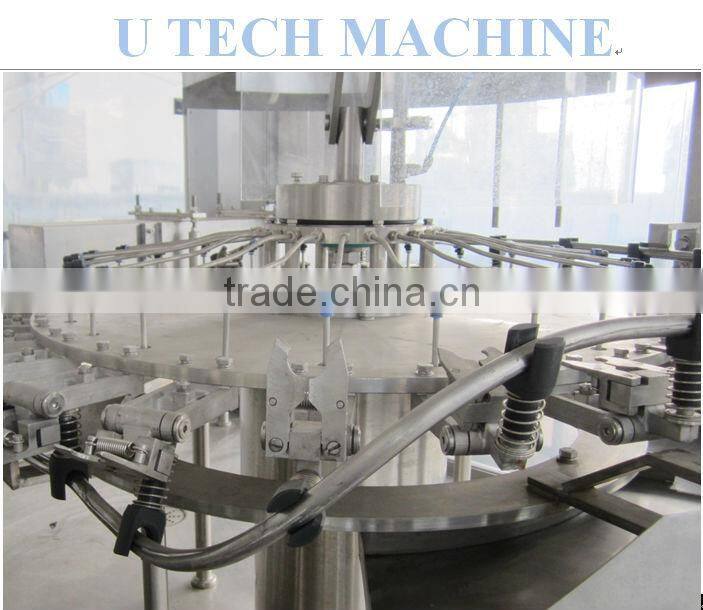

Washing Part

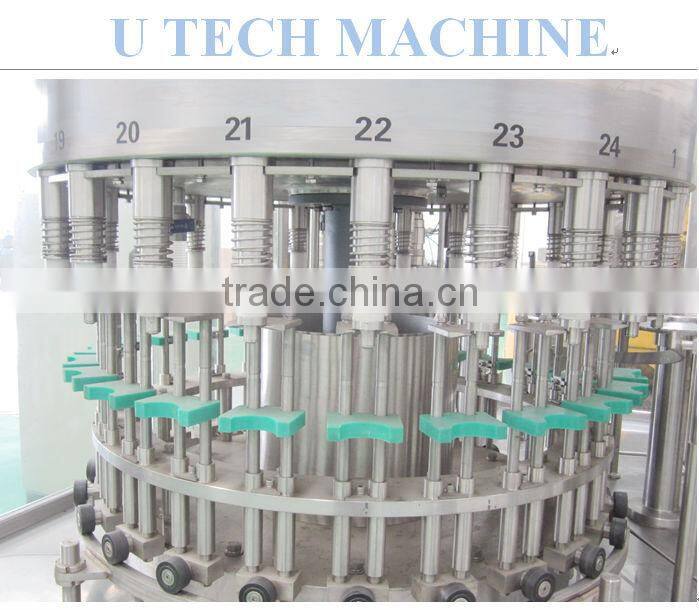

Filling Part

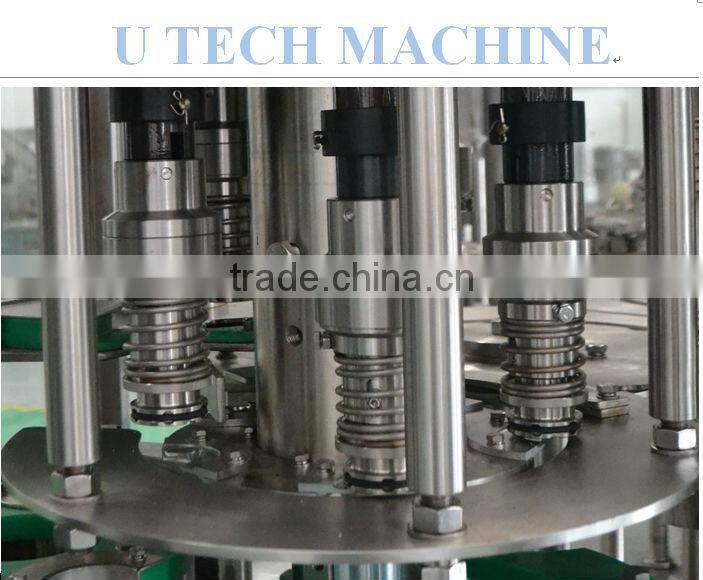

Capping part
PET Bottle Filling Machine/Liquid Bottling Machine
PET Bottle Filling Machine/Liquid Bottling Machine
What service U Tech Machine Co.,Ltd can offer you ?
• Well-trained & experienced staff are to answer all your inquiries in English and Chinese
• 24 hours for engineer response (all services part 5days in customer hand by Intl' courier).
• 2 Years guarantee
• Your business relationship with us will be confidential to any third party.
• Good after-sale service offered, please get back to us if you got any questions.
PET Bottle Filling Machine/Liquid Bottling Machine
Zhangjiagang U Tech Machine Co., Ltd. is a manufacturer of filling machine and packing with well-equipped testing facilities and strong technical force. With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in beverage and other packing equipment.
Our products include: liquid filling machines (water, fruit juice/tea, carbonated drink, oil, alcohol, plant protein drink, etc.), barreled filling line (3-5 gallon) water treatment machines, labeling & packing machines, semi-automatic /full automatic PET bottle blowing machines, and injection molding machines, extrusion blow molding machines (PP/PE/PVC/PETG/PC...) and accessories for automation: leak tester machines, bottle bag packing machines, conveyor belts.
our factory
Certification
Exhibition in Colombia
PET Bottle Filling Machine/Liquid Bottling Machine
Q1:Are you a trading company or a manufactory?
A1:We are a manufactory,can give u best service .
Q2:What’s your guarantee or the warranty of the quality if we buy your machines?
A2:We offer you high quality machines with 2 years guarantee . we will give u spare part free in 2 years
Q3:When can I get my machine after I paid?
A3:We will deliver the machines on time as the date we agreed both side.
Q4:How can I install my machine when it arrives?
A4:We will send our engineer to your side as soon as you get all your machines ready , for testing and teaching your technicians how to run the machines.
Q5:How about the spare parts?
A5:After we deal down all the things , we will offer you a spare parts list for your reference.
