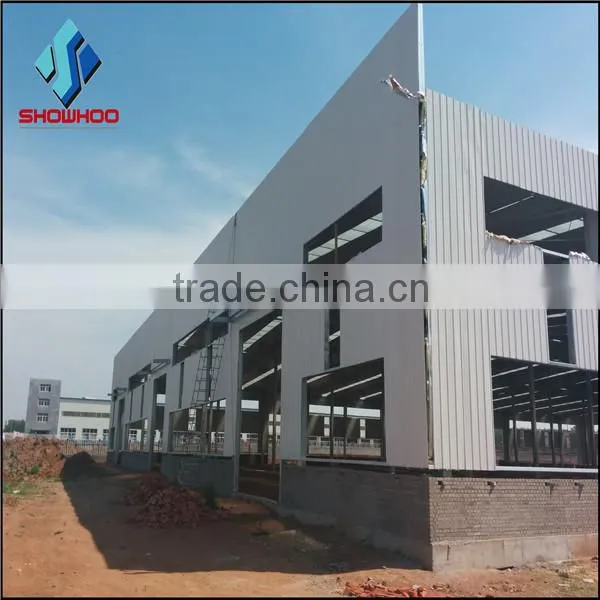

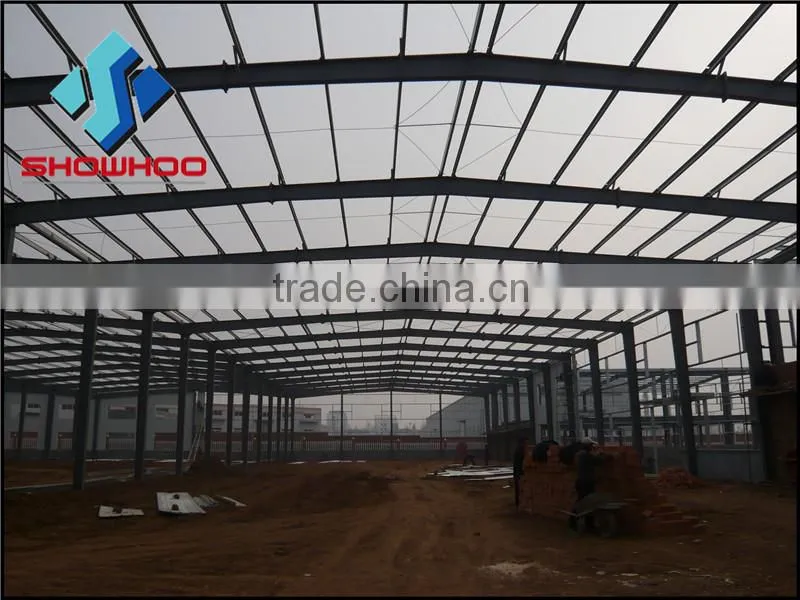

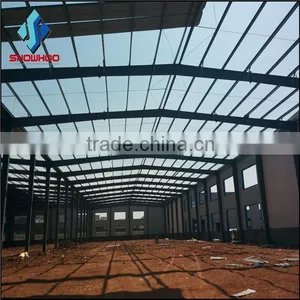

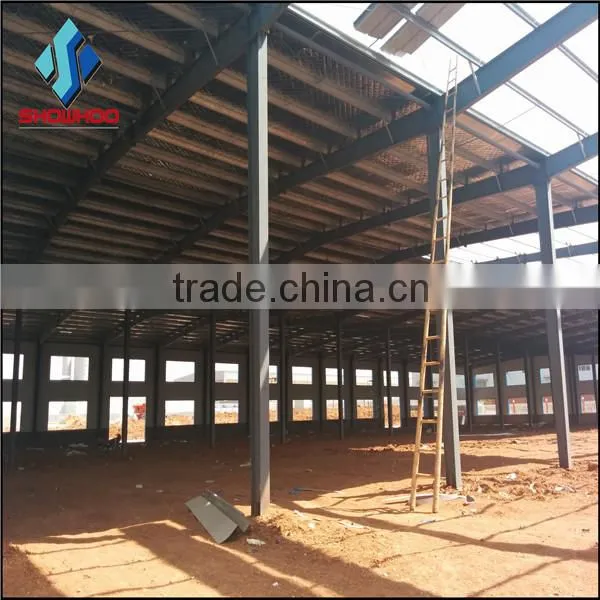

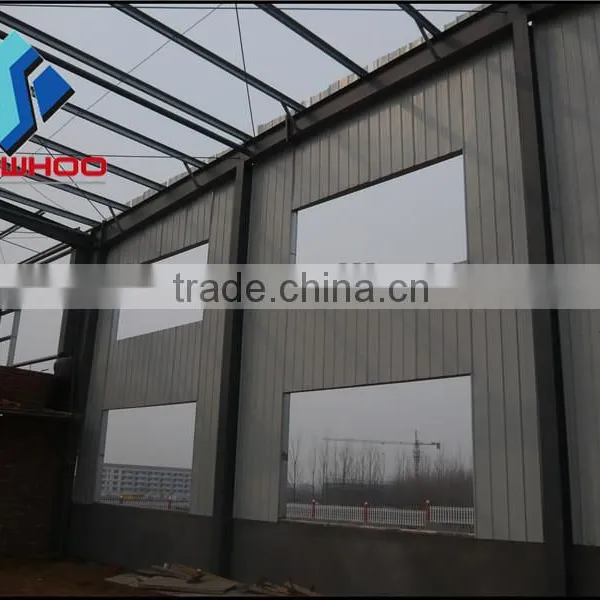

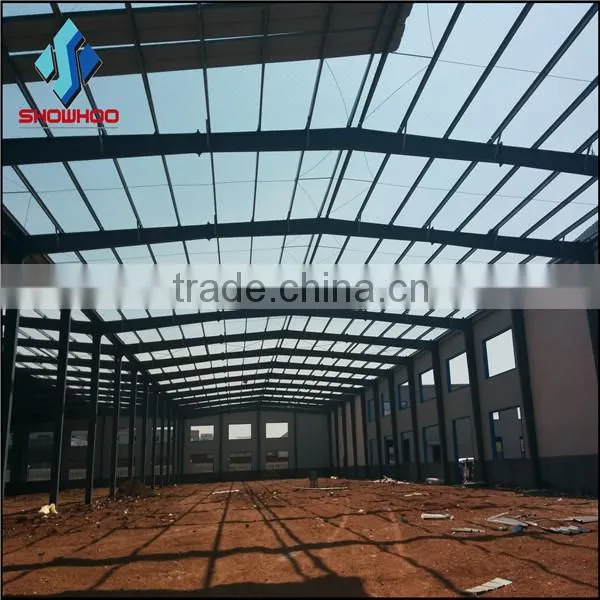

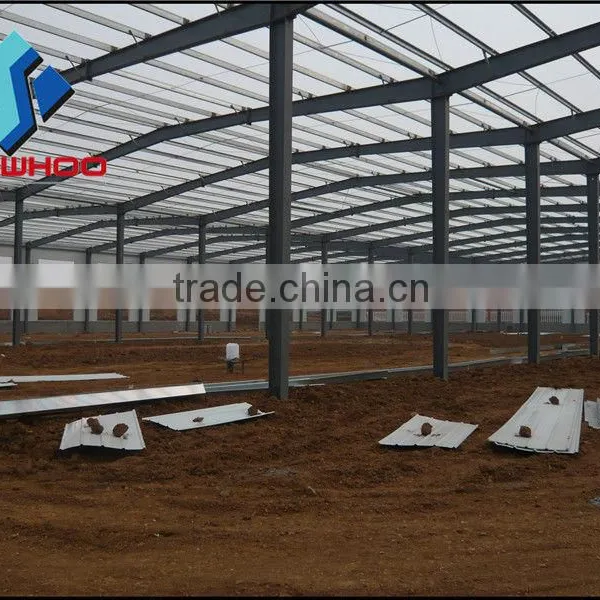

Construction design steel structure frame pre-engineered warehouse

Specifications

1. Low cost design
2. Fast constrution
3. Longer service life
4. pre-engineered warehouse

Construction design steel structure frame pre-engineered warehouse



Steel Structure Building Scope:

Industrial steel structure warehouse, workshop, hangar, garage, chicken shed, container houses, prefabricated houses, sandwich panels, corrugated steel sheet, welded H steel, C/Z purlin, etc.



Steel Structure Building Main Materials:

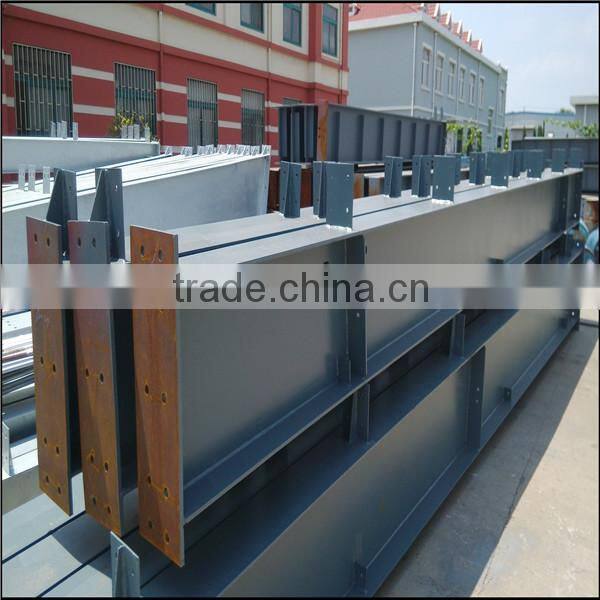

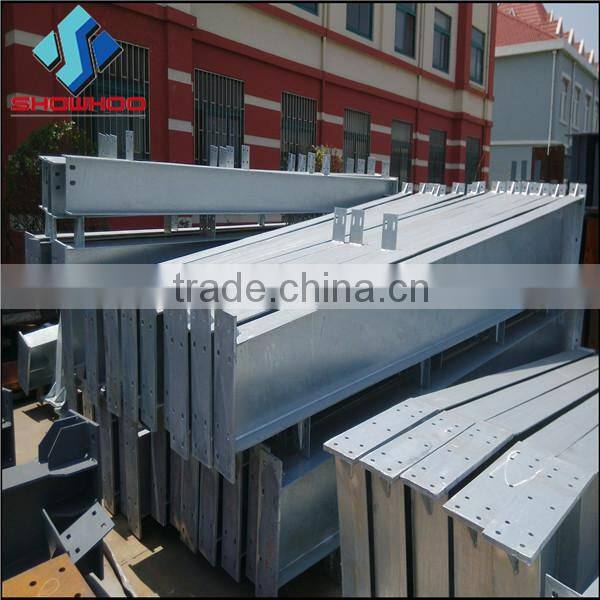

Material Q345 or Q235 Steel, Straight or Variable cross-section



X-type or V-type or other types bracing made from round, angle pipes etc.

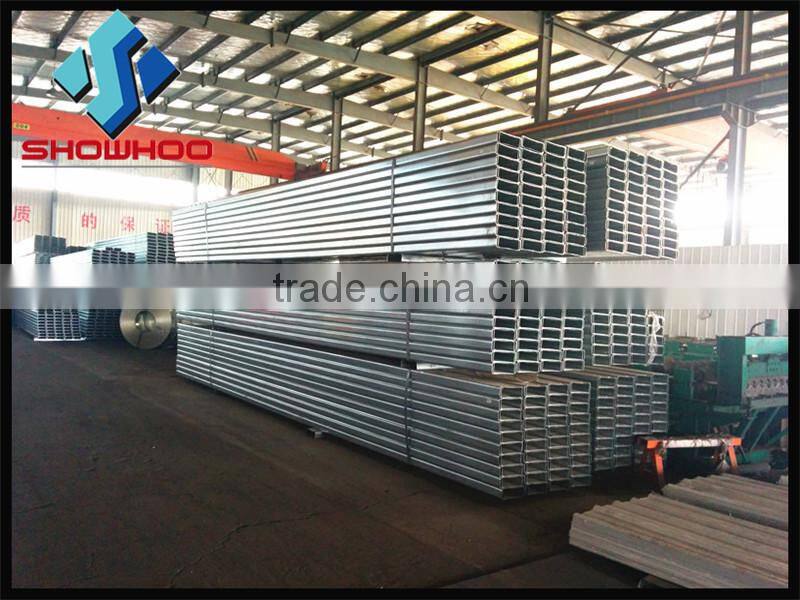

C or Z type: Size from C120~C320, Z100~Z200

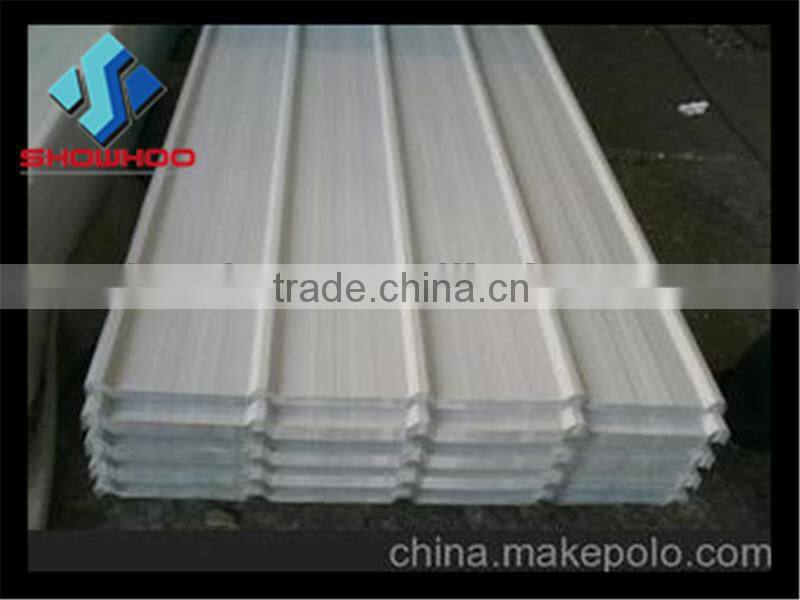

 Single Colorful Corrugated Steel Sheet

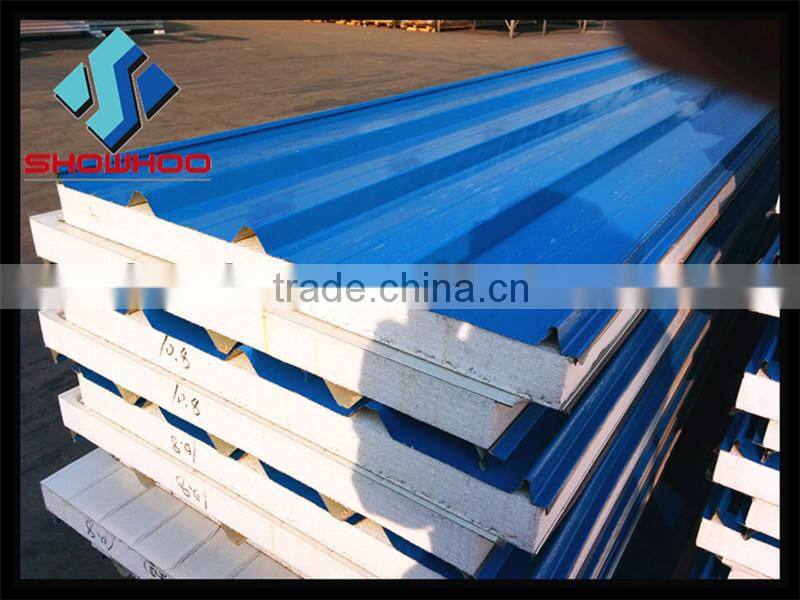

 Sandwich panels with EPS, Rockwool, fiber glass, PU etc.



High Strengthen Bolt, Normal Bolt, Post feet Bolt.



Skylight Belts, Ventilators, Down Pipe, Rolling or Sliding Door, PVC or Aluminum Alloy Windows, Gutter etc.



Two lays of Anti-rust Paint



Steel Structure Building Characteristics:

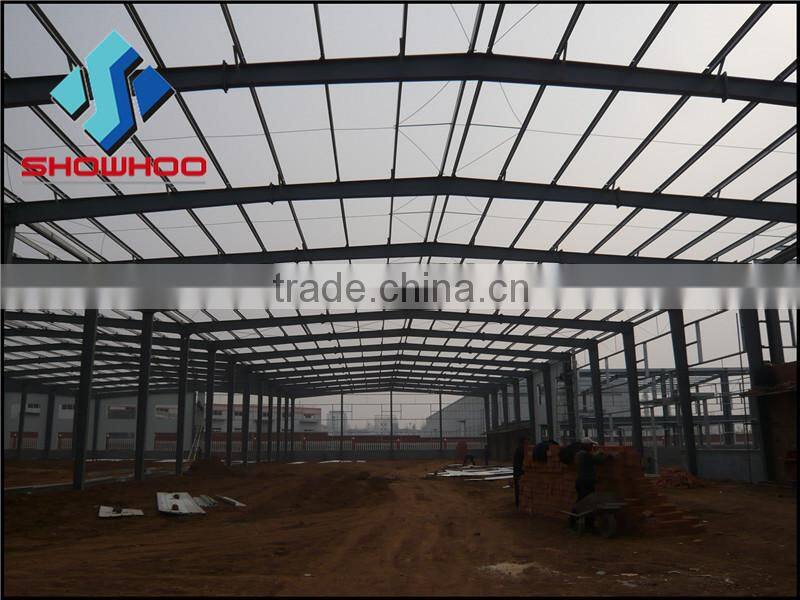

1. Wide span: single span or multiple spans, the max span clear distance is 36m, without middle columns.



2. Low cost: unit price range from FOB USD35 to USD70 per square meter according to customer’s request.



3. Fast construction and easy in installation



4. Long term service life: more than 50 years.



5. Other characteristics: environmental protection, stable structure, earthquake resistance, water proofing, and energy saving







Only provide us with the following information, you can get a quotation:

1. Size: Length* Width*Height (eave height)

2. Local wind speed(km/h),Snow load(kg/m2)

3. Wall and Roof: Steel Sheet or Sandwich Panels?

4. Door and Windows: Size and Quantity

5.Other needs or not: Gutter, Down Pipe, Skylight Panels, Fan

6.Crane: if have, pls tell me the crane span, crane lift height, max lift capacity

7.As your drawings or requirements.



Steel structure drawing: we have a professional technical team that can provide you designing structure drawings, 3D models, production drawings, installation instructions etc..



OVERVIEW OF SHOWHOO FACTORY:



Loading



According to container size,container of 20 feet:Inside capacity is 5.69m x 2.34m x 2.18m,Gross weight of allocation is generally 17.5 ton,volumn is 24-26m3. container of 40 feet:Inside capacity is 11.8m x 2.34m x 2.18m,Gross weight of allocation is generally 22 ton,volumn is 54m3. HC container of 45 feet:Inside capacity is 13.58m x 2.34m x 2.71m,Gross weight of allocation is generally 29 ton,volumn is 86m3.
