Specifications
2015 Customer Fit Box Sealing Machine Carton1.Imported parts
2.Pneumatic driven
3.Left&right driven belt
4.PLC

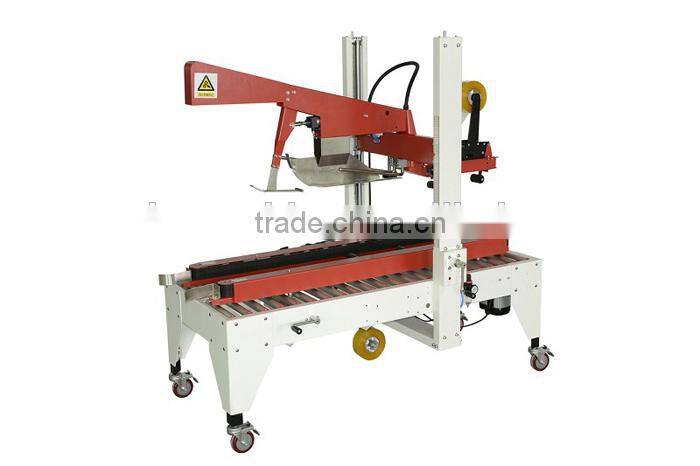

2015 Customer Fit Box Sealing Machine Carton
Description:
2015 Customer Fit Box Sealing Machine Carton is mainly used in sealing and packing cartons, which
can be used either independently or as a necessary part of a production line.
The machine can adjust itself to different sizes of cartons. This machine adopts pneumatic method
for packaging automatically, it overcomes some disadvantages when adopts manual or semi-auto ones, such as slow speed and the unstable quality. This machine will not damage the surface
of packaged objects. The air-jar with every action point adopts AirTAC products, the capability is
very stable.
Features:
Imported parts, electrical and pneumatic components
Manually adjust the height and the width for different size of cartons;
Advanced pneumatic control system compare with the complicated electrical control system
Fold the top covers automatically, side belts driven top and bottom sealing
Cutter Safety system to prevent hands form stabbed by the cutter
Both steel and stainless steel types
| Model | FC500 | FC500A | FC500B | FI500 |
| Name |
automatic carton fold&sealing machine |
automatic carton fold&sealing machine |
automatic carton fold&sealing machine |
Full automatic carton fold&sealing machine |
|
Min carton dimension |
L200*W120*H100 |
L200*W120 *H100 |
L200*W180 *H150 |
L200*W165 *H140 |
|
Max carton dimension |
L600*W500*H500 | L600*W500*H500 |
L500*W400 *H400 |
L600*W500 *H500 |
|
Sealing speed |
20m/min(10-15case) | 30m/min(20-30case) |
38m/min (35-45case) |
20m/min |
|
Machine dimension |
L1700*W930*H1510 |
L1700*W930 *H1510 |
L1700*W930 *H1510 |
L1700*W920 *H1450 |
| Voltage | 220/380V 50HZ | 220/380V 50HZ |
220/380V 50HZ |
220/380V 50HZ |
|
Air consumption |
6kgf/cm3; 40nl/min |
6kgf/cm3; 40nl/min |
6kgf/cm3; 40nl/min |
6kgf/cm3; 100nl/min |
| Power | 0.4kw | 0.4kw | 0.4kw | 0.4kw |
|
Sealing tape |
W48,60,75mm | W48,60,75mm | W48,60,75mm | W48,60,75mm |
| Weight | 180kg | 200kg | 280kg | 280kg |
| Feature A | automatically folding |
automatically folding |
automatically folding with high speed |
suitable for different size carton |
| Feature B |
manually adjust width&height |
manually adjust width&height |
manually adjust width&height |
height and width adjustment automatically |
| Feature C | sides belt driven | sides belt driven |
bottom belt driven |
two sides belt driven |
2015 Customer Fit Box Sealing Machine Carton
2015 Customer Fit Box Sealing Machine Carton
What service U Tech Machine Co.,Ltd can offer you ?
• Well-trained & experienced staff are to answer all your inquiries in English and Chinese
• 24 hours for engineer response (all services part 5days in customer hand by Intl' courier).
• 2 Years guarantee
• Your business relationship with us will be confidential to any third party.
• Good after-sle service offered, please get back to us if you got any questions.
2015 Customer Fit Box Sealing Machine Carton
Brief Introduction
Zhangjiagang U Tech Machine Co., Ltd. is a manufacturer of filling machine and packing with well-equipped testing facilities and strong technical force. With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in beverage and other packing equipment.
Our products include: liquid filling machines (water, fruit juice/tea, carbonated drink, oil, alcohol, plant protein drink, etc.), barreled filling line (3-5 gallon) water treatment machines, labeling & packing machines, semi-automatic /full automatic PET bottle blowing machines, and injection molding machines, extrusion blow molding machines (PP/PE/PVC/PETG/PC...) and accessories for automation: leak tester machines, bottle bag packing machines, conveyor belts.
Our Workshop
Exhibition in Colombia
Certification
2015 Customer Fit Box Sealing Machine Carton
Q1:Are you a trading company or a manufactory?
A1:We are a manufactory,can give u best service .
Q2:What’s your guarantee or the warranty of the quality if we buy your machines?
A2:We offer you high quality machines with 2 years guarantee . we will give u spare part free in 2 years
Q3:When can I get my machine after I paid?
A3:We will deliver the machines on time as the date we agreed both side.
Q4:How can I install my machine when it arrives?
A4:We will send our engineer to your side as soon as you get all your machines ready , for testing and teaching your technicians how to run the machines.
Q5:How about the spare parts?
A5:After we deal down all the things , we will offer you a spare parts list for your reference.
