Specifications
3.5"wireless peephole viewer1.taking photos automatically
2.intercom,unlocking
3.recharging battery
4.infrared night vision
1.Introduction
The product is composed of peephole camera, peephole host, indoor monitor and wireless unlock control. You can operate the indoor monitor to communicate with visitors via voice and video, and then unlock the door if you wish. It’s applicable in apartment, hotel, office, building and so on.
The product is easy to install in variable types of doors (the door thickness ranges from 35 to 110mm, the peephole diameter ranges from 14 to 38mm). Indoor monitor is portable. It can be hung on the wall or cabinet, or be placed on the desk, tea table.
2.Feature
(1) 2.4GHz digital frequency hopping and encryption technology, transmission distance up to 200 meters at open area, robust anti-interference
(2) Clear night vision can capture image in low-illumination environment
(3) 3.5 inch TFT color color touch screen for indoor monitor, the peephole is made of zinc alloy.
(4) Surveillance, wireless unlock, hands-free call and talk
(5) 16 chord melodies and melody volume is adjustable
(6) Date (only 1V1 system support) and time shown on the screen
(7) Indoor monitor could take pictures automatically or by instruction, it could store up to 100 pictures with date and time
(8) Brightness and talk volume are adjustable
(9) The peephole works with BL-5J Lithium battery, and the indoor monitor works with the same.
(10) The peephole can work about 1~2months. The peephole with USB power adapter can work all the while.
(11) Wireless unlock control supports power on and power off unlock mode
(12) One peephole supports up to 4 indoor monitors and vice versa
3.Technical parameters
Peephole
Light Source:2 LED lights
Camera:CMOS 300K pixels
Battery:BL-5J 1250mAh
Size:L60*W60*H16.55mm
Material:Zinc alloy
Standby:1~2 months
WORKING TEMPERATURE:-10~+50
STORAGE TEMPERATURE:-20~+60
Indoor monitor
USB PowerInput:100-240V 50/60Hz
Output:DC 5V/1A
Screen:3.5”TFT 320×240
Battery:BL-5J 1250mAh
Size:L136*W80.6*H20mm
Standby:20 days
Recharge time:3 hours
WORKING TEMPERATURE:-10~+50
STORAGE TEMPERATURE:-20~+60

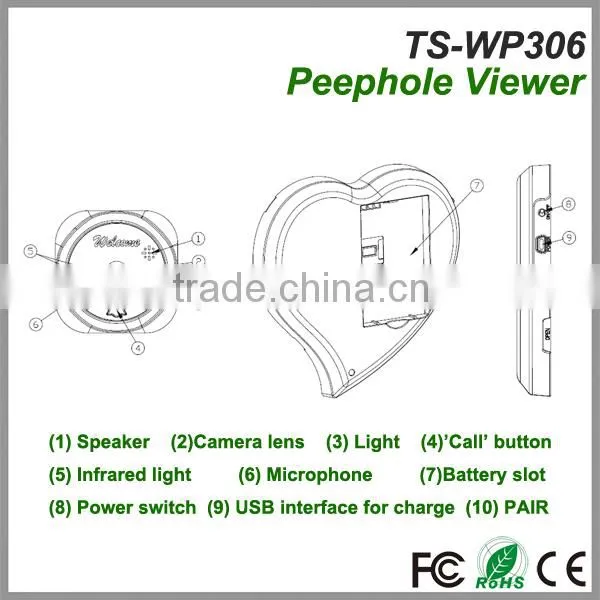

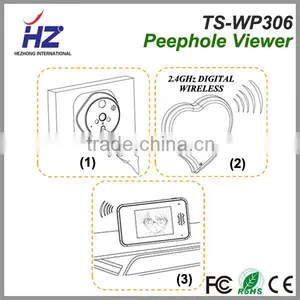

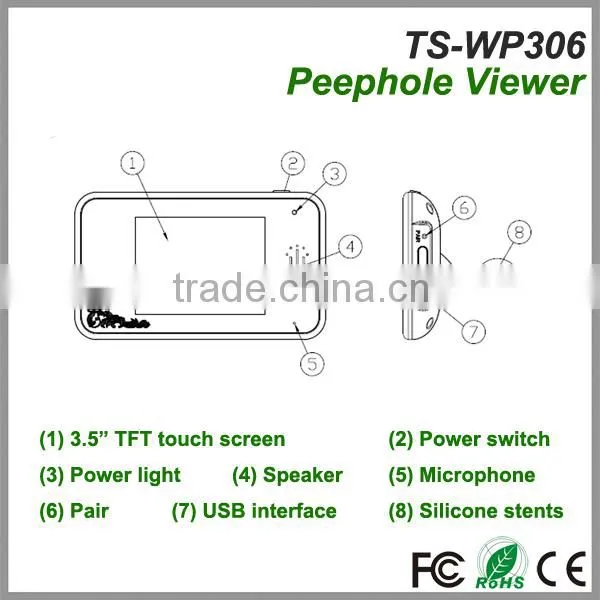

4.Schematic diagram

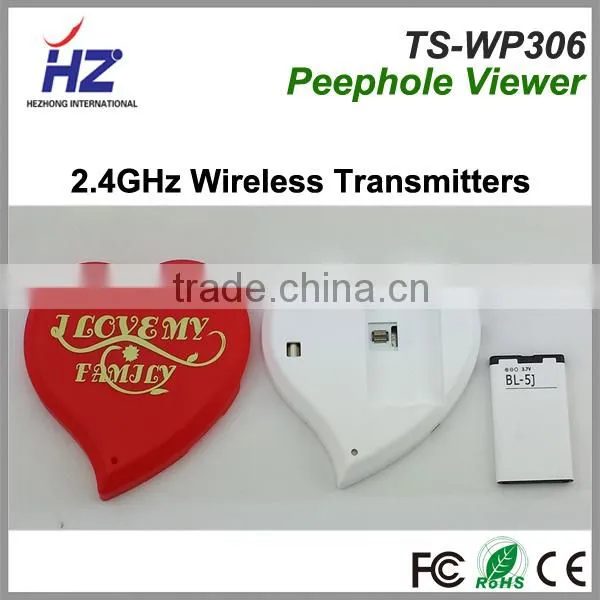

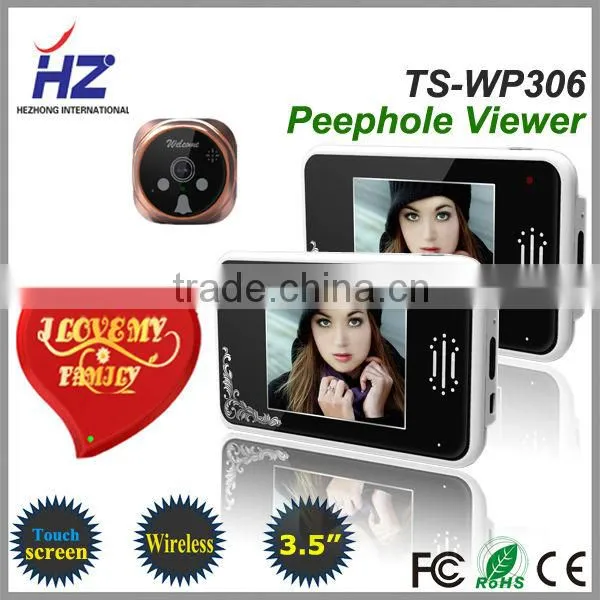

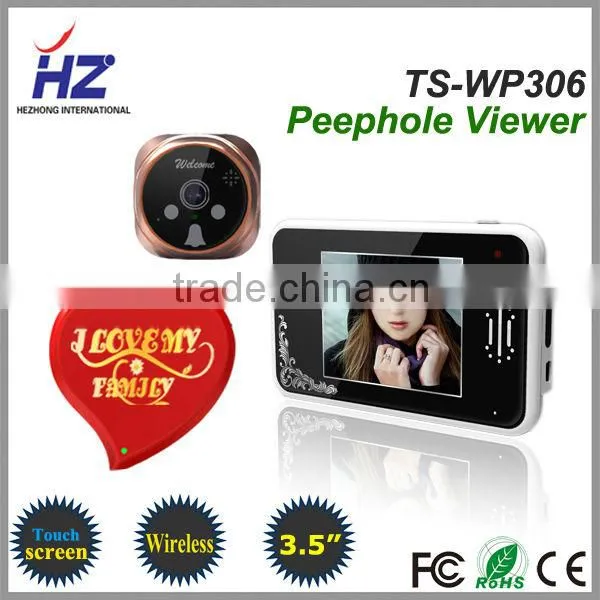

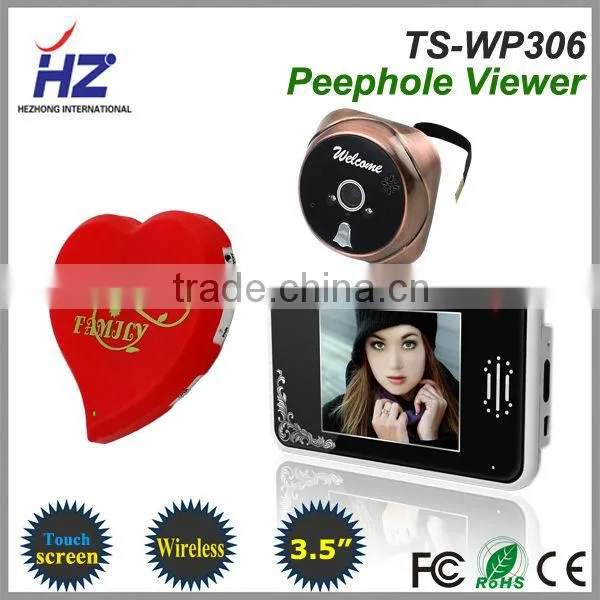

5.Real picture show

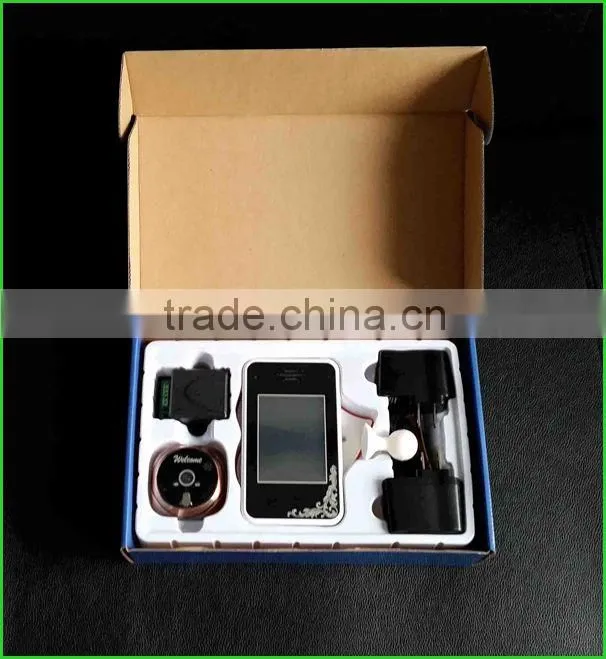

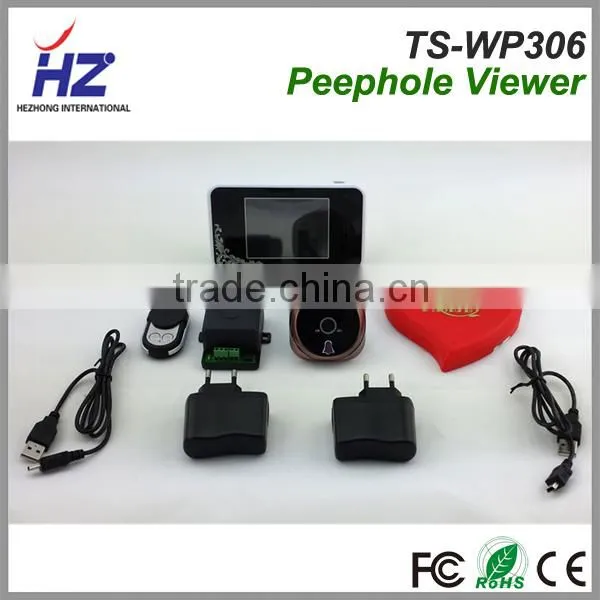

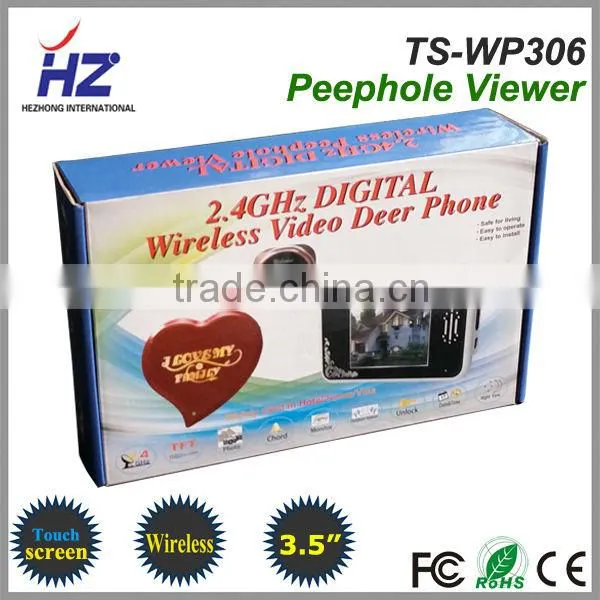

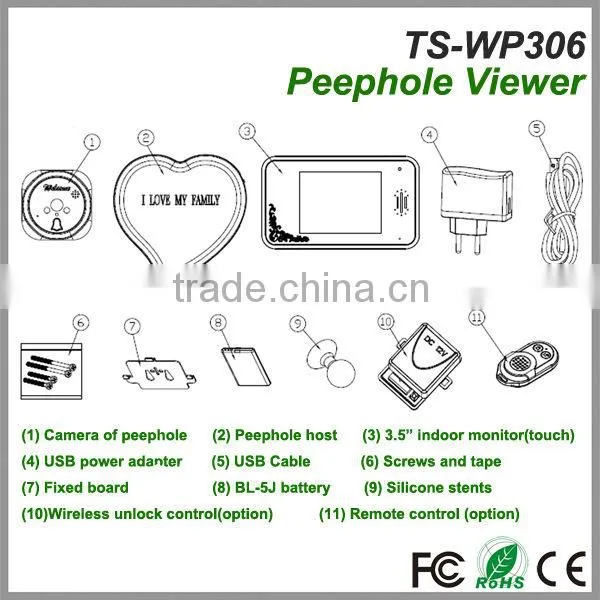

6.Packing and Delivery
1 x 3.5 inch TFT LCD Screen
1 x 300K pixels peephole
1 x Peephole host
2 x DC 5V 1A Switch adapter
1 x Mounting plate
2 x BL-5J 1250mAh
1 x Screw bag
1 x Manual
1 x Wireless unlock control(option)+Remote control (option)
1 x Silicone stents
2 x USB Cable

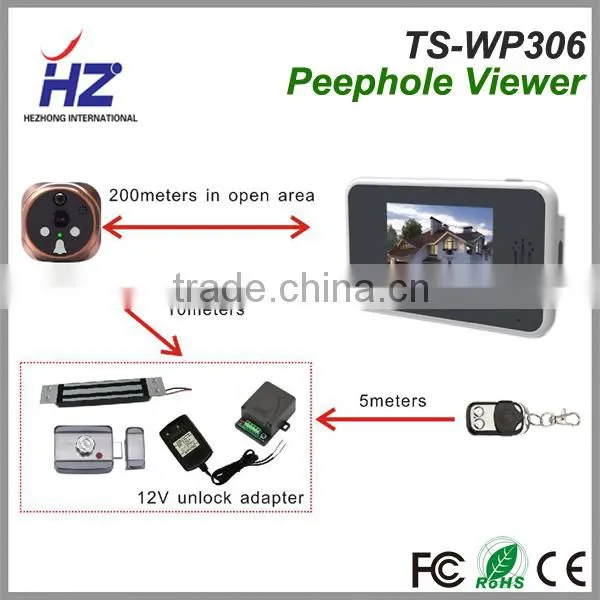

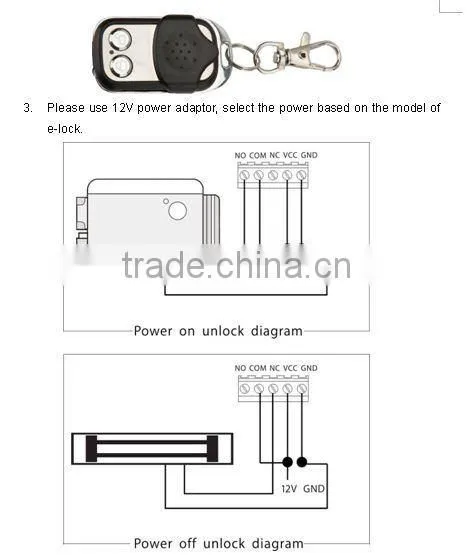

7.Unlocking diagram

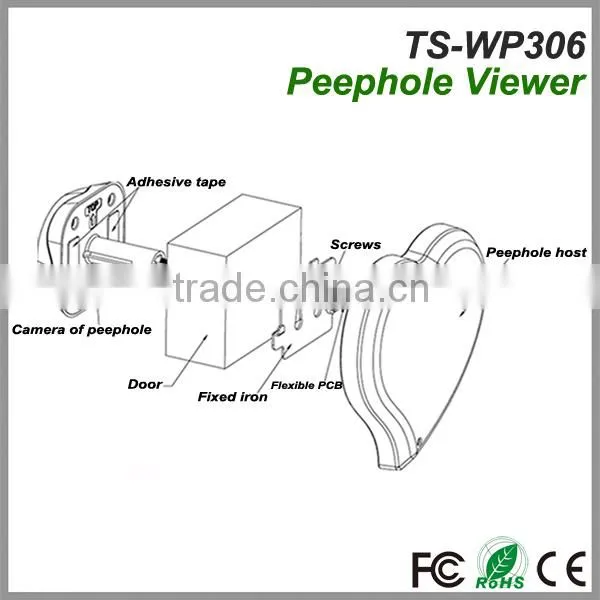

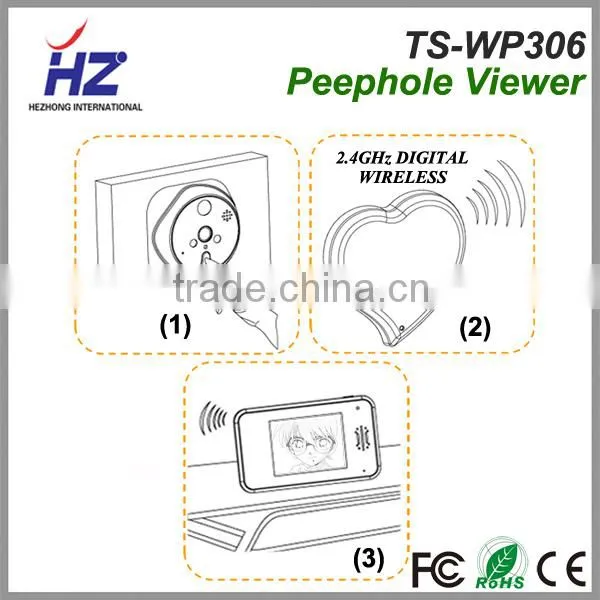

8.How to install peephole
9.Quality control
The newest model is on sale from 2014.06.01, welcome old and new customer to order.it will be a good chance for business man to get profit,and we want to find exclusive agency, too.
