Help CenterUpgraded 9 '' TFT-LCD Villa Wireless Memory Video Door Phone With Remote Control Unlocking by Long Distance More Than 50meters
Related Products
-
Electric Lock Controller Remote Control Apartment Wireless Video Door Phone Intercom SystemUS$ 92 - 116MOQ: 10 Sets -
Android/ IOS Remote Control Motion Detection Alarm Night Vision Doorbell Camera Wifi WirelessUS$ 48 - 68MOQ: 10 Sets
-
Outdoor Camera Call Indoor Receiver Ring Wireless Remote Control Smart ip Wifi DoorbellUS$ 48 - 68MOQ: 10 Sets
-
Motion Detection Alarm Android/ IOS Tablet or Phone Connect Wifi Doorbell Night Vision CameraUS$ 48 - 68MOQ: 10 Sets
-
Wireless Remote Control Wifi Doorbell Video Wireless Video Door Phone Intercom SystemUS$ 48 - 68MOQ: 10 Sets

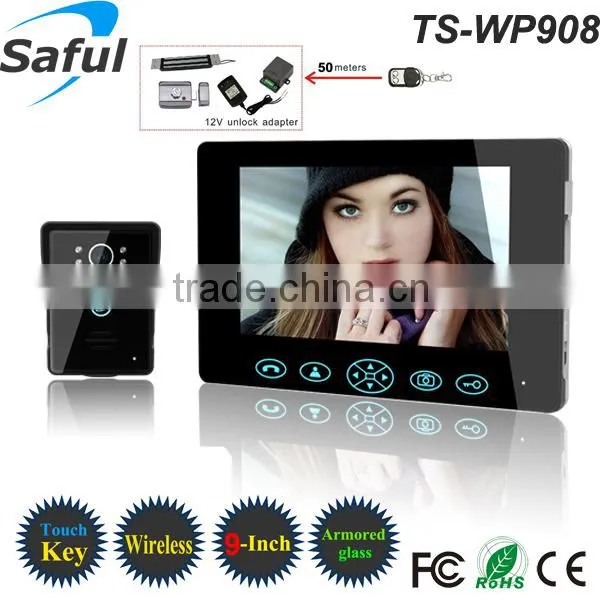

New 2014 Saful TS-WP908 video intercom wireless|wireless doorbell
(High-strength tempering glass, 9 inch , Tamper alarm)
1.Introduction
This product is used to replace the previous wired doorbell,or visual doorbell,etc. outdoor unit can be installed beside the door. indoor unit can be free to use the stable singal intensity place.indoor machine can be hung on the wall,closet,etc or be placed above the desk, tea table, table etc. Wireless unlock connect to the electric lock is simple, save electricity lock module embedded intelligent lock or remote control locks,lock the indoor machine to connect the door machine,easy to use,easy to complete the visible interphone. a key lock, users don't have to run to the door for opening door directly.
2.Feature
1. 2.4GHz digital frequency hopping and encryption technology, transmission distance up to 300 meters in open area, robust anti-interference;
2. Clear night vision: can capture image in low-illumination environment. This model is still very clear in 5m, while the genral vidoe door phone not clear exceed 1m.
3. Rain shield for the outdoor camera is available;

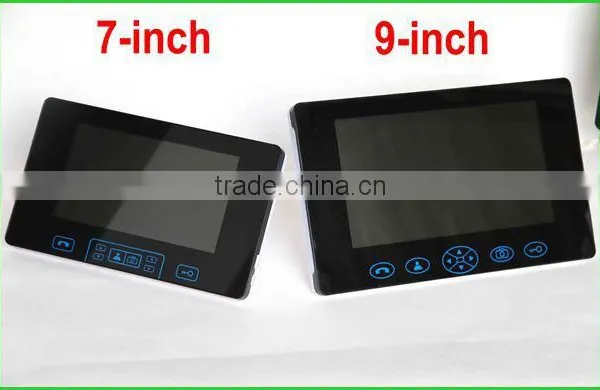

4. 9 inch Digital TFT color panel;
5. High-strength tempering glass, abrasion resistant and scratch, longer working life;

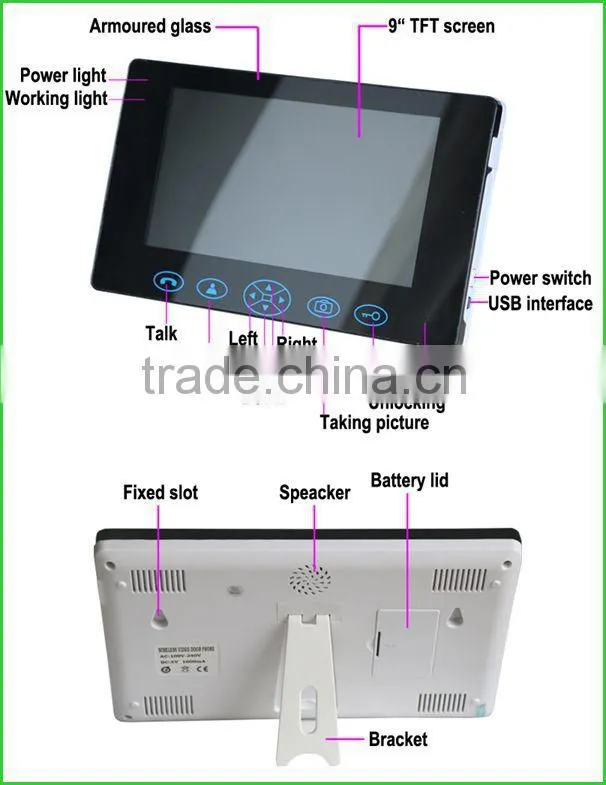

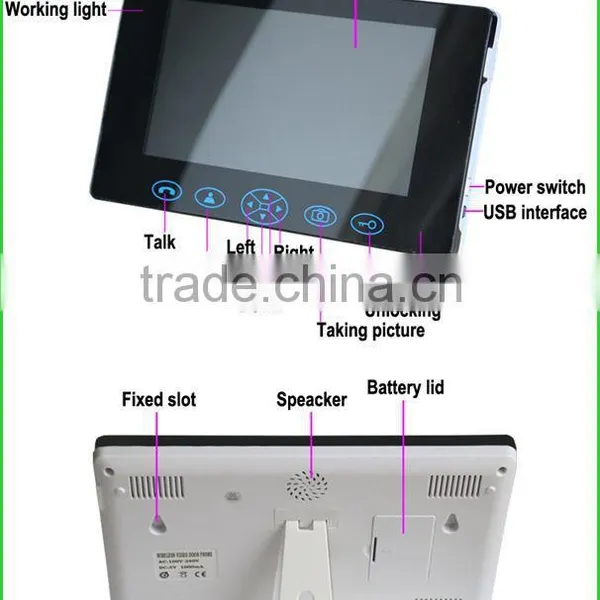

6. High Sensitivity touch keys
7. Monitor, wireless unlock, hands-free call and talk;
8. 16 chord melodies and melody volume is adjustable;

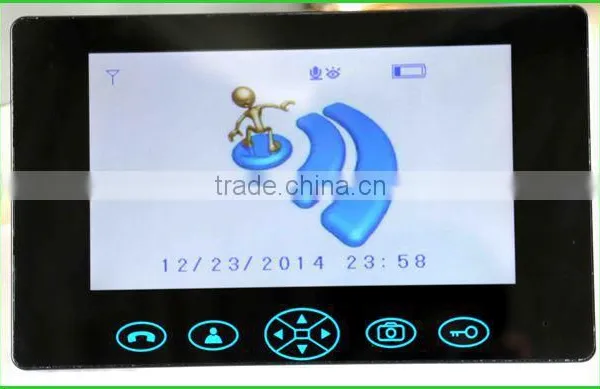

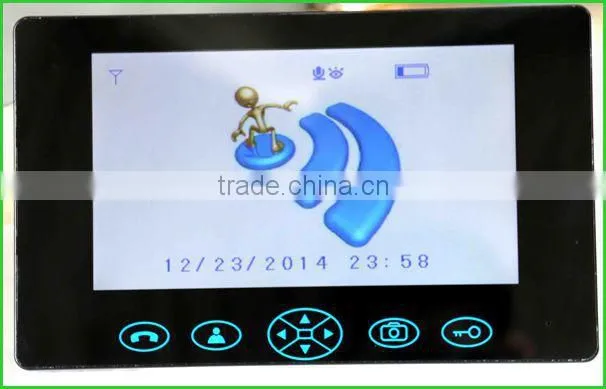

9. Date and time are showed on screen;
10. Indoor monitor store up to 100pcs pictures, pictures mark date and time;
11. Brightness and talk volume are adjustable
12. BL-5J battery of camera and monitor is replaceable and rechargeable;
13. Outdoor camera has two work modes:
1) Plugging in the power adaptor.
2) Using battery, it can works about 15 days.
14. With Wireless unlock control ,Tamper alarm function;
15. One outdoor camera supports up to 3pcs indoor monitors and vice versa;
16. The outdoor unit with the function of tamper alarm, and if you keep pressing outdoor calling key more than 5 seconds, will turn off battery battery’s power, once again turn on power.
3.Technical Parameters
Outdoor unit |
Indoor unit |
||
Night vision |
IR night,visible within 5m |
Screen |
9'' wide angle TFT LCD, 16:9 Display |
Vision angle |
92° Wide Angle |
Power input |
AC100V-240V 50Hz-60Hz |
Resolution |
> 420 TV Line |
Resolution |
800*RGB*480 |
Working temperature |
-15°C~+55°C |
Power output |
DC 5V/1A |
Installation |
Wall mounted |
Standby time |
7 days |
Size |
131(L)*94(W)*60(H)mm |
Size |
270(L)*166(W)*16(H)mm |
Net weight |
0.26kg |
Net weight |
0.66kg |
Standby time |
2 months |
Working temperature |
-40°C~+70°C |
battery |
BL-5J 1320mAh |
battery |
BL-5J 1320mAh |
4.Schematic diagram
5.Solar charger

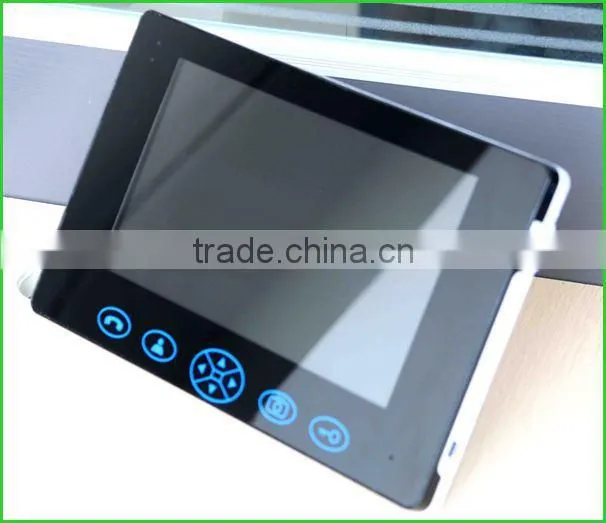

6.Real picture show

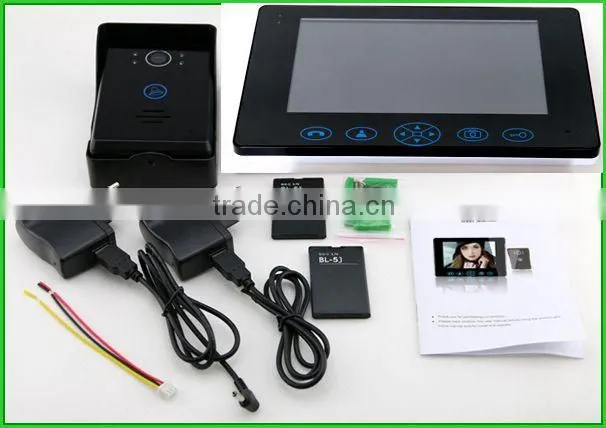

7.Packing and Delivery
(1) 1 X Outdoor camera, size: 132×90×42mm

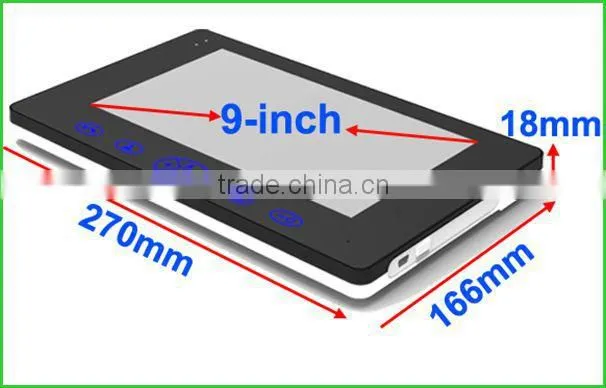

(2) 1 X 9” indoor monitor, size: 270×166×18mm
(3) 1 X Power adapter for outdoor camera ; Input: 100-240V 50/60Hz Output: 5V/1A
(4) 1 X USB power adapter for indoor monitor; Input: 100-240V 50/60Hz Output: 5V/1A
(5) 1 X BL-5J battery of camera (optional) and monitor
(6) 1 X Screws and stoppers
(7) 1 X User manual
(8) 1 X Color box
8.Unlocking diagram
9.Quality control
