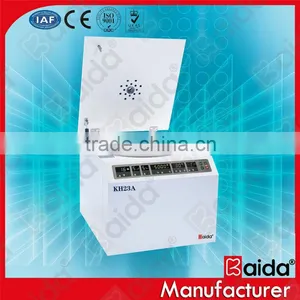

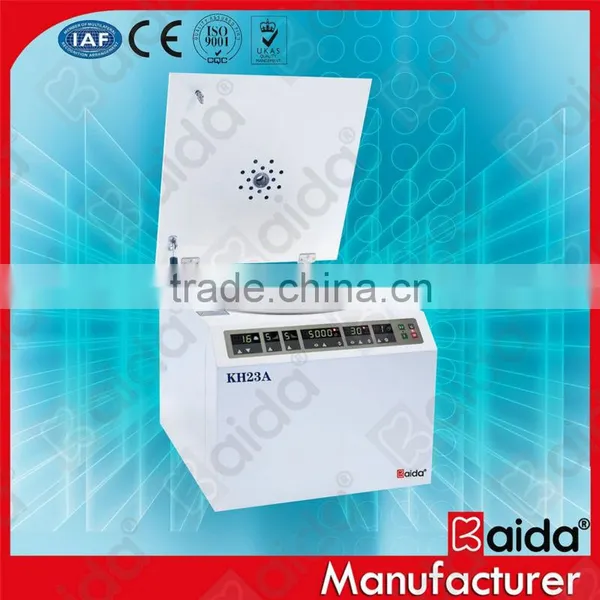

KH23A medical equipment centrifuge

Specifications

medical centrifuge
CE&ISO9001&ISO13485
LED&LCD display;Rotor identification; Durable
Fast delivery & wholesale price

medical equipment centrifuge

KH23A medical equipment centrifuge



Advanced Control System, Excellent separation

Ten kinds of Accel/Decel modes, can be selected or directly set up the time of Accel/Decel; User can set up the operate parameter by themselves, to achieve the best centrifugal result.

Short running function, easy to diversification centrifugation.

Proprietary SCT speed control technical, high efficiency.

Proprietary SBT soft brake control technical, to avoid mix up and ensure get maximum specimen.

High Safety, Ease of use

Rotor identification, no need to select rotor number.

over speed, door and unbalanced protection.

Steel body, Stainless steel chamber, Steel Protective sleeve.

Can take the rotor with aerosol-tight lid for use with hazardous samples.

Friendly Display, Humanity Operate



Many pieces of LCD and LED display, the Program, Accel/Decel modes, RPM/RCF, Time, Temperature are all easy to set up.

Microprocessor control, operated data can be saved automatically, can start the instrument with RCF directly, can be store and use 40 kinds of self-defining operating modes directly by user-self.

Good parts, Reliable and longlasting

Brushless converter motor which has high torque, "SKF" supper speed bearing.

Aerospace rubber for damping, super duralumin alloy from Aluminum Corporation of China Limited (CHALCO).

Universal, multifunctional.

Can take Angle rotor for High Speed, and Swing rotor for Big capacity & Low Speed, widely used in several kinds of research and produce.



medical equipment centrifuge technical parameter

Model	KH23A
Max Speed	18600r/min
Max RCF	23950xg
Max Capacity	2000ml
Speed Accuracy	±20r/min
Time Range	1s-99h99min59s
Power Supply	AC 220V 50Hz 18A
Noise	≤65dB
Dimension	460x590x420mm
Weight	48kg



medical equipment centrifuge rotor option

Model	Number	Capacity	Max Speed	Max RCF	(mm) Dimension of tube
Angle Rotor	No.1	12×1.5ml	18000 r/min	21500×g	Φ10×42
	No.2	18×0.5ml	18000 r/min	21500×g	Φ8×32
	No.3	24×1.5/2.0ml	15000 r/min	21000×g	Φ10×42
	No.4	10×5ml	16000 r/min	17420×g	Φ14×54
	No.5	12×10ml	15000 r/min	23120×g	Φ16×81
	No.6	6×50ml	13000 r/min	17380×g	Φ28×105
	No.7	4×100ml	10000 r/min	9690×g	Φ38×124
Microplate Rotor	No.8	2×2×96Holes	4000 r/min	2300×g	Microplate Rotor
Swing Rotor	No.9	4×50/100ml	5000 r/min	4390×g	Φ38×124
	No.10	4×500ml (adaptor 12×50ml/8×100ml)	4000 r/min	3580×g	Φ80×140
	No.11	4×250ml (adaptor 8×50ml/32×10ml)	4000 r/min	3500×g	Φ64×113
	No.12	32×10/15ml	4000 r/min	2810×g	Φ16×85-118
	No.13	8×50ml	4000 r/min	2810×g	Φ28×105-115
	No.14	48×5ml	4000 r/min	2800×g	Φ14×54
	No.15	148×7ml	4000 r/min	3080×g	Φ13×7





Packing&delivery

Remarks:     If you have any request of the centrifuge, please feel free to let us know. Your request will always draw our first attention.
