TGL20M-II High Speed Refrigerated Lab Centrifuge, high speed centrifuge, lab refrigerated centrifuge
FEATURES:
- Microprocessor control, operated by touch panel, LED display, operating data can be saved automatically, RCF value can be set directly for working, easy to use.
- Brushless converter motor which has high torque, high speed bearing from European that running smoothly and maintenance-free
- Multistage damping system, the Freon-free compressor from Europe, low noise and slight vibration, green.
- Steel body, stainless steel centrifugal chamber, imported of key components with high quality, durable and easy to clean
- with overspeed, door interlock, unbalance protection function, instrument and rotor lifespan calculation function, the rotor can be disinfected at high temperature & high pressure to ensure safety.
- Pre-cooling design for chamber, fast cooling. Proprietary SCT speed control design, fast acceleration and deceleration, high efficiency.
- Adjustable acceleration and deceleration from grade 0 to 9 or directly set the time of Accel/Decel, and can be store 40 kinds of self-defining operating models, to achieve the best centrifugal result.
- Hold-on and transient centrifuging, easy to diversify centrifuging.
- Multifunctional, can centrifuge at both high speed and low speed with large volume swing rotor
- This model can be widely used for medical, food industry inspection, pesticide residue testing etc.
TECHNICAL PARAMETER:
Name |
TGL20M-II High Speed Refrigerated Lab Centrifuge, high speed centrifuge, lab refrigerated centrifuge |
Maximum RPM |
21,000r/min |
Maximum RCF |
30,700 x g |
Maximum Capacity |
3000ml |
Temperature Range |
-20°C - +40°C |
Time Range |
0-999min/sec |
Speed Accuracy |
±20r/min |
Temperature Accuracy |
±1°C |
Noice |
≤60dB |
Power supply |
AC220V, 50Hz,18A |
Dimension |
800 x 700 x 400 mm |
Net Weight |
110 kg |
Rotors
Rotor Type |
Rotor No. |
Capacity (ml) |
Max Speed (r/min) |
Max RCF (xg) |
Dimension of tube (mm) |

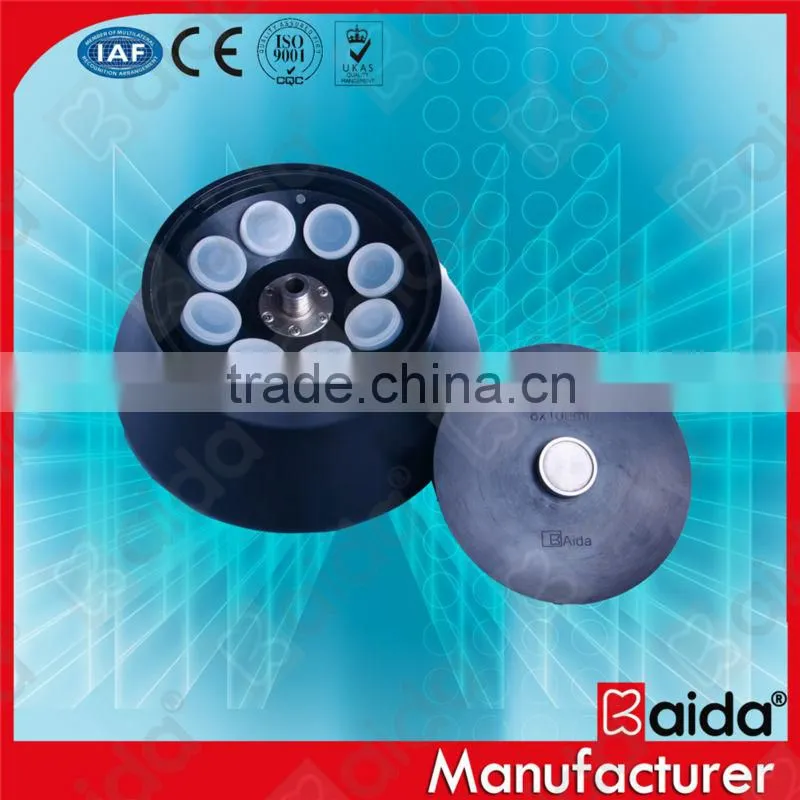

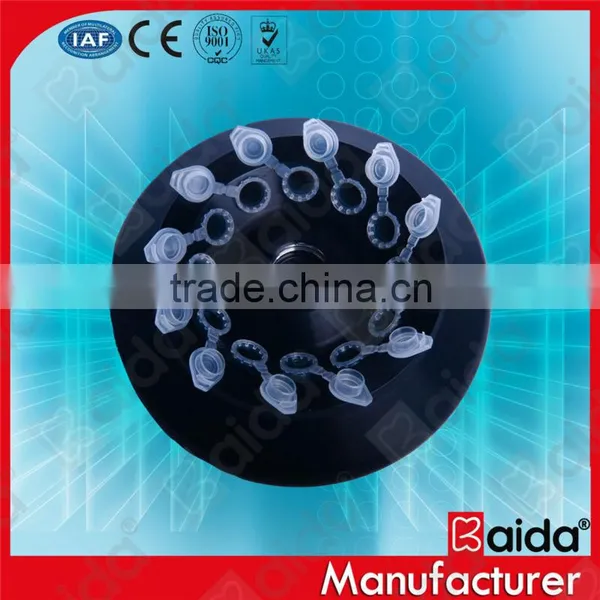

Angle rotor |
6 |
12x 1.5/2.0ml |
21000 |
30700 |
Φ10x42 |

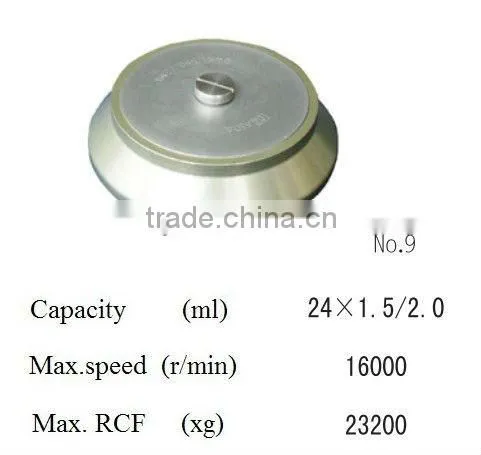

9 |
24x 1.5/2.0ml |
16000 |
23200 |
Φ10x42 |
|
11 |
18x0.5ml |
16000 |
17800 |
Φ8x32 |
|
12 |
10x5ml |
16000 |
17420 |
Φ14x54 |
|
16 |
12x10ml |
15000 |
23120 |
Φ16x81 |
|
18 |
48x0.5ml |
13000 |
14740 |
Φ8x32 |
|
22 |
6x50ml |
14000 |
20150 |
Φ28x105 |
|
31 |
4x100ml |
14000 |
20000 |
Φ38x124 |
|
52 |
8x50ml |
10000 |
11100 |
Φ29x106.5 |
|
53 |
12x30ml |
8000 |
7600 |
Φ25x93.5 |
|
54 |
20x10ml |
10000 |
10150 |
Φ16.5x85.5 |
|
56 |
32x1.5ml |
16000 |
20320 |
Φ11x41.5 |
|
57 |
30x2ml |
15000 |
24300 |
Φ10.5x42 |
|
58 |
36x2ml |
15000 |
22140 |
Φ10.5x42 |
|

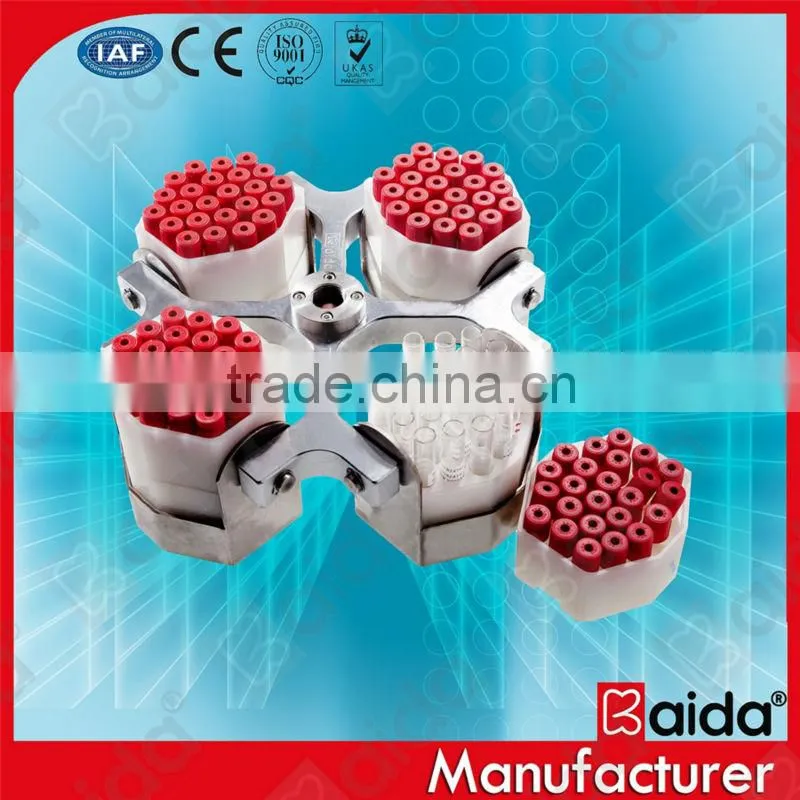

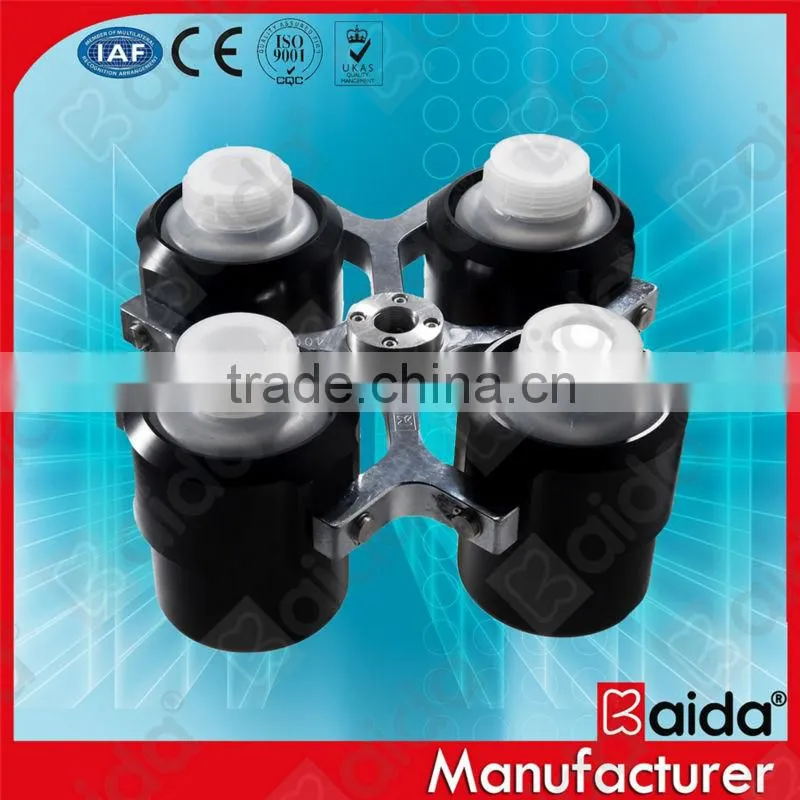

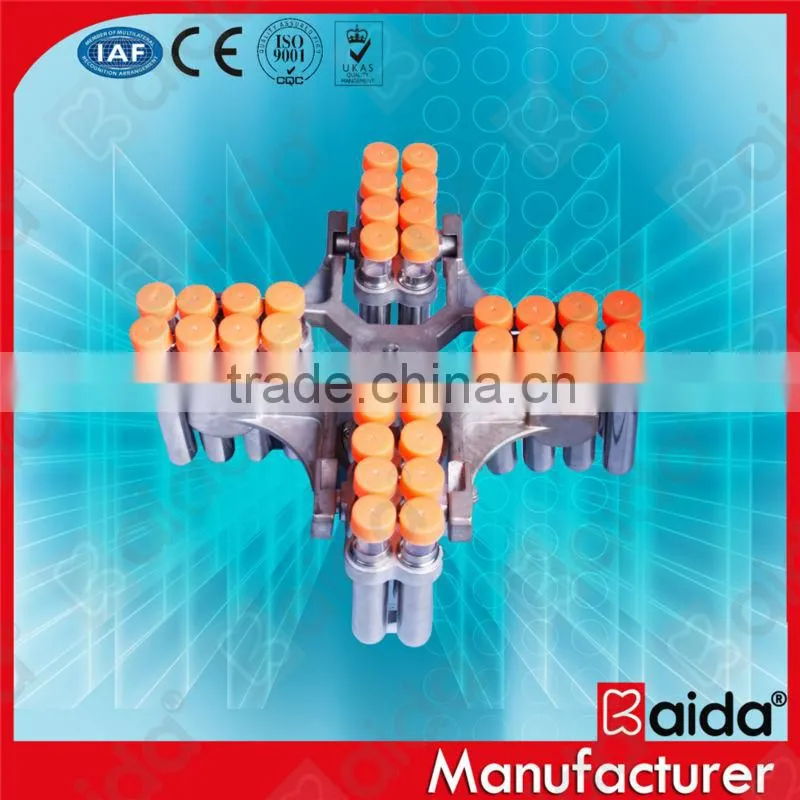

Swing-out rotor |
63 |
4x50/100ml |
5000 |
4390 |
Φ38x124 |
69 |
4x500ml |
4000 |
3580 |
Φ80x140 |
|
Adaptor |
12x50ml/8x100ml |
4000 |
3580 |
|
|
70 |
4x250ml |
4000 |
3500 |
Φ64x113 |
|
Adaptor |
8x50ml/36x10ml |
4000 |
3500 |
|
|
71 |
4x750ml |
4000 |
3580 |
Φ99x130 |
|
77 |
32x10/15ml |
4000 |
2810 |
Φ16x85-118 |
|
81 |
8x50/100ml |
4000 |
2810 |
Φ28x105-115 |
|
82 |
48/40x5ml |
4000 |
2800 |
Φ14x54 |
|

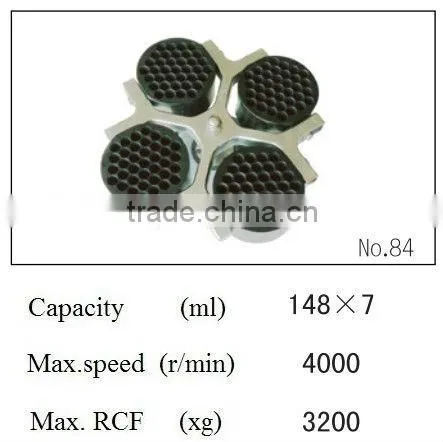

84 |
148x7ml |
4000 |
3200 |
Immuno tube |
|
84 |
120x7ml |
4000 |
3200 |
Vacuum blood collection tube |
|

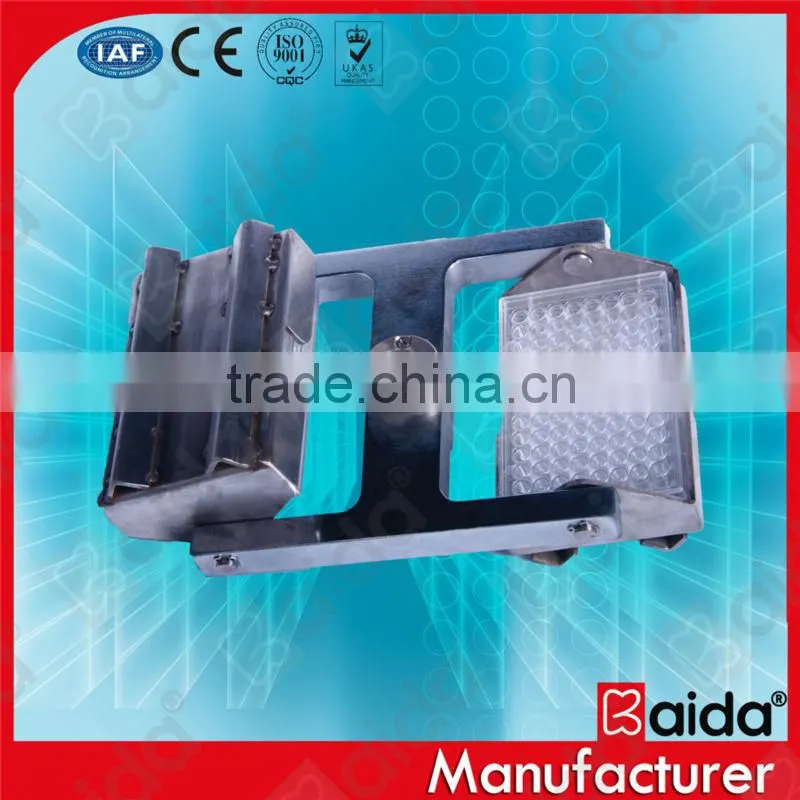

Microplate rotor |
44 |
2x48 holes |
4000 |
2300 |
Microplate |
44 |
2x96 holes |
4000 |
2300 |
Microplate |
TGL20M-II High Speed Refrigerated Lab Centrifuge, high speed centrifuge, lab refrigerated centrifuge
TGL20M-II High Speed Refrigerated Lab Centrifuge, high speed centrifuge, lab refrigerated centrifuge
TGL20M-II High Speed Refrigerated Lab Centrifuge, high speed centrifuge, lab refrigerated centrifuge
TGL20M-II High Speed Refrigerated Lab Centrifuge, high speed centrifuge, lab refrigerated centrifuge
TGL20M-II High Speed Refrigerated Lab Centrifuge, high speed centrifuge, lab refrigerated centrifuge
CERTIFICATIONS OF CE,ISO9001:2008,ISO13485
TGL20M-II High Speed Refrigerated Lab Centrifuge, high speed centrifuge, lab refrigerated centrifuge WORKING FLOW:
