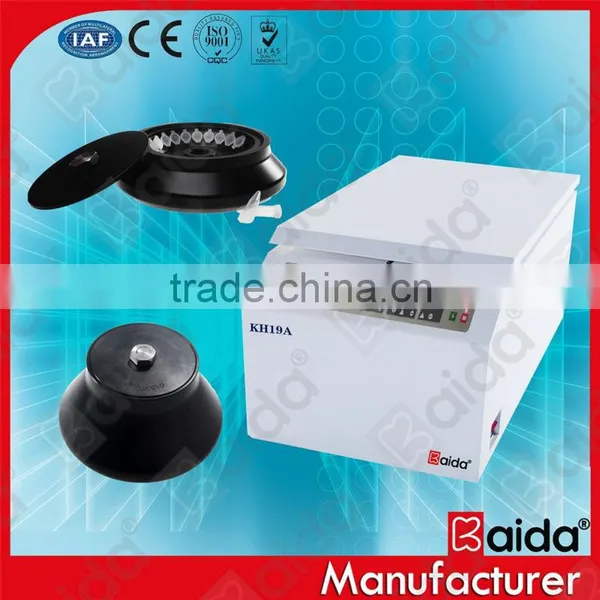

KH19A Benchtop Brushless High Speed laboratory Centrifuge
Features:
1. Advanced Control System, Excellent separation
1) 10 kinds of Accel/Decel modes can be selected; User can set up the operate parameter by themselves, to achieve the best centrifugal result.
2) Short running function, easy for diversified centrifugation.
3) Proprietary SCT speed control technical, high efficiency.
4) Proprietary SBT soft brake control technical, to avoid mix up and ensure get maximum specimen.
2. High Safety, Ease of use
1) Automatic rotor identification system, no need to select rotor number.
2) Over temperature, over speed, lid and unbalanced protection.
3) Steel body, Stainless steel chamber, Steel Protective sleeve.
4) Can take the rotor with aerosol-tight lid for use with hazardous samples.
3. Friendly Display, Humanity Operate
1) LCD, LED multiple-screen display, the Program, Accel/Decel modes, RPM/RCF, Time, Temperature are all easy to set up without any key combination.
2) Microprocessor control, operated data can be saved automatically, can start the instrument with RCF directly, can be stored and use 40 kinds of self-defining operating modes directly by user-self.
4. Good parts, Reliable and longlasting
1) Brushless motor which has high torque, "SKF" supper speed bearing, Freon-free compressor from Europe.
2) Aerospace rubber for damping, super duralumin alloy from Aluminum Corporation of China Limited (CHALCO).
Technical Parameter
Model |
KH19A |
Max Speed |
16600r/min |
Max Rcf |
19200×g |
Max Capacity |
300ml |
Speed Accuracy |
±30r/min |
Temperature Range |
-20°C-+40°C |
Temperature Accuracy |
±1°C |
Time Range |
1-999min |
Power Supply |
AC 220V 50Hz 15A |
Noise |
≤65dB |
Dimension |
400×350×340mm |
Weight |
20kg |

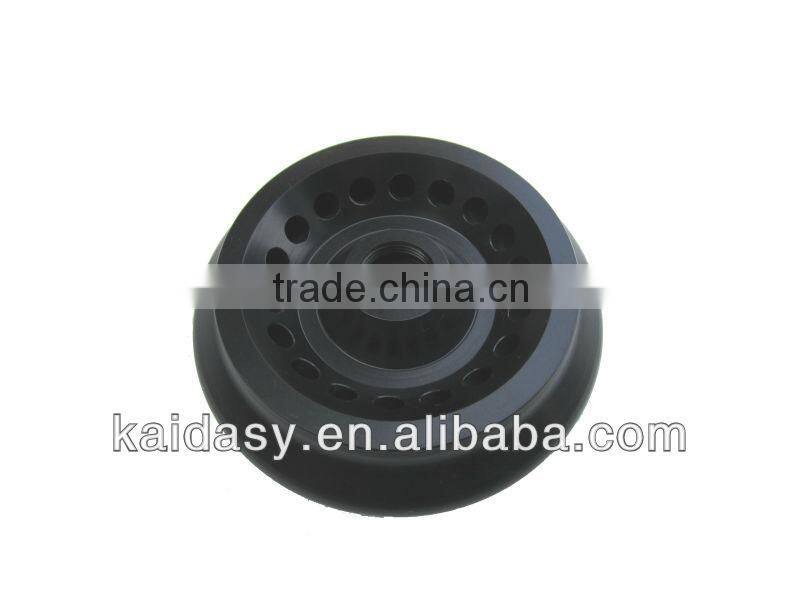

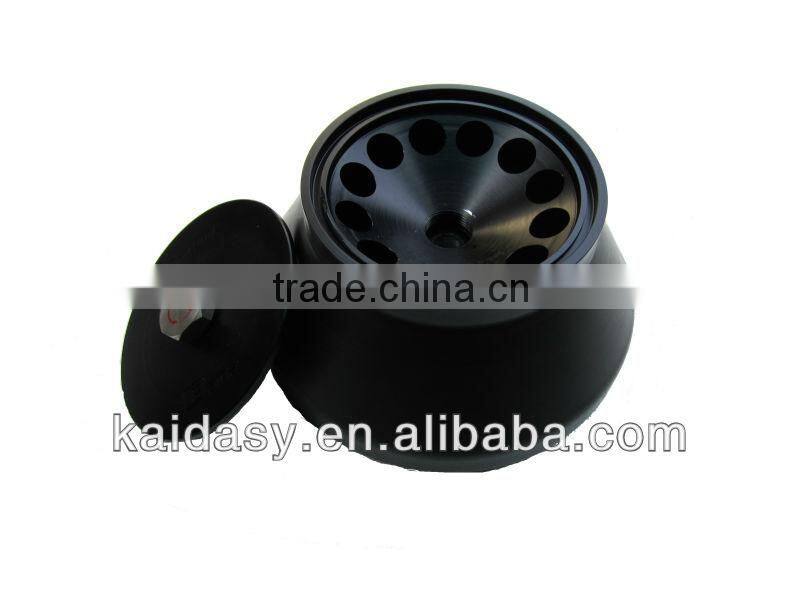

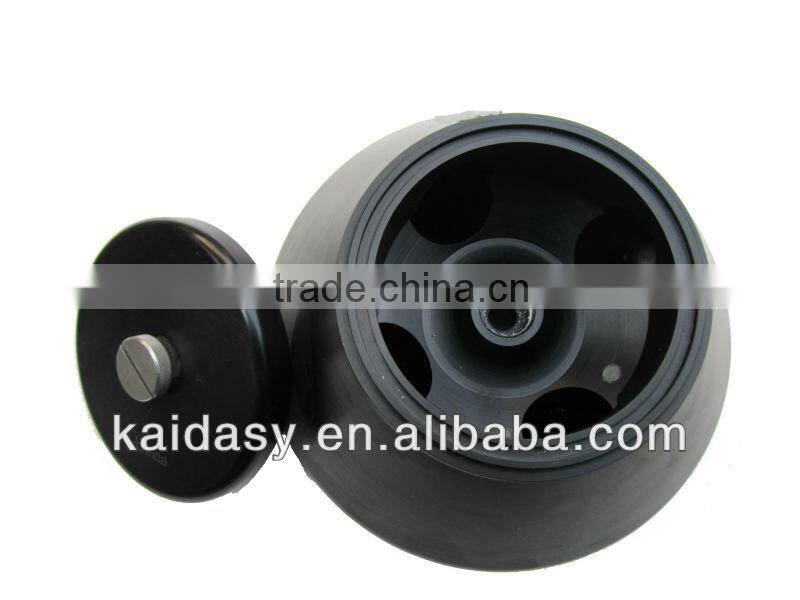

Rotor
Rotor Type |
Number |
Capacity |
Max Speed (r/min) |
Max RCF(×g) |
Dimension of tube (mm) |
Angle Rotor |
No.1 |
12×1.5ml |
16600 r/min |
19200×g |
Φ10×42 |
No.2 |
18×0.5ml |
16600 r/min |
19200×g |
Φ8×32 |
|
No.3 |
24×1.5ml/2.0ml |
13000 r/min |
16060×g |
Φ10×42 |
|
No.4 |
48×0.5ml |
13000 r/min |
14740×g |
Φ8×32 |
|
| No.5 | 10×5ml |
13000 r/min |
11500×g |
Φ14×54 |
|
No.6 |
12×10ml |
12000 r/min |
14800×g |
Φ16×81 |
|
No.7 |
6×50ml |
11000 r/min |
14610×g |
Φ28×105 |
|
Microplate Rotor |
No.8 |
2×48 Holes |
3000 r/min |
1400×g |
Microplate Rotor |
WORKING FLOW:
Remarks:
If you have any request of the centrifuge, please feel free to let us know. Your request will always draw our first attention
