Specifications
sedimentation centrifuge1.1 year warranty
2.wholesale price, fast delivery
3. LED&LCD display, easy to use,durable
CE&ISO
DL6M pharmaceutical machinery sedimentation centrifuge
DL6M pharmaceutical machinery sedimentation centrifuge
Our company offical website:
We warranty our products for 1 year!
1. Large Capacity Blood Bank Refrigerated Centrifuge with microprocessor control, operated by touch panel, LED &LCD display, operated data can be saved automatically, RCF value can be set directly for working, easy to use.
2.Blood Refrigerated Centrifuge with brushless converter motor which has high torque, High speed bearing from Europe, smoothly running and maintenance-free.
3. Multistage damping system, the Freon-free compressor from Europe, low noise and slight vibration, green.
4. Steel body, stainless steel centrifugal chamber, imports of key components, durable and easy to clean.
5.This Centrifuge with rotor identification system, over speed, over temperature, door interlock, unbalanced protection. The function of rotor service life calculation ensures safety.
6. Pre-cooling design for chamber, fast cooling. Proprietary SCT speed control design, fast acceleration and deceleration, high efficiency.
7.Adjustable acceleration and deceleration from grade 0 to 9 or directly set the time of Accel/Decel, and can be store 40 kinds of self-defining operating models, to achieve the best centrifugal result.
8.Proprietary SBT control technique &rotor design, to avoid mix up, ensure getting maximum specimen.
9.Hold-on and transient centrifuging, easy to diversification centrifugation.
10. Blood Bank Refrigerated Centrifuge can be fit for 5ml,7ml,10ml,15ml,30ml,50ml etc kinds of adaptors, which meet the customers’ multiple need. Blood Bank Refrigerated Centrifuge widely used in radicalization immunity, biochemistry, pharmacy research and production etc, especially in separation and purification of blood products.
medical refrigerated centrifuge technical parameter
Model |
DL6M |
Max Speed |
6000r/min |
Max RCF |
6680×g |
Max Capacity |
6000ml |
Speed Accuracy |
±20r/min |
Temperature Range |
-20°C--40°C |
Temperature Accuracy |
±1°C |
Time Range |
0-99H59min59s |
Power Supply |
AC 220V 50Hz 35A |
Noise |
≤65dB |
Dimension |
830×720×1250(mm) |
Weight |
268kg |
medical refrigerated centrifuge rotors
Low Speed Refrigerated Blood Bank Centrifuge | |
Selectable Rotors of DL6M |
Fixed Angle Rotor of 6 x 300ml |
Fixed Angle Rotor of 6 x 500ml | |
Swing-out Rotor of 6 x 1000ml with Windshield | |
Swing-out Rotor of 6x1000ml with Windshield; Oval buckets with liner special for blood bags | |
medical refrigerated centrifuge rotor:
Model |
Number |
Capacity |
Max speed (r/min) |
Max RCF (×g) |
Dimension of tube (mm) |
Angle Rotor |
No.33 |
6×500ml |
6000 |
6680 |
Φ74x168 |
No.29 |
6×300ml |
6000 |
5650 |
Φ62x139 |
|
Swing Rotor |
No.65 |
6×1000ml (round bucket) |
4200 |
5100 |
Φ100x175 |
No.65 |
6×1000ml (rectangle bucket) |
4200 |
5100 |
12pieces of 200ml blood bags |
Remarks: If you have any question please feel free to contact me.
skype: lucky.wendy90
Product photos :

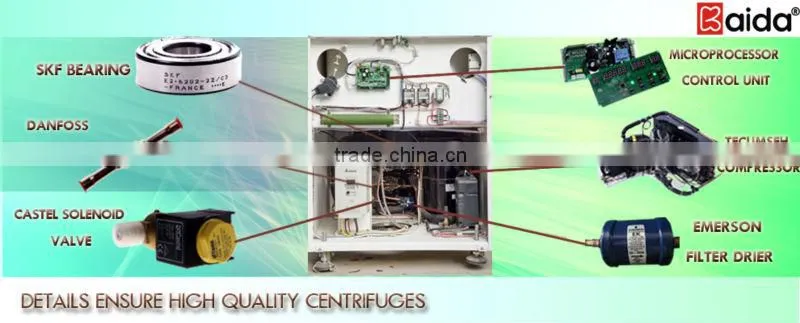

Details components in the centrifuges
Danfoss checking valve for centrifuge
SKF bearing in the power-driven machine for centrifuge
frequency converter for centrifuge
microcompressor control pannel for centrifuge
Compressor unit for centrifuge
Compressor unit-2 for centrifuge
Packing and delivery
