Specifications
High Speed angle rotor Lab Centrifuge1.brushless
2.Max.16600r/min
3.10 grade of accel/decel modes
4.Under ISO9001,ISO13485

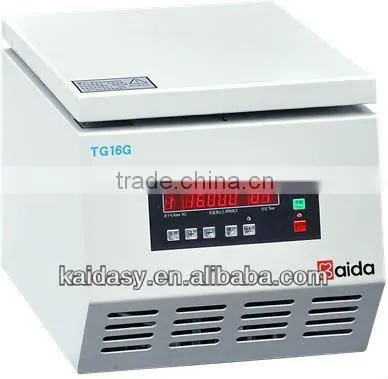

16600rpm High Speed angle rotor Lab Centrifuge TG16G
Laboratory centrifuge with fixed angle rotor
high speed micro centrifuge
bench top centrifuge
+86-15607496255
This Benchtop Univeral High speed Centrifuge is widely used in the field of Pathology Department, PCR, Chemical industry ( nanometre), liquid phase supporting (quality test), environment protection ( Bacteria ) etc.
FEATURES:
- microcomputer with touching panel and digital display, operating data can be saved automatically, RCF value can be set directly for working, ease to use
- Brushless motor without powder pollution, quick in speed down. Super high speed bearing from europe, running smoothly and maintenance free
- Multistage damping system, the freon-free compressor from Europe, low noise and slight vibration, green
- Steel body, stainless steel centrifugal chamber, imports of key components with high quality, durable and easy to clean
- Has function of verspeed, door interlock, unbalanced protection. The rotor can be disinfected at high temperature and high pressure to ensure safety.
- Proprietary air flow guide design, small temperature-rise of centrifuge chamber, can effectively protect the sample
TECHNICAL PARAMETER:
Model |
TG16G |
Max Speed |
16600r/min |
Max RCF |
19200×g |
Max Capacity |
300ml |
Speed Accuracy |
±50r/min |
Time Range |
0-99min |
Power Supply |
AC 220V 50Hz 15A |
Noise |
≤65dB |
Dimension |
400×350×340(mm) |
Net Weight |
20kg |

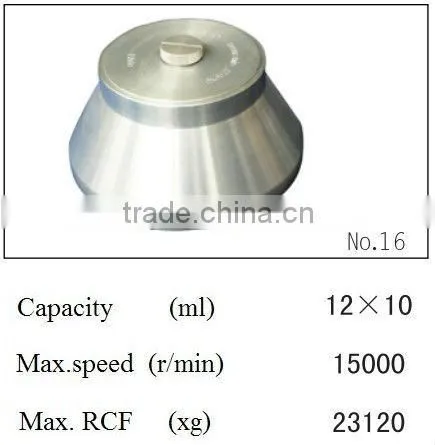

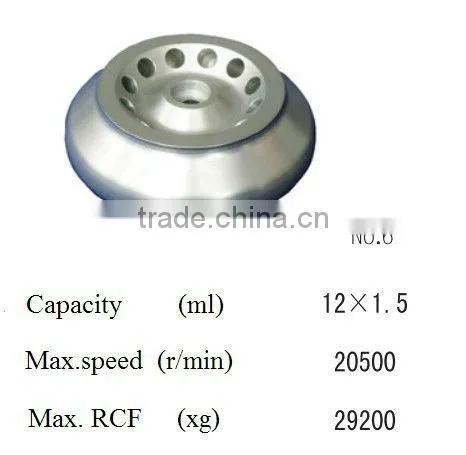

TG16G ROTOR
Model |
No. |
Capacity (ml) |
Max Speed (r/min) |
Max RCF (×g) |
Dimension of tube (mm) |
Angle Rotor |
6 |
12x1.5ml |
16600 |
19200 |
Φ10x42 |
11 |
18x0.5ml |
16600 |
19200 |
Φ8x32 |
|
9 |
24x1.5/2.0ml |
13000 |
16060 |
Φ10x42 |
|
18 |
48x0.5ml |
13000 |
14740 |
Φ8x32 |
|
12 |
10x5ml |
13000 |
11500 |
Φ14x54 |
|
16 |
12x10ml |
12000 |
14800 |
Φ16x81 |
|
22 |
6x50ml |
12000 |
14800 |
Φ28x105 |
CERTIFICATIONS OF ISO9001,ISO13485,CE:
Remarks:
If you have any question or requirement about the benchtop universal centrifuges and its accessories, pls feel free to contact us. We shall be glad to hear from you at any time. Thanks for all your attention and support! Judy
