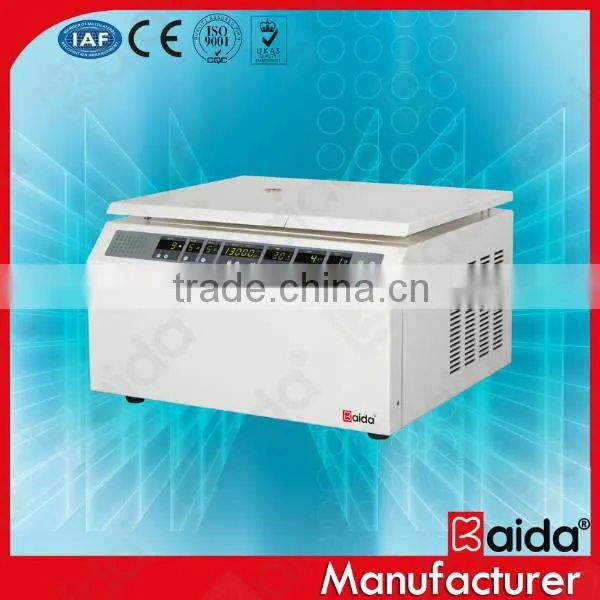

TGL16M Benchtop High speed Laboratory Centrifuge Machine
This benchtop high speed freezing centrifuges is indispensable instruments for separation in the fields of medicine, life sciences, and agricultural science, which can be equipped with various types of rotors in different specifications, so as to meet the large needs of various scientific research experiments and small amount of preparation.
FEATURES:
- Microprocessor control, operated by touch panel, LED display, operating data can be saved automatically, RCF value can be set directly for working, easy to use.
- Brushless converter motor without powder pollution, high speed bearing from European that running smoothly and maintenance-free
- Freon-free compressor, fast cooling, low noise and slight vibration, green.
- Steel body, stainless steel centrifugal chamber, imported of key components with high quality, durable and easy to clean
- overspeed, overtemperature, door interlock, unbalance protection function, the rotor can be disinfected at high temperature and high pressure to ensure safety.
TECHNICAL PARAMETER:
Model |
TGL16M |
Max RPM |
16600r/min |
Max RCF |
19200 x g |
Max Capacity |
300ml |
Temperature Range |
-20°C - +40°C |
Time Range |
0-99min |
Speed Accuracy |
±50r/min |
Temperature Accuracy |
±1°C |
Noise |
≤65dB |
Power supply |
AC220V 50Hz 15A |
Dimension |
600 x 580 x 370 mm |
Net Weight |
90 kg |
TGL16M ROTOR
Rotor Type |
Rotor No. |
Capacity (ml) |
Max Speed (r/min) |
Max RCF (xg) |
Dimension of tube (mm) |
Angle rotor |
6 |
12x 1.5ml |
16000 |
17800 |
Φ10x42 |
11 |
18x0.5ml |
16000 |
17800 |
Φ8x32 |
|
9 |
24x 1.5/2.0ml |
13000 |
16060 |
Φ10x42 |
|
12 |
10x5ml |
13000 |
11500 |
Φ14x54 |
|
16 |
12x10ml |
12000 |
14800 |
Φ16x81 |
|
18 |
48x0.5ml |
13000 |
14740 |
Φ8x32 |
|
22 |
6x50ml |
11000 |
14610 |
Φ28x105 |
|
Microplate rotor |
44 |
2x48 holes |
3000 |
1400 |
Microplate |

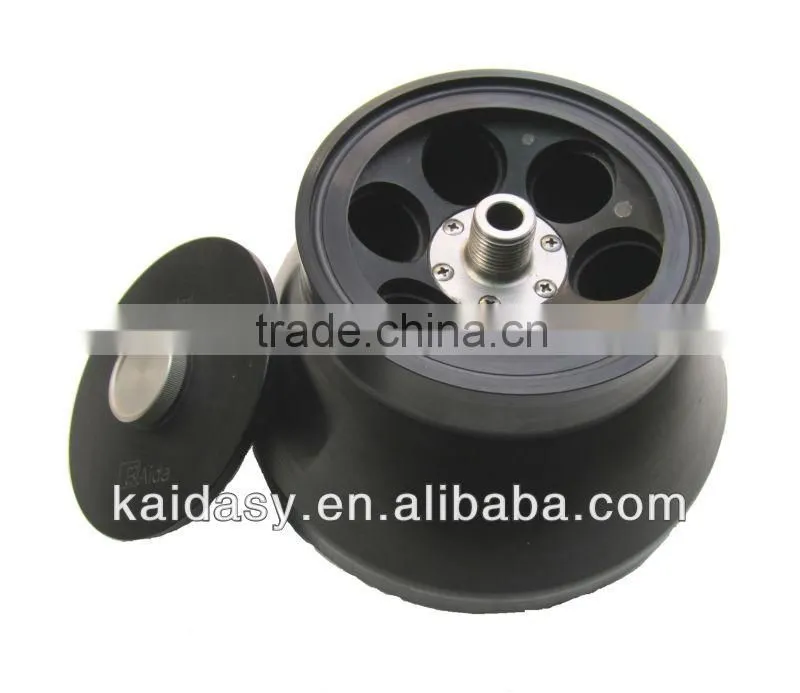

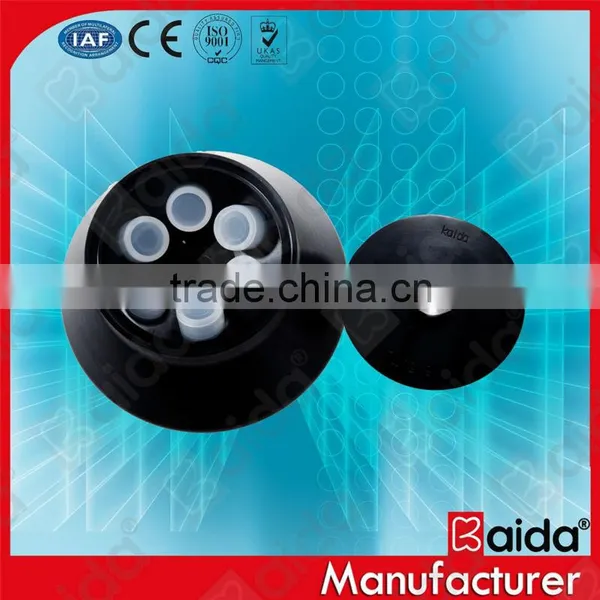

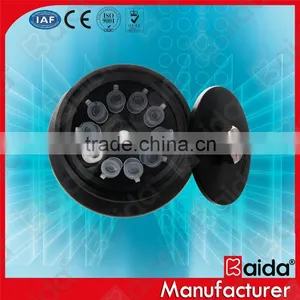

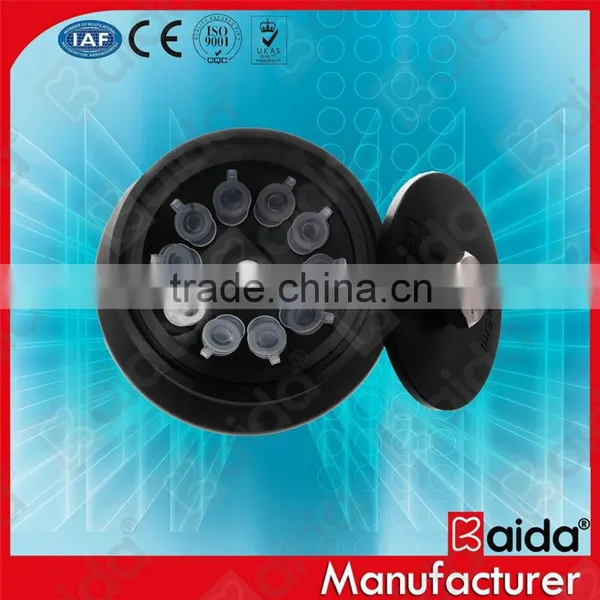

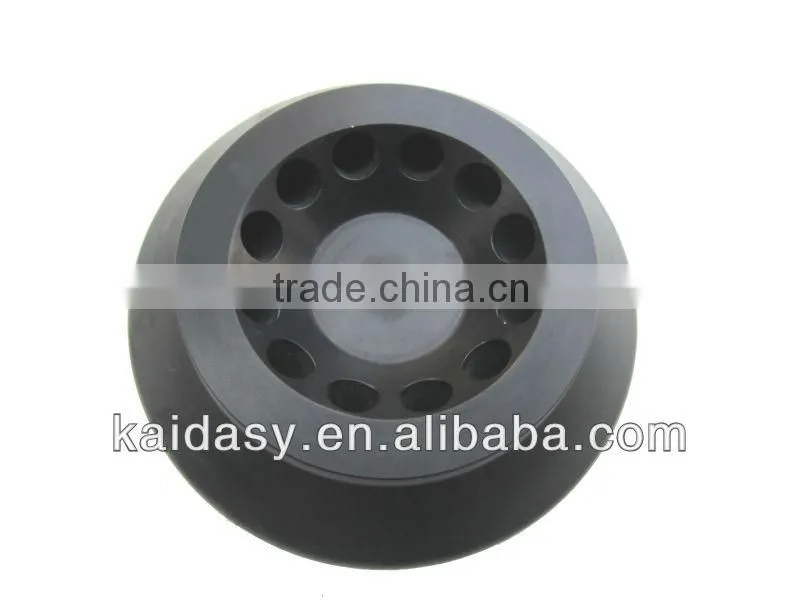

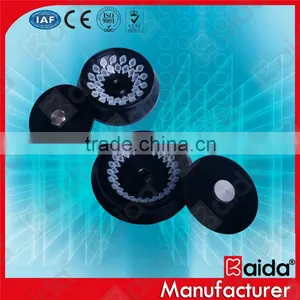

ROTOR PICTURES:
CERTIFICATIONS OF CE,ISO9001,ISO2003:
WORKING FLOW:
Remarks:
If you have any question or special requirement about the centrifuge equipments, pls don’t hesitate to contact us. We shall be glad to hear from you at any time. Thanks for all your kind attention and support!
