cryogenic liquid oxygen liquid nitrogen storage tan
We Bidragon engaged in manufacturing, supplying and exporting of a commendable range of Cryogenic Storage Tank.which with dimensions of 5
Cryotank or cryogenic tank is a tank that is used to store frozen biological material.
Cryotanks and cryogenics can be seen in many sci-fi movies but today, it is still an up and rising technology. The term “cryotank” refers to storage of super-cold fuels, such as liquid oxygen and liquid hydrogen.
Specifications:
Cryogenic tank for sale
1. Double wall vacuum-insulated
2. Pearl powder for insulating materials
3. Economy price

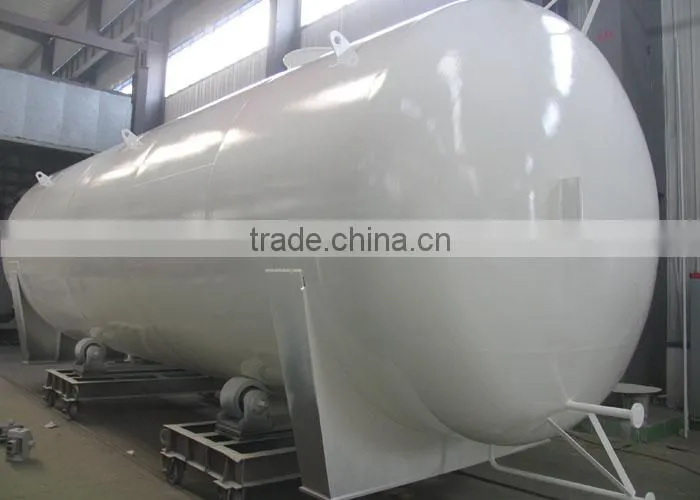

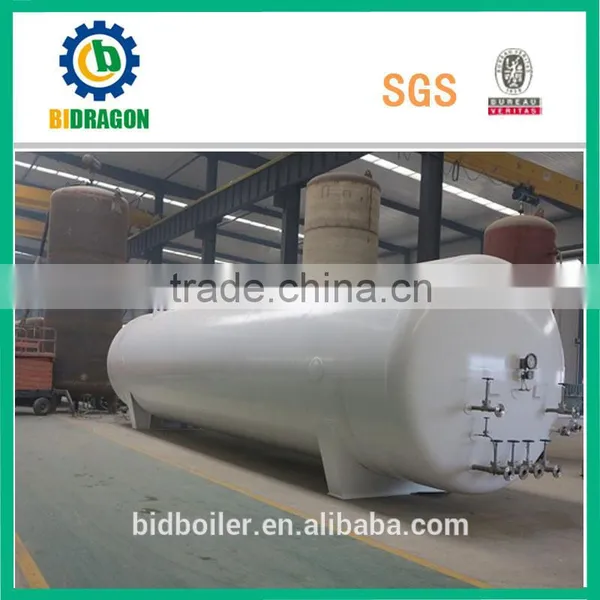

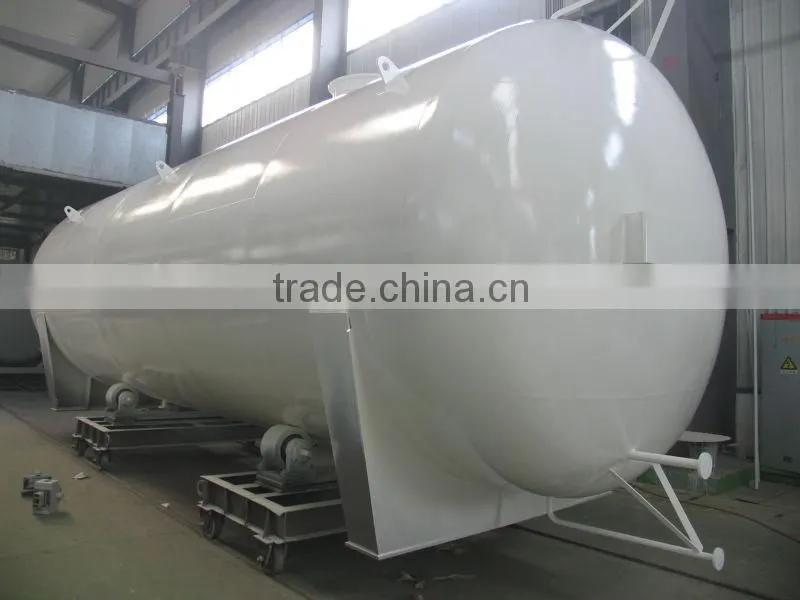

Cryogenic storage tank
Vertical or horizontal double wall vacuum-insulate
Inner tank made by 0Cr18Ni9 with TIG welding
Outer tank make by Q235-B or 345R
Operating pressure: 0.8/1.6MPa
Volume: 5-100 cubic meters
Working times: more than 10 years
Design times: 20 years
LO2,LN2,LAr Cryogenic Liquid Storage Tank (vacuum powder insulation) Main Parameters :
1 |
Available max. volume |
5m3 10m3 15 m3 20 m3 30 m3 50 m3 100 m3 |
2 |
working pressure |
8bar,16bar, |
| 3 | Min Design temperature |
-196°C |
4 |
Max Design temperature |
+50 °C |
5 |
Total Volume |
5.26m3, |
6 |
Effective volume |
5m3 |
7 |
Filling Ratio |
0.95 |
8 |
Inner tank Material |
0Cr18Ni9 |
9 |
Outside tank Material |
Q345-B |
10 |
Diameter |
1900mm |
11 |
Length |
5165mm |
12 |
Empty weight |
~4015kg |
13 |
Suitable |
LIN, LOX, LAr,LNG |
14 |
Insulation method |
vacuum powder or high vacuum multi-layer wrap insulation |
15 |
Medium |
liquid argon/ nature gas/ oxygen/nitrogen/ carbon dioxide |
Application:

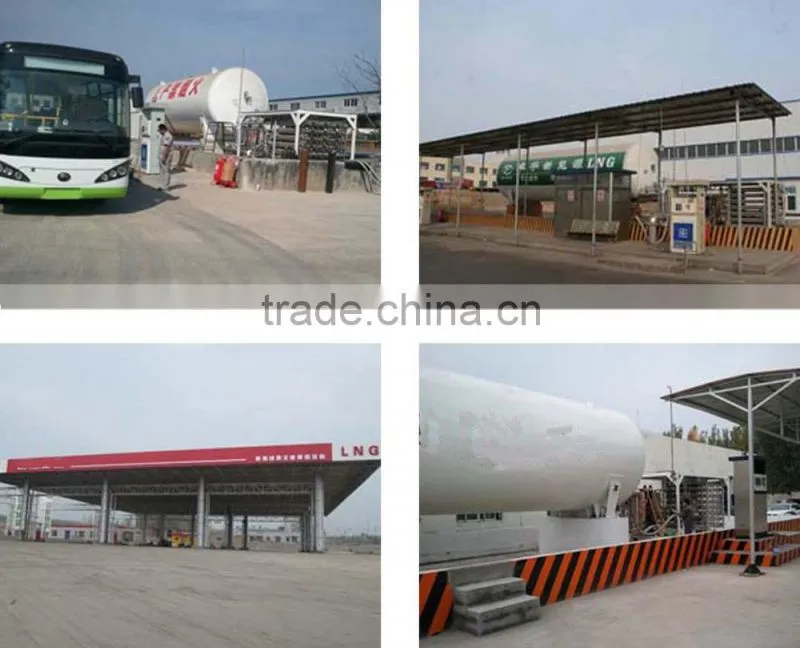

Widely used in LO2,LN2,LAr,LNG vaporizing station , peak-shaving station ,gas station, Liquefaction plants and so on.
Any more questions,please sent inquiry below!!!
