LNG cryogenic storage cylinder
- 200 Set / Sets per Month
- Qingdao Tianjin
- T/T Credit Card
- Spain-cryogenic shipping container KGSQ-liquid nitrogen storage system
- Chemical Sulphuric Acid Tank Trailer for Sale,V-Shape-Acid-Tanker-Trailer for exported
- IVF lab canes cryo freeze specimenliquid nitrogen dewar 47 liters YDS-47/127 with 10 canisters
- laboratory azot tank veterinary liquid nitrogen thermos to freeze semen 8l 10lter
- Bovine use transport liquid nitrogen tank nitrogen dryshipper horse semen 10 liter
- nitrogen cylinders sale used 30 litres wide open liquid nitrogen thermos for insemination
Product Details
Condition: | New | Capacity: | 175L | Place of Origin: | China |
Brand Name: | Bidragon | Model Number: | DPL450-175-2.0 | Dimension(L*W*H): | DN508*1510 |
Weight: | 119kg | Certification: | CE, ASME, ISO | Warranty: | 12 months |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

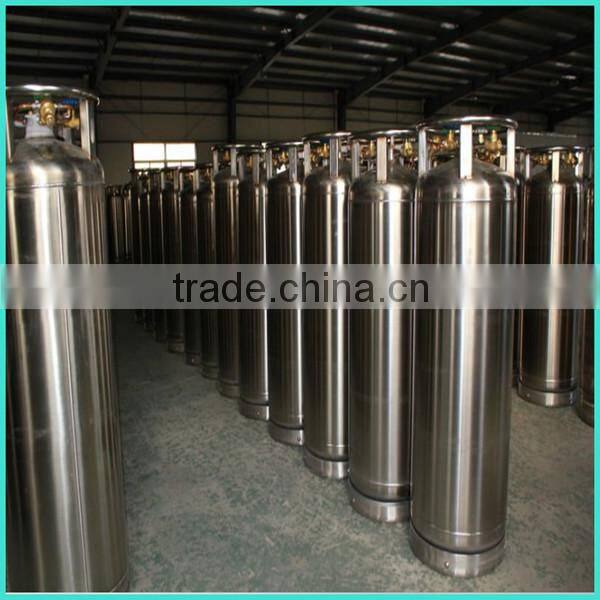

LNG cryogenic storage cylinder
Beijing Double Dragon International Industrial & Mining Machinery Co., Ltd (also known as Bidragon) is located in Beijing. We are a high and new technology enterprise, which is professionally engaged in producing cryogenic tanks, liquid oxygen tanks, liquid nitrogen tank, carbon dioxide tanks, LNG storage tanks and Dewar tanks.
Cryogenic Vessel is essentially a double walled cylindrical tank, annular space between inner and outer vessel is filled with insulating material and evacuated to a high vacuum to achieve minimum evaporation losses. The cold converter is fitted with pressure building arrangement with automatic pressure build - up regulator.
Brief introduction about dewar flask:

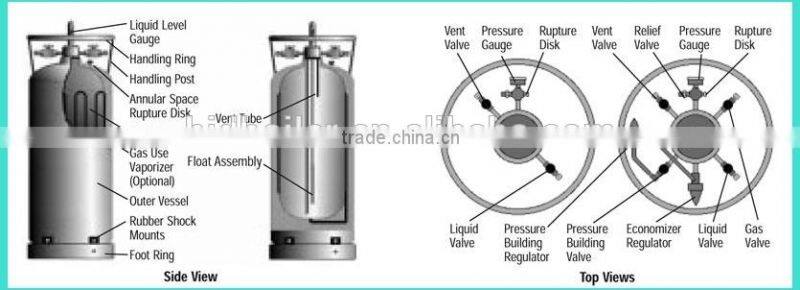

Firstly, outer structure of dewar flask: Dewar flask has four valves they are liquid valve, air valve, vent valve and pressurization valve as well as gas pressure gauge and level gauge.
Secondly, usage: Your company is using the dewar flask. The firs step is to connect the pipe where the dewar flask liquid vavle lies with evaporator by the high pressure metallic tube. After the confirmation of connecting, you can turn on the liquid valve. If the gas pressure to the workshop can not meet the demand, please turn on the pressurization valve. A few minutes later, the pressure will rise to the using demand. Then you can make use of it. If the dewar flask has no liquid phase and the pressure of gas phase is only 5kg, it means that the gas in dewar flask has used up. Please turn off the using valve and stop using.
Thirdly, some questions you should pay attention when using the storage
1.When the dewar flask storage has not been used, do not turn of the pressurization valve. You must check whether the pressurization valve is turned off tightly. Otherwise, the gas leak in the vessel.
2.You must turn off the pressurization valve when stop using. The pressurization valve is open only when it is used.
3.When thepressurization valve is turned open totally, the dewar flasks pressure gauge is no longer raise, than means there is no liquid phase only gas phase left in the vessel.
Performance:
1. Adopt double-wall vacuum powder thermal insulation technology. Superior quality control system, workmanship requirement and imported key components ensure the reliable and stable quality.
2. Apply high-quality ultra-low temperature thermal engineering expansive perlite as filling. Take helium-spectrum leakage test for complete cryogenic liquid tank. Good thermal-insulating effect, low evaporation loss and long life time.
3. Compact tank structure, advanced piping and flow-process design make operation simpler and safer as well as maintainance and repair easily.
4. Two types: Vertical type and horizontal type.

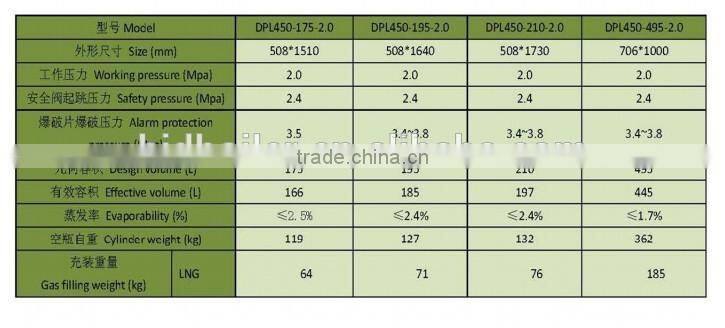

Some products technical parameter:
Our product includes:
1. Cryogenic Stationary Tank: 5m3 ~300m3
2. Cryogenic liquid movable tank, cryogenic trailer tank: 5m3~50m3
3.Cryogenic Trailer and Truck: 5m3~40m3
4. Cryogenic ISO tank container: 10ft, 12ft, 20ft, 40ft
5. Cryogenic Offshaore Tank: 10ft, 12ft
6: Cryogenic Handy Tank: 1000L, 2000L,3000L, 4000L, 5000L
7.Cryogenic cylinders: 175L, 195L,210L,450L
8. LNG vehicle cylinders
9. LNG gas supply system for marine
10. LNG vaporization equipment
11. LNG skid-mounted air filling equipment
12. Industrial Gas and LNG filling stations.
- During 5 days after signing contract by both parts, the seller will provide ichnography, construction basal chart and machine installation chart.
- The seller shall provide the Certificate and operating instruction of the equipment hereof and will send the engineer to guide installation of the machine if necessary.
- Quality Guarantee: The guarantee period for mainframe is one year (excluding the quick wear parts).
Some Questions From Customers:
Specifications: Gas Storage Tank (LAR/LIN/LOX/LCO2)
Medium:LAR/LIN/LOX/LCO2
Capacity: 175L-2000M3
Pressure:0.8/1.6/1.75/2.2MPA
Manufacture standard: GB150/ASME/EN
CERTIFICATE DOCS WILL BE HANDOVER THE FOLLOWING DOCS WITH THE TANK:
(1) Certificate of supervision and inspection.
(2) Copy of nameplate;
(3) Certificate of product quality;
(4) Product Certificate;
(5) Product data Sheet;
