The UHC filter astounding high light transmission brings better views of deep-sky-objects, BV assessed 24years factory1.25" UHC Filter

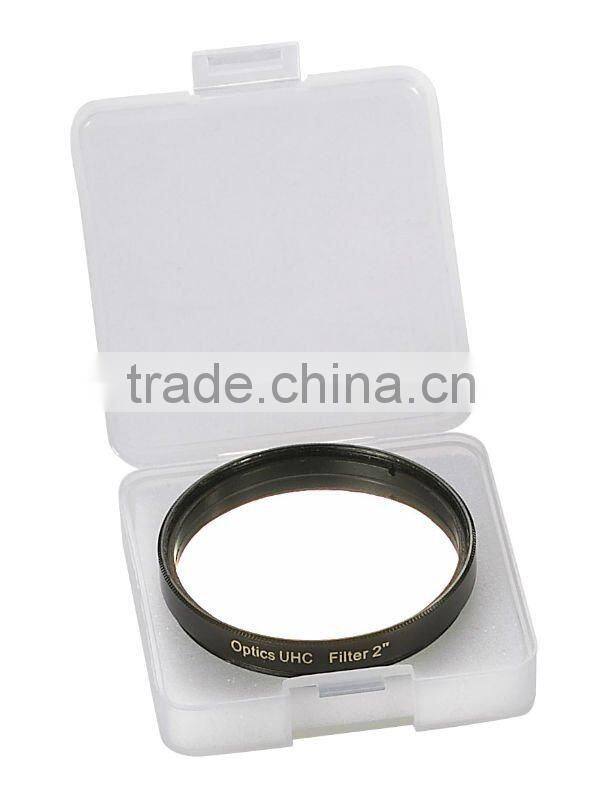

Kson supply 1.25" and 2" UHC Filter
The UHC (Ultra High Contrast) filter allows the transmission of nearly 100% of the radiation from both O-III and the H beta lines. Though the second window for the H-alpha-line is not intended for visual observing, it is important, if the filter is used with an electronic device. All annoying, scattered light from other wavelength sources, including local artificial light pollution, is reliably filtered out. With this strong blocking of the sky background an unexpected wealth of detail becomes visible for gas nebulae and planetary nebulae.
Main use
UHC filters’ astounding high light transmission brings better views of deep-sky-objects even to small telescopes! The high transmission of our optical glass filters means that enough light is available to allow successful visual observations with telescopes beginning at 2" (50mm) aperture.
Suitability
- Visual observation (dark skies): Verry good, for telescopes of all apertures and high exit pupil
- Visual observation (urban skies): Verry good, for telescops from 100 mm aperture
- Film photography: Reasonable, but very long exposure time
- CCD photography: Good, when used with an additional IR-block-filter
- DSLR photography (original): Good, colour balance shifted but contrast enhanced
- DSLR photography (astro modified): Verry good, colour balance is near perfect
- DSLR photography (MC modified): Good, when used with an additional IR-block-filter
- Webcam / Video (Planets): Unsuitable
- Webcam / Video (Deep Sky): Good, if light pollution is a big problem
Technical Data
- Transmission of nearly 100% of O-III and H-beta
- Transmission of 96% of H alpha
- Entire Blocking of annoying wavelengths
- Ideal All-round Deep Sky filter even for small telescopes
- Not sensitive to humidity or aging
- Scratch-resistant!
- Excellent carrier material. The optical Leitungs of your telescope is not reduced by the filter in any way.
- Parfocal with other filters
- Glass thickness: 1mm
- Completely resistant against high humidity, scratches and aging effects
- Diffraction limited, the filter will not reduce the optical performance of your telescope!
our filters are delivered in a high-quality, long lasting, filter box
