Contact Platform Support
Help CenterCamera Telescope
Negotiable
MOQ: 10 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Brand Name:
kson
Model Number:
Ekcentrik-Advanced ED80
Payment & Shipping
Payment Methods:
Port of Shipment:
guangzhou
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Brand Name
kson
Model Number
Ekcentrik-Advanced ED80
Specifications

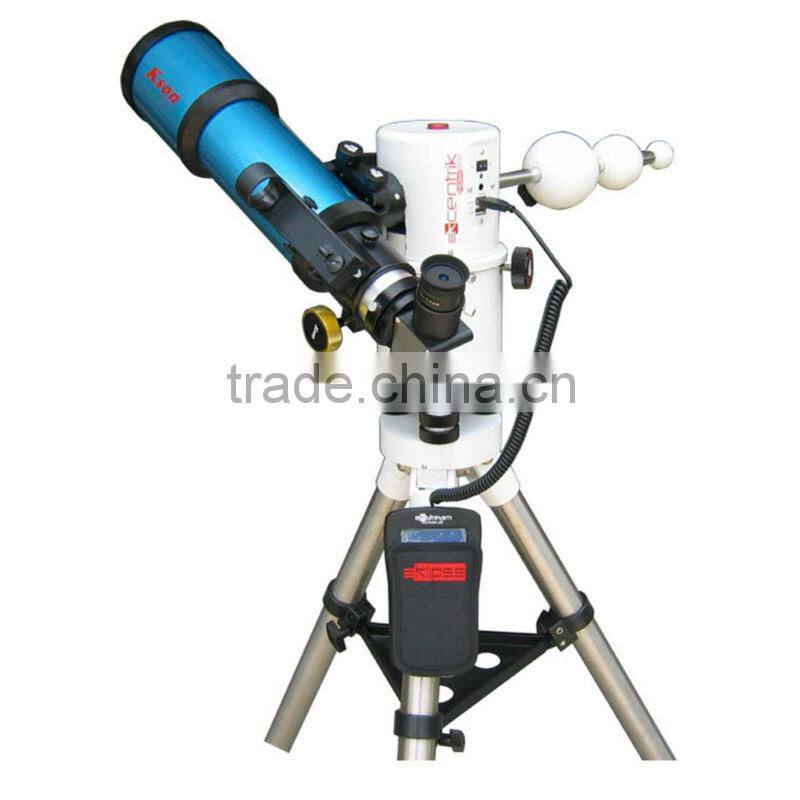

camera telescopeF=550mm, D=80mm,
Air-Spaced Achromatic Objective LensWith Multi-Coating
GOTO mount
|
Camera TELESCOPE
Model 5 |
Ekcentrik Ekinox A806.9(with advanced goto mount) | ||||||
| Objective Lens | 80mm aperture,550 focal length,F6.9, air-spaced Acgromatic lens with broadbrand multi-coating.it is hand figured and star tested lens.Broadhand Multi-coating on every surface to enhance transmission | ||||||
| Tube: | Machined Aluminum tube | ||||||
| Lens Cell | Stability treated precesion machined Provides | ||||||
| better and stable alignment | |||||||
| Mounting System | |||||||
| Focuser | 2.5" of travel,dual speed with brake and compression ring Genuine Starlight Feather touch focuser,with rotation collar.Or economical version with 2"single speed Crayford focuser with rotation collar | ||||||
| Finder | Red dot finder with 4 pattern reticle,clear window and adjustable dim dot | ||||||
| Dimensions | 3.3"diameter main tube,4.2" diameter dew sheild OTA length 22.5",weight 4kgs | ||||||
| Nylon case | Heavy duty padded Nylon case | ||||||
| Diagonal(optional) | 2"Aluminum made diagonal with 97% reflectivity dielectric coating,at least 1/8 wave mirror with brass compression rings on 2" and 1.25" adaptor | ||||||
| Packaging Size | 550X300X220mm | ||||||
| Shipping weight | 4.5kgs | ||||||
| Resolution(Dawes Limit) | 1.45" | ||||||
| Limiting Magnitude | 11.5 | ||||||
| Max Magnification | 160x | ||||||
| Lightgathering power(vs naked eye) | 130x | ||||||
| Mount type | Ekcentrik Advanced GOTO | ||||||
| Counterweight shaft length | 16MM | ||||||
| Counterweight shaft material | 30MM | ||||||
| Counterweight shaft diameter | stainless Steel | ||||||
| Counterweight | 3 kgs | ||||||
| Mount weight(without counterweight) | 6.5 kgs | ||||||
| Mount height with extension | 350mm | ||||||
| Mount adaptor | Vixen style | ||||||
| Payload max | 8kgs | ||||||
| Total Weight(with counterweight) | 9.5kgs | ||||||
| Motor Type | Microstep driven stepper motors | ||||||
| Motor resolution | 0.63 arc sec(or 2,064,000 steps/rev | ||||||
| Gear ratio | 1343.75 | ||||||
| Speed Rate | 1xsidereal to 2.3 degree(550x) | ||||||
| Material of mounts | All metal | ||||||
| Power Supply | 12 V DC 2Amp | ||||||
| Mount upgradeable | With wedge | ||||||
| Controller | Ekstream GOTO controller 30 with 32,323 objects | ||||||
| Level bubble | innovative T-shape level bubble for precision level | ||||||
| adjustment and better goto performance | |||||||
| Polar alignment scope | Easy to use red dot polar sight included | ||||||
| Backlash Compensation | BY software | ||||||
| Tripod | stainless Steel legs with 1.5" and 1.25" tubes | ||||||
| Tripod Height | 630mm-1080mm | ||||||
| Accessory Tray | specially designed for enhance stability of the tripod | ||||||
| Controller upgradeable | Via internet download | ||||||
| Package SIZE | 800x160x160mm | ||||||
| Gross Weight | 11kgs | ||||||
| SUPPOR LOAD | 5kgs | ||||||
| MOQ | 5pcs | ||||||
