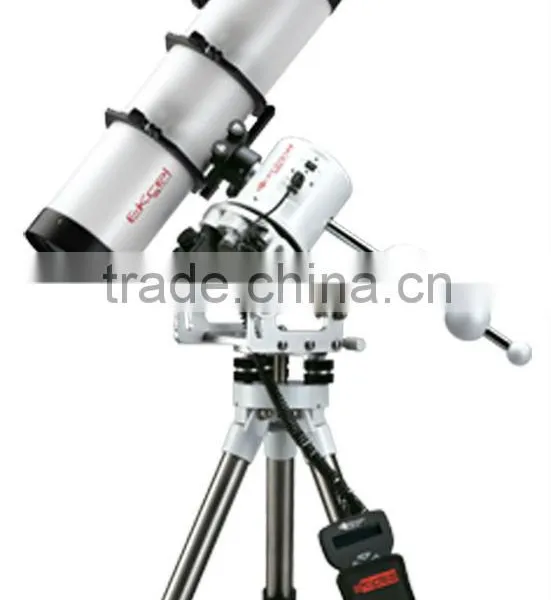

160mm Telescope

Name: 160mm Telescope
Brand: kson
SKU: 109867041
Availability: InStock

Negotiable MOQ: 20 Pieces (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

kson

Model Number:

Ekcentrik-W Np1605

Kson Optics-Electronics Co., Ltd.

5Yrs

Payment & Shipping

Payment Methods:

Port of Shipment:

guangzhou

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name kson

Model Number Ekcentrik-W Np1605

Specifications

160mm telescope 25year telescope factory supply with lowest wholesale price, great

160mm telescope

Model 3:	Ekcentrik-W Ekcel 1336
Primary mirror	133mm aperture, 800mm focal length, parabolic mirror with diffraction limited
	resolution, higher reflectivity coating
Tube:	Rolled Zinc-plated steel, with pearlized white finished
Mirror Cell	Stability treated die-cast Aluminum, provides better and stable alignment
Mounting System	Aluminum made deluxe dual mounting rings with vixen style plate
Focuser	2" Standard Crayford focuser, with brass compression rings on 2" and 1.25" adaptor
Eyepieces	1.25" Plössl 25mm and Plössl 10mm
Finder	Red dot finder with 30mm clear window and adjustable dim dot
Dimensions	171 mm diameter main tube, OTA length 716mm, weights 5.6kgs
Nylon case(Optional)	Heavy duty padded Nylon case
Packaging Size	1.16M³/10pcs
Shipping weight	9Kgs
Resolution(Dawes Limit)	0.872"
Limiting Magnitude	12.62
Max Magnification	288x when the air is steady
Lightgathering power(vs naked eye)	361
Overall Package Size	1.16M³/10pcs

Mount type	wedge style EQ with goto
Counterweight shaft length	16MM
Counterweight shaft material	30MM
Counterweight shaft diameter	Chrome-plated Steel
Counterweight	3 kgs
Mount weight(without counterweight)	6.5 kgs
Mount height with extension	350mm
Mount adaptor	Vixen style
Payload max	8kgs (5.5kgs for photography)
Total Weight(with counterweight)	9.5kgs
Motor Type	Microstep driven stepper motors
Motor resolution	0.148 arc sec(or 8,714,264 steps/rev)
Gear ratio	680.83
Speed Rate	1x sidereal to 3 degree(720x)
Material of mounts	All metal
Power Supply	12 V DC 2Amp
Mount upgradeable	With wedge
Controller	Ekstream GOTO controller 30 with 32,323 objects
Level bubble	8' accuracy level-bubble precision level adjustment and better goto performance
Polar alignment scope	Easy to use red dot polar sight included
Backlash Compensation	By software
Tripod	stainless Steel legs with 1.5" and 1.25" tubes
Tripod Height	630mm-1080mm
Accessory Tray	specially designed for enhance stablity of the tripod
Countroller upgradeable	Via internet download
