Specifications

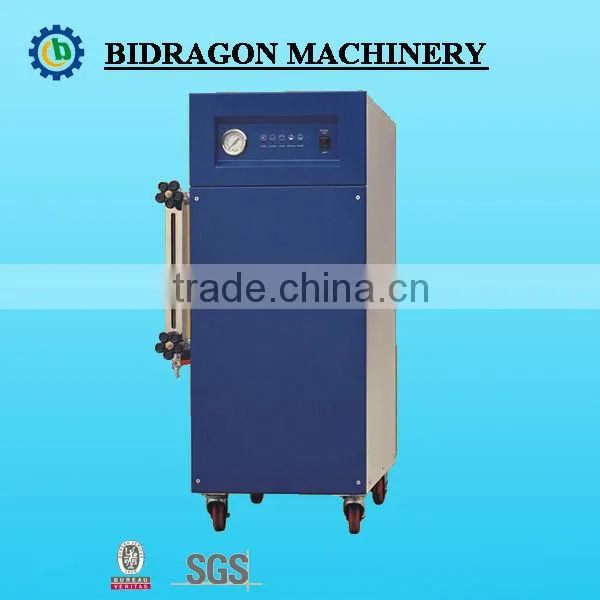

bidragon electric steam generator with CE certificate1.high thermal efficiency electric steam generator
2.automatic
bidragon electric steam generator with CE certificate
1.Introduction of electric steam generator :
The LDR series Electrical Heating Steam Feeding Device is a steam-producing device. It is made up of container, control group, water-feeding pump, electrical heating pipe groupware, liquid level controller, relief valve, and etc, and it can control its course automatically. This device turns the water in the container into high-pressure steam by the electrical heating pipe groupware.
2. Why Choose Bidragon?
1. High efficiency: more than 98%
2. Long lifespan: seamless stainless steel pipe has long lifespan
3. Long working hours: our electric steam boiler can work continuously for 10000 hours, normal standard is 3000 hours.
4. Siemens PLC control system
5. Beautiful apprearence
6.Water feeding automatically
3.Technical parameters:
Model |
Steam Output Kg/h |
Rated Power KW |
Rated Operating Current A |
Electric Cable Parameter |
Outline Dimension mm |
Weight Kg |
LDR0.05-0.7 |
50 |
36 |
55 |
3*25+2(Copper Cable) |
600X1000X1500 |
90 |
LDR0.06-0.7 |
58 |
42 |
64 |
3*25+2(Copper Cable) |
600X1000X1500 |
230 |
LDR0.07-0.7 |
68 |
48 |
73 |
3*25+2(Copper Cable) |
600X1000X1500 |
230 |
LDR0.08-0.7 |
75 |
54 |
82 |
3*35+2(Copper Cable) |
600X1000X1500 |
230 |
4. Application Scope
Home-use:for heating water,cooking,high-temperature pasteurization etc..
Industry-use:Provide steam for steam iron and ironing table,desinsection,reaction kettle,steam curning etc..
5. Picture Presentation

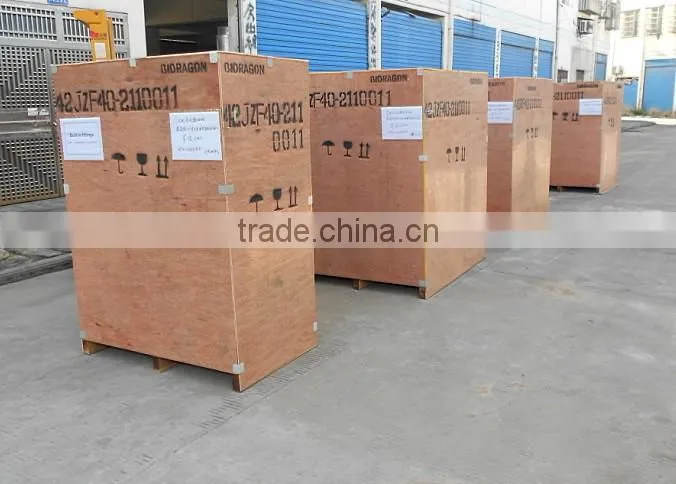

Shipment package

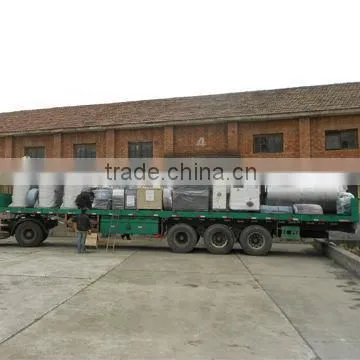

Delivery
7. Certificates
If you want to get more information, please contact us at any time!
