Industrial Autoclaves in Hot Selling
US$ 10,000 - 500,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Once Through
Usage:
Industrial
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao Shanghai Ningbo Tianjing
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Wood Pellet Burner for Hot Water BoilerUS$ 3,000 - 20,000MOQ: 1 Set -
Biomass Wood Pellet Burner for Hot Water BoilerUS$ 3,000 - 20,000MOQ: 1 Set
-
Bidragon Electric Steam Generator With CE CertificateUS$ 1 - 3MOQ: 1 Set
-
Bidragon Electric Steam GeneratorUS$ 1 - 3MOQ: 1 Set
-
Biomass Burner /automatic Biomass Pellet BurnerUS$ 3,000 - 20,000MOQ: 1 Set
Condition
New
Type
Once Through
Usage
Industrial
Structure
Other, Steam
Pressure
Low Pressure
Style
Horizontal
Fuel
Other, steam
Place of Origin
Henan, China
Brand Name
Bidragon autoclave
Model Number
FGZCS bidragon autoclave
Output
Other, heat
Dimension(L*W*H)
22474*2800*2890
Weight
17920
Certification
ISO9001, ASME, CE
After-sales Service Provided
Engineers available to service machinery overseas
Specifications
Industrial Autoclaves1. Autoclave
2. Germany technology
3. Simens electronic component
4. Automatic control system
Industrial Autoclaves in hot selling
1. Brief Introduction of Industrial autoclave

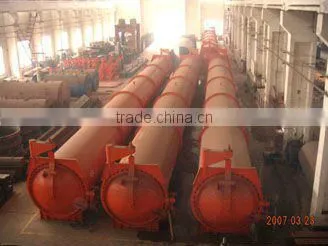

Industrial autoclaves (also known as still kettle) are pressure vessels used to process parts and materials, which require exposure to elevated pressure and temperature. The manufacture of high-performance components from advanced composites often requires autoclave processing.
2. Feature of Bidragon industrial autoclave

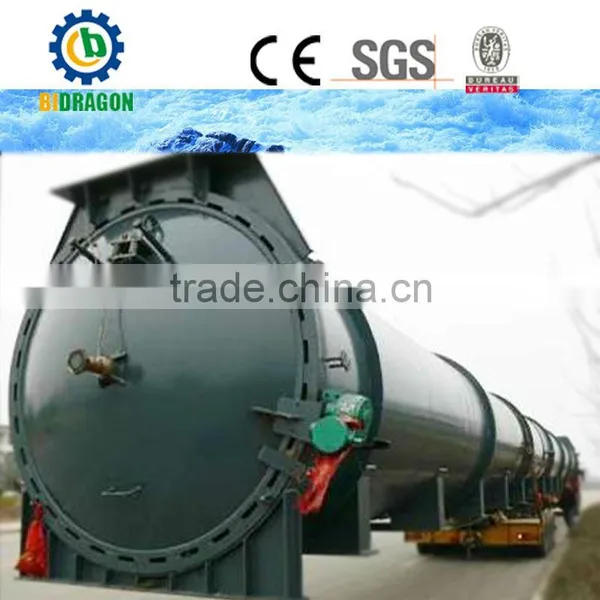

- Strict Quality Control: The autoclave is a steel horizontal drum device, with a cover pressed by the monoblock 16MnR steel plate and a cover flange made by 16Mn forging. The seam of pressure parts undergoes postwelding stress relief heat treatment and strict nondestructive testing according to relative standards.
- Safety interlocking protection device: The industrial autoclave door with moveable quick opening structure is opened and closed by the speed reducer. Equipped with a complete safety interlocking protection device, it maximally avoids the hidden danger of misoperation, and ensures safe operation of the autoclave and safe production of operators.
- Side opening and upper opening available: It has side opening and upper opening types for your choice. The side opening type uses a whirling arm opening mechanism with flexible rotation, low order operation and simple and convenient opening; the upper opening type uses a lever opening mechanism, wherein the lower end of the lever is connected with the autoclave door, the upper end is equipped with a counter weight device, the type has light
- High quality imported rubber seal rings: The autoclave door is sealed with imported rubber seal rings, which is easy to install. The most important is that these rubber rings are with high quality and durable.
- Flexible Support Available: The autoclave body is provided with a fixed support, a movable support and an end support in different parts, fitting expansion and contraction and ensuring normal operation and service life.
- Complete valves and accessory: Industrial autoclave is equipped with safety valve, pressure gage, temperature measurer, inlet valve and exhaust gas valve, selling ball valve, trap valve with decontamination tank available.
- Advanced internal equipment:Industrial autoclave internals is equipped steam distribution pipe and track; we also equipped sealing scour prevention cover and de-watering cover for customer’s need.
3. Application Scope
Industrial autoclave is an large-sized and heavy weight pressure vessels, which has been widely used in building material autoclaved curing hydrothermal reaction of aerated concrete block, concrete pipe pile, lime sand brick, fly ash brick, calcium silicate board with microporous , new light weight wall material, thermal insulation asbestos board and high strength gypsum.
Nowadays, industrial autoclave has been widely used in industries of chemical, medicine, rubber, lumber, gypsum, glass, insulating materials, textile and military project
4. Industrial Autoclave
| Model | Designed Pressure |
Designed Temperature |
Maximum Working Pressure |
Internal Track Gauge |
Inside Volume |
Weight | Outline Dimension |
| Mpa | °C | °C | mm | m3 | Kg | L*W*H | |
| FGZCS1.3-1.65*21*14 | 1.4 | 197 | 1.3 | 600 | 45 | 17920 | 22474*2800*2890 |
| FGZCS1.3-1.65*25*14 | 1.4 | 197 | 1.3 | 600 | 54 | 20500 | 26050*2800*2890 |
| FGZCS1.3-1.65*26*14 | 1.4 | 197 | 1.3 | 600 | 55 | 22620 | 27050*2800*2890 |
| FGZCS1.3-2*17*14 | 1.4 | 197 | 1.3 | 630 | 56 | 19000 | 18474*3150*3340 |
| FGZCS1.3-2*21*14 | 1.4 | 197 | 1.3 | 630 | 67.3 | 21955 | 22474*3150*3340 |
| FGZCS1.3-2*21.5*14 | 1.4 | 197 | 1.3 | 630 | 71.3 | 22240 | 22874*3150*3340 |
| FGZSS1.3-2*22.5*14 | 1.4 | 197 | 1.3 | 630 | 72.3 | 25080 | 23890*3150*4470 |
| FGZCS1.3-2*26*14 | 1.4 | 197 | 1.3 | 630 | 83 | 25740 | 27290*3150*3340 |
| FGZCS1.3-2*27*14 | 1.4 | 197 | 1.3 | 630 | 84.5 | 26595 | 28390*3150*3340 |
| FGZCS1.3-2*30*14 | 1.4 | 197 | 1.3 | 630 | 95.6 | 29240 | 31474*3150*3340 |
| FGZCS1.3-2*31*14 | 1.4 | 197 | 1.3 | 630 | 98.74 | 29930 | 32050*3150*3340 |
| FGZCS1.3-2*21*16 | 1.4 | 197 | 1.3 | 630 | 67.3 | 24050 | 22478*3150*3340 |
| FGZCS1.3-2*26*16 | 1.4 | 197 | 1.3 | 630 | 83 | 28330 | 27290*3150*3340 |
| FGZCS1.3-2*27*16 | 1.4 | 197 | 1.3 | 630 | 84.5 | 29270 | 29390*3150*3340 |
| FGZCS1.3-2*30*16 | 1.4 | 197 | 1.3 | 630 | 95.6 | 32330 | 31478*3150*3340 |
| FGZCS1.3-2*31*16 | 1.4 | 197 | 1.3 | 630 | 98.74 | 33000 | 32050*3150*3340 |
| FGZCS1.3-2.5*31*18 | 1.4 | 197 | 1.3 | 800 | 155.2 | 49810 | 32840*3650*4090 |
| FGZCS1.3-2.5*36*18 | 1.4 | 197 | 1.3 | 800 | 181 | 55315 | 37680*3650*4090 |
| FGZCS1.3-2.5*39*20 | 1.4 | 197 | 1.3 | 800 | 194.5 | 63420 | 40630*3650*4090 |
