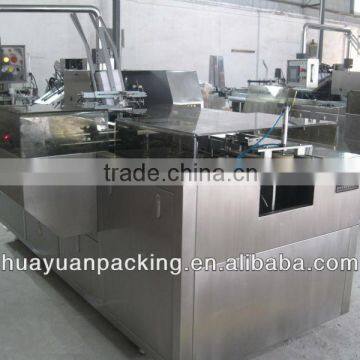

Automatic Carton Packing Machine

Name: Automatic Carton Packing Machine
Brand: Huayuan
SKU: 109854737
Availability: InStock

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Application:

Food, Medical, Other, Food, Medical, Machinery & Hardware

Packaging Type:

Cartons

Ruian Huayuan Packing Machinery Factory

Payment & Shipping

Payment Methods:

Port of Shipment:

NINGBO/SHANGHAI

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Application Food, Medical, Other, Food, Medical, Machinery & Hardware

Packaging Type Cartons

Packaging Material Paper

Automatic Grade Automatic

Driven Type Electric

Voltage 380V

Power 2.5KW

Place of Origin Zhejiang, China

Brand Name Huayuan

Model Number ZH-100

Weight 1200KGS

Dimension(L*W*H) 3250x1450x1550mm

Certification CE

After-sales Service Provided Overseas service center available

Specifications

1.Fully automatic horizontal cartoning machine.
2.Capacity:120boxs/min
3.Touch-sreen and PLC.
4.SS304

Characteristic

When material do not reach correct position, the pusher has an alarm and half facility for that, in order to ensure good quality of carton packaging and safety in operation effectively.

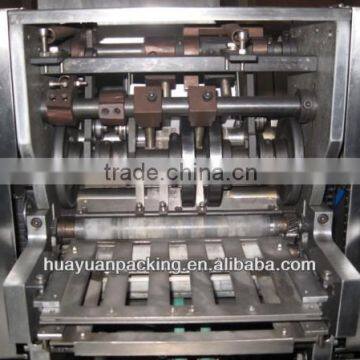

Constantly moving carton-opening mechanism and pulling carton-opening mechanism are more stable and reliable.
Vibrating material categorizing and feeding mechanism is stable and reliable.
Half facility for air pressure and vacuum protection, when caster opened, the halt facility will be checked automatically for operating safety of the machine.
It is easy, convenient and quick to change and adjust product size by hand wheel on instrument panel.
Variable frequency speed regulation, PLC automatic control, Operating on the touch screen, words and numeric display, easy to operate, stable coefficients in operation.
8. Overload protection for principal driving, indication of failure diagnosis, and automatic halt of failure.

Electric power	AC380V three-phrase and five-wire 50HZ total power 2.5kw
Production capacity	Rotation speed 120b/min
Volume of consumption	20m3 /h (pressure0.5-0.8Mpa)
Packing material	Box requirement	250-350g/m2
	Specification	Max.Size:(LxHxW)200x80x50mm
	Min.Size	Min Size: (LxHxW) 50x20x14mm
Overall dimension	3250x1450x1550mm
Weight	About 1.2tons
