aluminium frame high peak mixed tent
1.Specifications of Our High peak tents
Type |
Span Width |
Bay Distance |
Eave Height |
Ridge Height |
Mainprofile |
PT |
10m/32.8' |
5m/16.4' |
4m |
7.16m |
84x48x3mm(2-channel) |
PT |
12m/39.4' |
5m/16.4' |
4m |
7.4m |
122x68x3mm(4-channel) |
PT |
15m/49.2' |
5m/16.4' |
4m |
8.75m |
166x88x3mm(4-channel) |
PT |
18m/59' |
5m/16.4' |
4m |
9.15m |
166x88x3mm(4-channel) |
PT |
20m/65.6' |
5m/16.4' |
4m |
9.42m |
204x120x4mm(4-channel) |
PT |
25m/82' |
5m/16.4' |
4m |
11.72m |
256x121x5mm(4-channel) |
PT |
30m/98.4' |
5m/16.4' |
4m |
13.2m |
256x121x5mm(4-channel) |
PT |
40m/131.2' |
5m/16.4' |
4m |
15.6m |
300x120x5mm(4-channel) |
PT |
50m/164' |
5m/16.4' |
4m |
16m |
400x120x7mm(4-channel) |
PT |
60m/197' |
5m/16.4' |
4m |
18m |
400x120x7mm(4-channel) |
The length can be extended by 5m bay such as 15m,20m,30m,40m...Customized size is available. | |||||
what is the details of our high peak tents
2.Materials of Our high peak tents
- Frame struss: hard pressed extruded aluminium 6061 /T6(13HW) which can last more than 20 years.
- Fabric cover: high quality double PVC-coated polyester textile, 100% waterproof, flame retardant to DIN4102 B1, M2, CFM, UV resistant, tear resistant, self-cleaning ability, etc.
- Connector: strong hot-dip galvanized steel
3.Features of our high peak tents
- Allowed temperature condition: -30 degree Celsius~+70 degree Celsius
- Wind load: max. 100km/h (can be reinforced)
- Snow load: 75kg/sqm (snow can't stay if use big degree roof pitch design)
- Easy to be assembled and dismantled, movable.
- No pole inside, 100% available interior space.

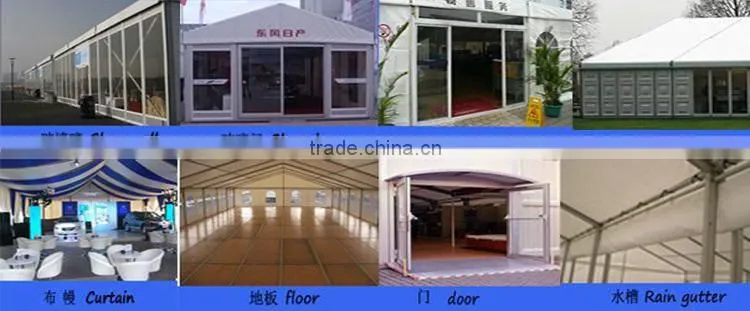

4.Accessories of Our high peak tents
- Covers: colourful cover, transparent cover, inflatable roof cover
- Windows: dome or square clear PVC windows, mesh window, glass window for glass wall
- Wooden Flooring System: VIP cassette flooring, simple cassette flooring
- Doors: double-wing glass door, single-wing glass door, glass fire door, aluminium door, rolling shutter(automatic or manual)
- Wall: soft PVC fabric wall, glass wall, ABS hard wall, sandwich panel wall, steel plate wall
- Fixing Methods: ground anchors, weight plate, expandable bolts
- Rain Gutters:inner roof beam rain gutter or rain gutter between two similar tents
- Other Optional Items: table, chair, lighting, AC, carpet, installation tools etc.

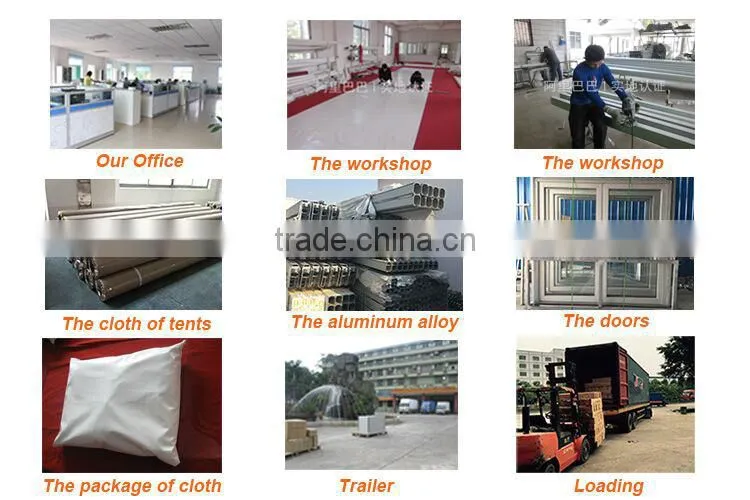

Guangzhou Zhaoli Tent Technology Co., Ltd.. established in 2007,is a leading supplier of temporary or samipermanent aluminum structures in Guangzhou,China.Zhaoli Tent.
All Zhaoli tent fixing works is being processed in a safe and reliable way in accordance with European Standards of quality and safety,all frameworks adopt hard pressed Aluminum 6061T6,along with two layer PVC synthetic fiber.
Zhaoli tents with a waterproof,fireproof,antiUV,durability and other characteristics,the wind resistance can be as high as 80-100km/h,wind loading0.30.5km/m².With safe,beautiful and generous,assembly and disassembly fast, storage and transportation convenient and quality service,can be widely used in a variety of outdoor activities.
Over nearly ten years, with its high quality, product safety, as well as efficiency, flexible and diversified services, Zhaoli Tent had won great reputations from customers all over the world. zhaoli Tent whose products have been exported to more than 100 countries and regions has maintained the leading position in tent exporting for 18 consecutive years and has been the excellent supplier or sponsor of numerous domestic and international events including:
2007 Midea China Classic Competition
2007 Buick Chevrolet Exhibition Reception
2007 Guangzhou pazhou, large-scale exhibition hall reception
2008 Guangzhou Raily Station
2008 Guangzhou Changlong Water Park
2008 Guangzhou China Mobile M-zone Exhibition
2009 Guangzhou International Food Festival
2010 Guangzhou Asian Games
2012 Guangzhou pazhou, Toyota motor show
2012 Guiyang medical large exposition
2012 Guangzhou Huadu district large winter runway show
2012 Malaysia's gold coast resort in the conference room
...
1.aluminum frame packed in membrane film;
2.hardware packed in solid carton box;
3.roof and sidewall in professional PVC carry bag;
4.customized package .
Q: Can you print our logos on tent?
- Yes.Customized logos can be print on the tent fabric according to your requirements.
Q: Is that factory price?
- Yes.We assure you all prices are based on factory.
Q: Does your tent be able to install repeatedly?
- Our tents can be assembled and dismantled and repeatedly with small transportation size.The lifespan of aluminium framework can reach 15-20 years,and 5-8 years for PVC fabrics depending on different conditions of usage.
Q: What documents are available?
- A full range documents including structural drawings,packing list,installation manual and relative certificates can be provided.Moreover,customs declaration is provided.We provide one-stop service for you.
Q: What size tent is necessary for your special event?
- A person must first determine tent usage. If a tent is being used for dining purposes and round tables are being used allow 10-12 square feet per person. If banquet style tables are being used allow 8-10 square feet per person.If the purpose is for cocktail service allow five to six square feet per person. Contact us for all your specific questions and more information on tent types.
Q: Has your tent product been certified?
- Yes.Our tent product has passed the engineering tests and gained the America And Australia structural engineering certificates. Besides, the PVC fabric used for roof covers and sidewalls has passed the fire tests and gained the flame retardant certificates issued by America, Australia, New Zealand, and Britain.
Q: Is you tent strong and stable enough? How about the wind loading?
- Yes.The main frameworks (upright support and roof beam) are manufactured with high impact extruded anodized aluminum (6061/T6) so our tent structure is safe and strong and can resist wind as high as 100 km/hr.
Q: How long is the warranty period?
- Guarantee one year. During the warranty period, we shall repair or replace the damaged part accordingly because of any damage due to quality problem.
