Product Details
Place of Origin: | Jilin, China | Brand Name: | ccrq | Model Number: | Wedges |
Material: | Optical Glass, BK7, K9,Fused Quartz, etc. | Surface Quality: | Other, 40/20, 60/40 | Dimension Tolerance: | 0.1mm, +0/-0.1mm |
Angle Tolerance: | 3 Arcmin | Flatness: | 1/4 Lambda, lambda/4 per 25nm at 632.8nm |
Product Description
optical glass quartz prism, round wedge prism

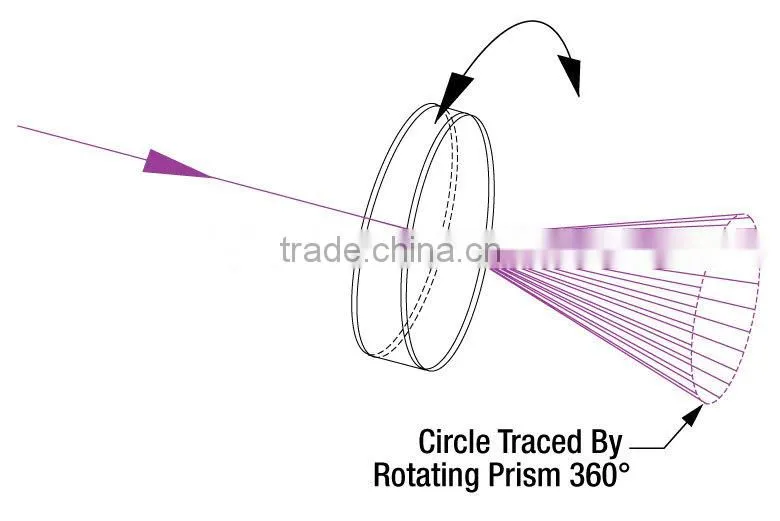

The wedge prism is a prism with a shallow angle between its input and output surfaces. This angle is usually 3 degrees or less. Refraction at the surfaces causes the prism to deflect light by a fixed angle. When viewing a scene through such a prism, objects will appear to be offset by an amount that varies with their distance from the prism.
Wedge prisms can be used individually to deviate a laser beam a set angle, or two wedge prisms can be used together for beam steering applications. A single wedge prism's ability to deviate the angle of an incident beam is measured in Diopters with 1 diopter deviating the beam 1cm at a 1m working distance
- Ideal for Beam Steering
- 0.5° - 15° Beam Deviation Options
- Available Uncoated or Anti-Reflection Coated
- Anamorphic Prism Pair Also Available
.
.
Technical Specifications:
Material | BK7,Fused Silica,Sapphire |
Dimension | 12.7mm 19mm 25mm 38mm 50mm |
Dimension Tolerance | +/-0.15mm, +/-0.2mm, +0/-0.1mm as request |
Clear Aperture | >90% |
Surface Quality | 60/40 |
Flatness | lambda/4 per 25nm at 632.8nm |
thickness | 3mm on the thinnest edges |
angle | 1degree-30degree |
Deviation Angle | from 1degree to 10 degree |
