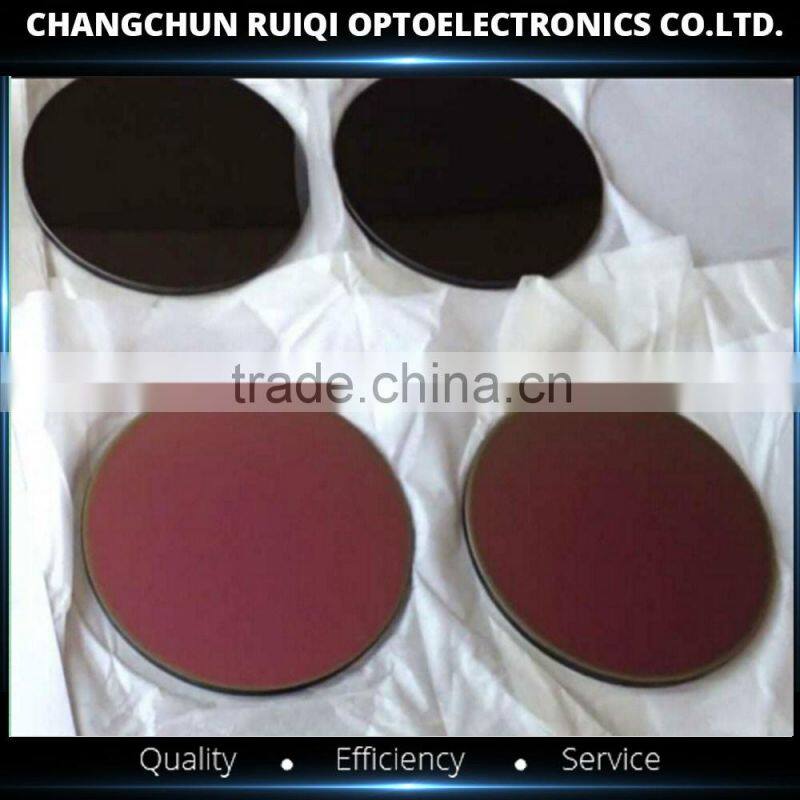

Protective Germanium Lens Windows , Ge Laser Lens Window for Camera 0.5mm - 1.5mm Thickness
Germanium is a versatile infrared material commonly used in imaging systems and instruments in the 2 to 12 microns spectral region. It is used as a substrate for lenses, windows, and output couplers for low-power CW as well as pulsed TEA, CO2 lasers. The lowest absorbing Ge optics are limited to a throughput power range of 50 to 100 watts before thermal lensing or thermal runaway. These problems are minimized by properly heatsinking the optic and carefully cleaning contaminated optical surfaces.
Ge is non-hygroscopic and non-toxic, has good thermal conductivity, excellent surface hardness, and good strength. II-VI carefully monitors the 10.6µm Ge absorptivity for use in laser applications to assure that thermal runaway and fracture do not occur.
One ideal laser application for Ge is a > 99% reflecting back mirror for a CO2 laser with built-in power meters. A high-reflecting, low-absorption dielectric coating is on one side and an AR coating on the other. The laser operates on the feedback from the high-reflecting side, but enough power leaks through for monitoring by a power meter. II-VI supplies these optics for a number of commercial laser applications.
Protective Germanium Lens Windows , Ge Laser Lens Window for Camera 0.5mm - 1.5mm Thickness:
Delivery Time:15 working days after received your payment
Certification:ROHS / SGS
Optical Germanium Lenses Ge Windows 10.0mm , 8μm - 12μm Wavelength Range
Technical Specifications:
| Material | Germanium(Ge) |
| Dimension | 15mm 20mm 25.4mm |
| Thickness | 2mm 3mm 5mm 15mm |
| Parallelism | <1 arc minute |
| Surface Quality | 60/40 |
| SurfaceAccuracy | 1/10 @ 10.6μm |
| Type | Protective window |
| wavelength | 8-12um |
| Coating | Uncoated, Anti-Reflective (AR) Coatings,Single layer MgF2 coating,Multilayer Broadband AR Coating |
