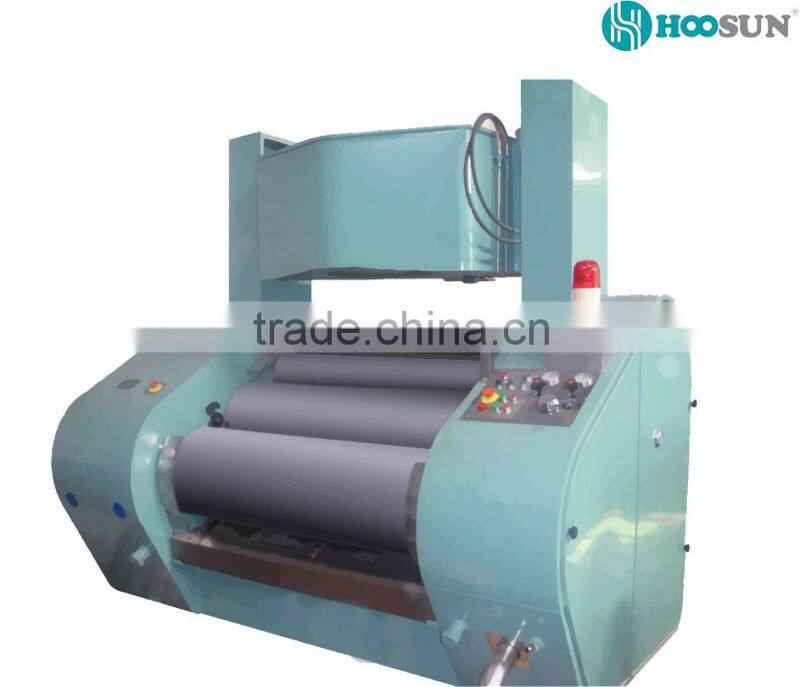

Help CenterOintment Hydraulic Three Roller Mill
Related Products
Introduction
Hoosun three roller mill is always the first choice for paste product which is widely applied in printing ink, pigment, electronc industry and solar energy. Based on updating and optimization of three roller mill, Hoosun three roller mill sets up a new standard regarding its stable performance, safety and convenience.
Easy operation, mostly used for paste production suhc as printing inks, painting, coating, pigment, etc. It reaches good milling effect by extrusion and friction of three rollers.
Working Principle
Hydraulic triple roller mill has double vane pumps. The basic material feeding, discharging and final material fineness are all controlled by hydraulic system, fully automatic, easy and safe operation. Hydraulic system applies plate-structure to make the arrangement more reasonable. Roller is cast by high strength special alloy, making the surface strong in hardness and wear-resistant. This hydraulic triple roller is an ideal equipment to grind high quality paste.
Details
| Model(HS) | HSMT-H150 | HSMT-H260 | HSMT-H400 |
| Roller dia. | Φ150 mm | Φ260mm | Φ400mm |
| Working length | 300 mm | 650mm | 1300mm(can be customized) |
| Surface hardness | HSD70-73 | HSD70-73 | HSD70-73 |
| Roller material | Super alloy | ||
| Discharge roller speed | 141 r/min | 408 r/min | 400 r/min |
| Middle roller speed | 61 r/min | 153 r/min | 148 r/min |
| Feeding roller speed | 26 r/min | 58 r/min | 32 r/min |
| Discharge height | 620 mm | 650 mm | 690 mm |
| Motor power | 3 kw | 22 kw | 55 kw |
| Hydraulic motor power | 0.375 kw | 1.5 kw | With hopper:1.5kw*2; No hopper:1.5kw |
| Hydraulic prssure | 6.3 Mpa | 6.3 Mpa | With hopper:6.3Mpa*2; No hopper:6.3Mpa |
| Electrical parts | Combined with the machine body, easy to control | ||
| Weight(kg) | 520 | 2000 | With hopper:5200; No hopper:4800 |
| Size (L×W×H,mm) | 950×950×1080 | 1600×1280×1260 | With hopper: 2634×1750×2295 No hopper: 2634×1750×1600 |
| Hopper size (L×W×H,mm) |
1600×1350×620 | ||
| Packing Size (L×W×H,mm) | 1050×1050×1400 | 1700×1400×1600 | Machine:3000×1950×1950 Hopper: 1800×1550×900 |
Picture Info
