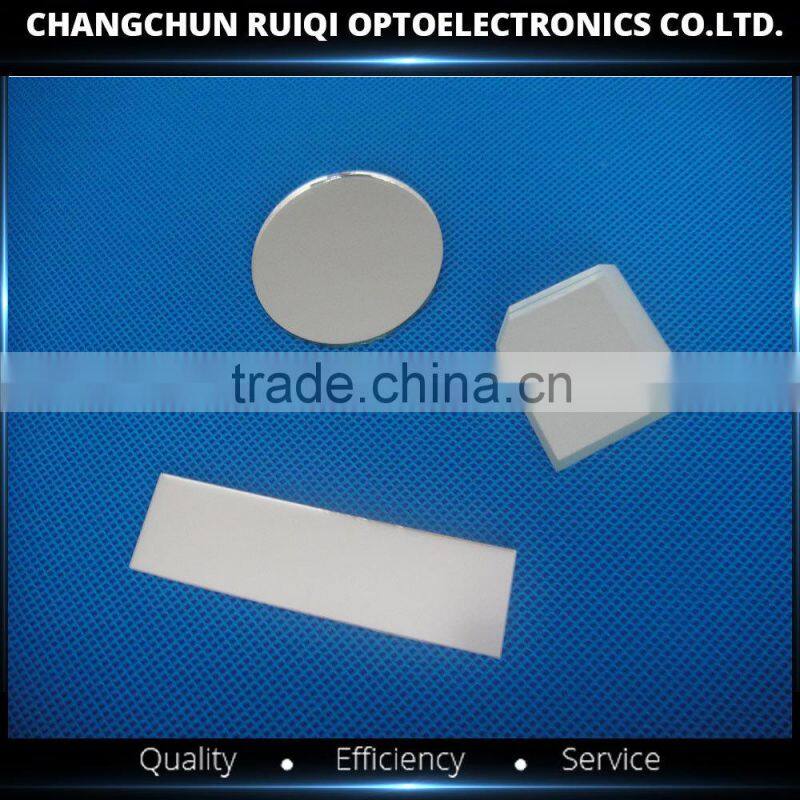

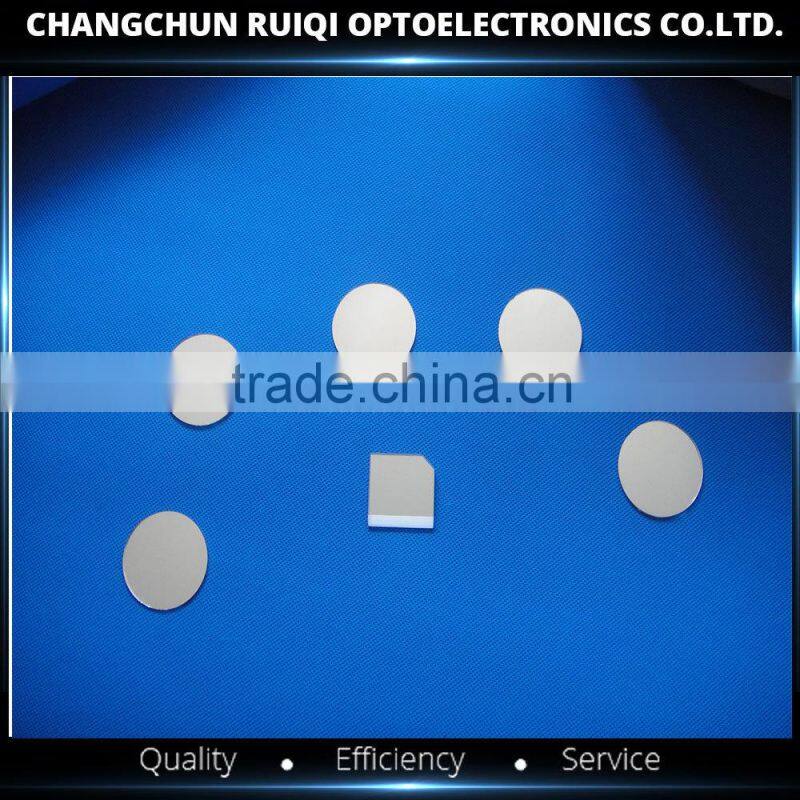

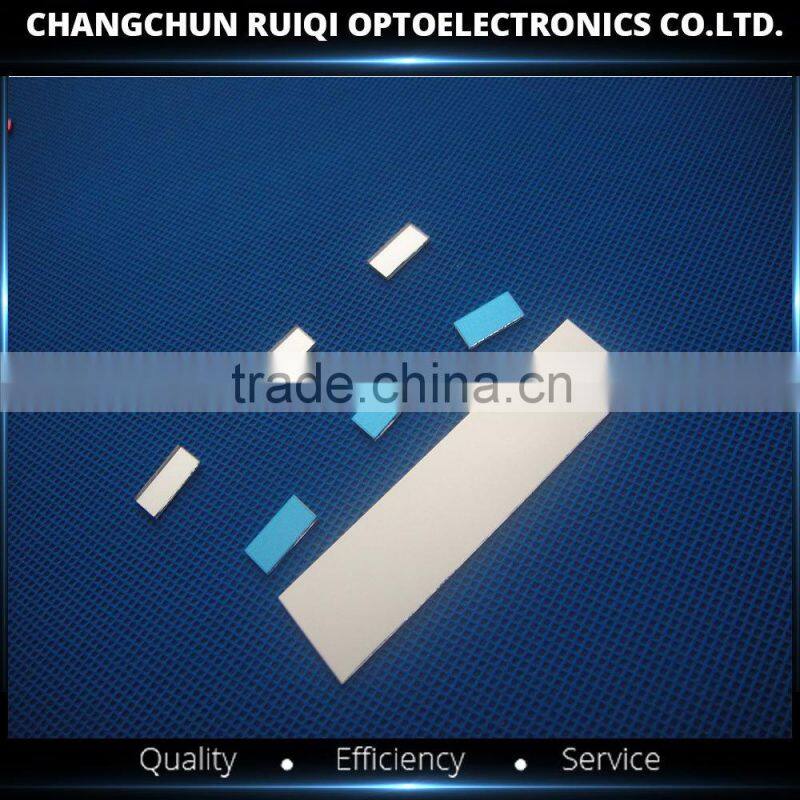

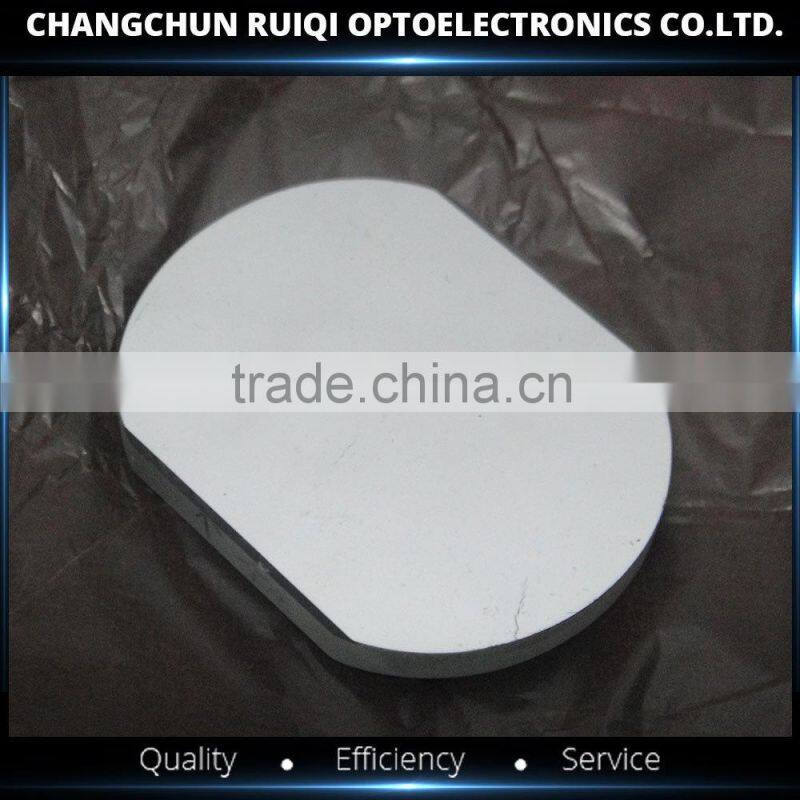

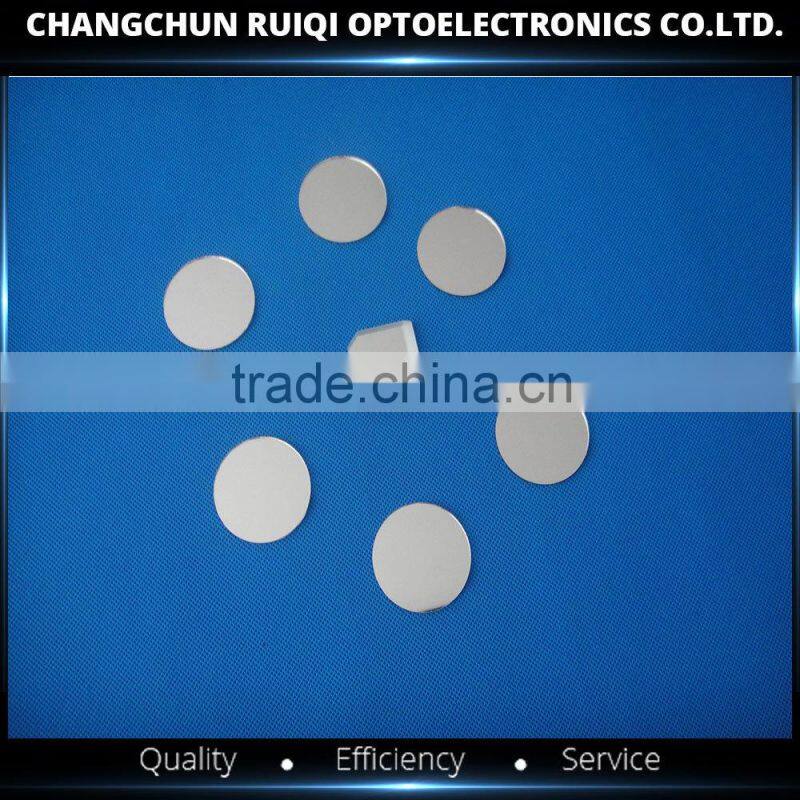

532nm Laser Reflective Mirror,high reflective ,laser mirror
Optical Mirrors are designed to reflect light for a variety of applications, including beam steering, interferometry, imaging, or illumination. Optical Mirrors are used in a wide range of industries, such as life sciences, astronomy, metrology, semiconductor, or solar.
Metal coated mirrors are made of protected UV Enhanced Aluminium, Aluminium (Al), protected Gold (Au), protected Silver (Ag) coatings.
Optical Mirrors designed for laser applications are optimized for the given laser wavelength. Additionally, Optical Mirrors designed for lasers feature damage thresholds that are suitable for the designated laser. Metal substrate Optical Mirrors are ideal for applications requiring a constant coefficient of thermal expansion between the Optical Mirror and the mount. Optical Mirrors with a concave surface are ideal for light focusing applications.
For information on our optic lens custom work, contact Ruiqi today.
The price changes according to different materials, different specs of products, as well as different quantity.
For exact price of the products that you need, please contact with our sales, you can send your specs or drawings,
we will quote you the most competitive price as well as the good quality.
Technical Specifications:
Diameter (mm) |
5.0 |
Dimensional Tolerance (mm) |
0.25 |
Clear Aperture (%) |
85 |
Thickness (mm) |
2.0 |
Thickness Tolerance (mm) |
0.25 |
Surface Accuracy |
@ 632.8nm |
Surface Quality |
60 - 40 |
Edges |
Ground, 0.75mm Maximum Full Width Bevel |
Substrate |
BOROFLOAT |
Coating Specification |
Ravg>95% @ 450 - 650nm |
Typical Energy Density Limit |
0.2 J/cm2@ 532nm, 10ns |
Wavelength Range (nm) |
420 - 680 |
Type |
Flat Mirror |
Coating |
Enhanced Aluminum |
RoHS |
Compliant |
Send Inquiry to This Supplier
