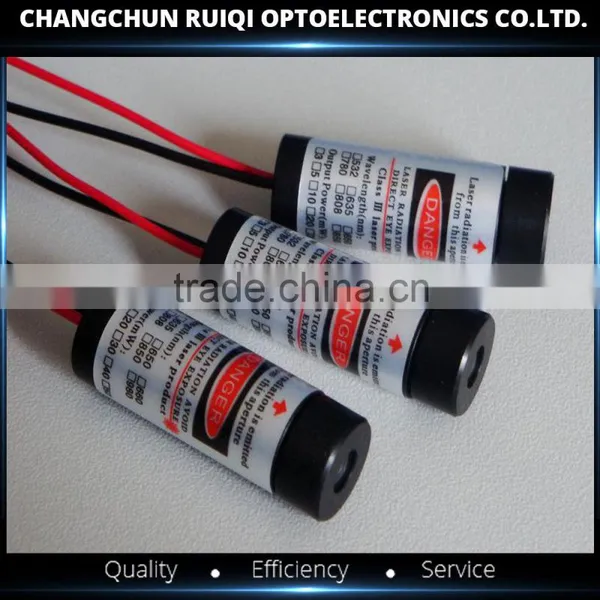

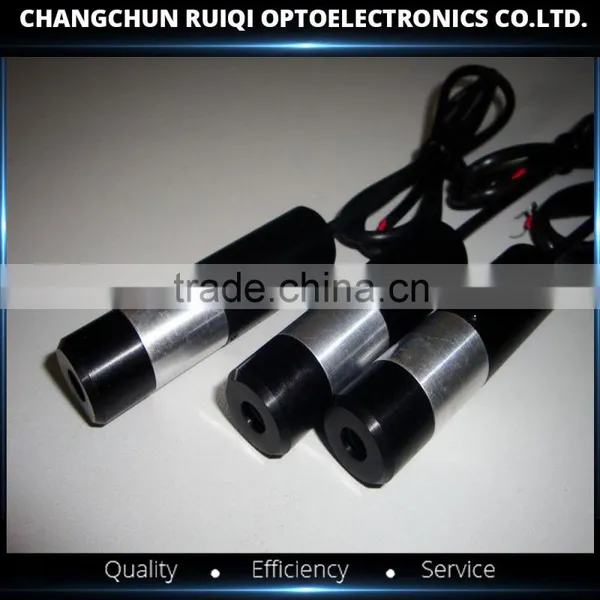

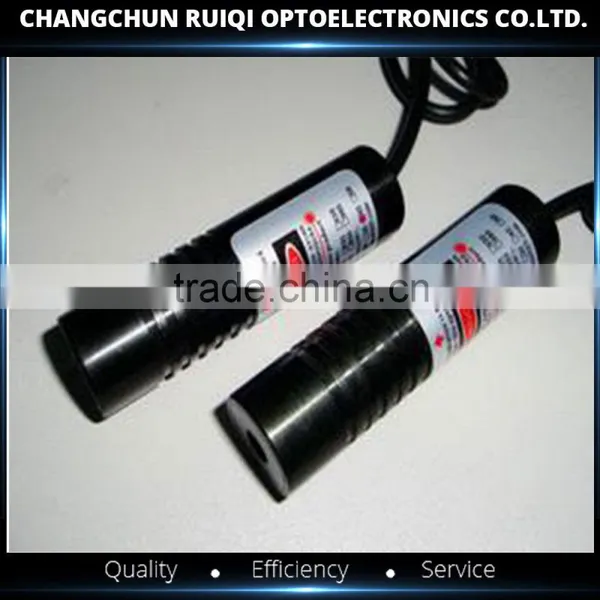

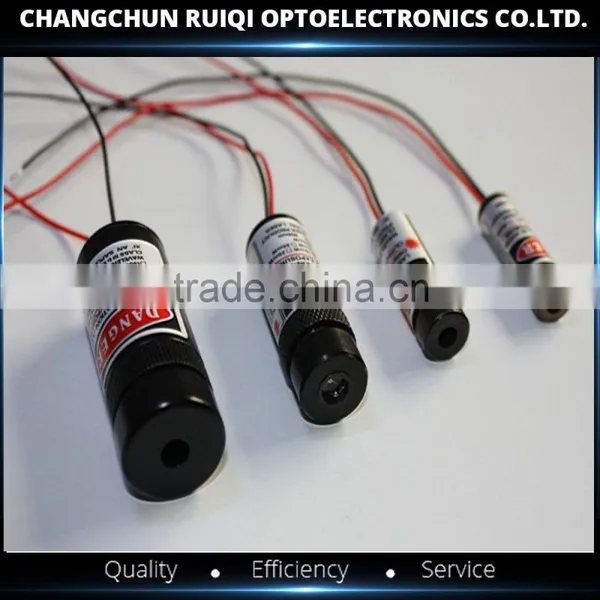

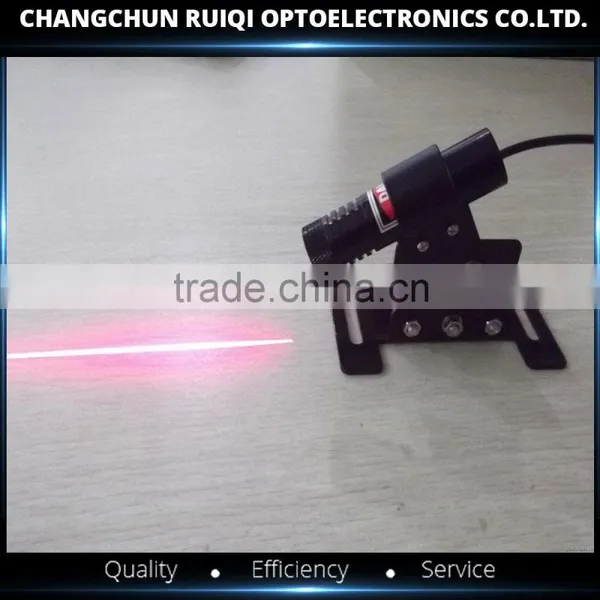

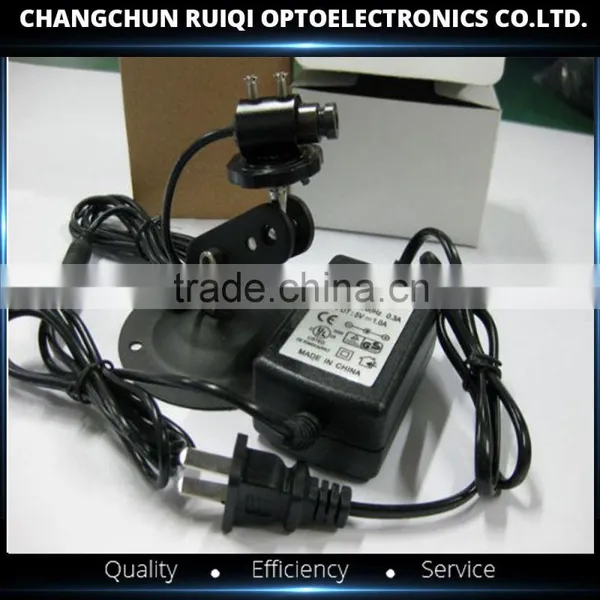

Help CenterDC 5V 100mw 650nm Red Adjustable Focus Line Laser Module 20*80mm
Related Products
-
50mw 658nm Laser Module, Red Line Laser Diode ModuleUS$ 35 - 55MOQ: 10 Pieces -
100mw 650nm Laser Module, Red Line Laser Diode ModuleUS$ 45 - 80MOQ: 10 Pieces
-
532nm 5mw Dot Green Laser Module Focus Adjustable 24hours Continuous Work Size 22x110mmUS$ 65 - 75MOQ: 5 Pieces
-
635nm 5mW~10mw Red Laser Module Line 16*60mmUS$ 19.5 - 55MOQ: 10 Pieces
-
5V 650nm 5mW Adjustable Focus Red Line Laser ModuleUS$ 5 - 55MOQ: 1 Piece
100mw 650nm laser module, red line laser diode module
Conventional line lasers are adjusted in focus by rotating the line optics and inserting an focusing tool into the laser to adjust the position the collimating lens. This process make line rotating and also can result in the laser changing power classification. The unique focusing mechanism of our products allows the focus to be adjusted without the need for removing line optics by simply rotating the white ring of the laser. This novel design produces improved line quality whilst maintaining accurate alignment.
Line lengths from a few mm to several metres are available from a variety of standard optics, with custom optics to suit specialised requirements.
Specifications:
Wavelength:650nm
Output power:100mW
Laser class:IIIb
Working distance:6m
Line Width 3mm-4mm
Fan angle:10°~135°
Operating Voltage:DC3V-6V
Operating Temperature:-10℃~50℃
Storage Temperature:-40℃~80℃
Dimensions:Φ20mm ×80mm,
Warranty:1 year
Applications:
Machine vision
Industrial inspection
Industrial marking devices
3D contour mapping
Positioning & visualization
Biomedical
High-end alignment
Laser targeting devices and so on..
