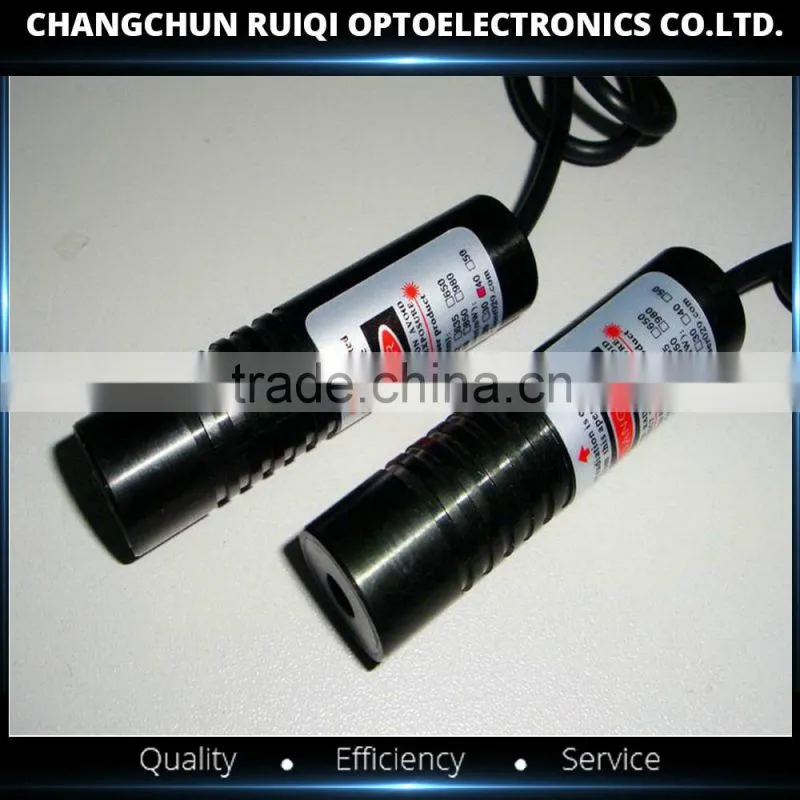

405nm 10mw violet line laser module
when blue semiconductor lasers were developed, blue lasers were large and expensive ,and needed high currents and strong cooling.
Thanks to prior development of many scientist groups, the technology behind these gallium nitride lasers has allowed a series of inventions and developed commercially viable blue and violet semiconductor lasers.
These lasers are useful for applications such as biomedical instrumentation, imaging, spectroscopy, laser induced fluorescence sensing and microscopy.
Specifications:
| Laser Class | IIIa IIIb |
| Output power | 100mW |
| Input Voltage | 3-5V DC |
| Operation Current | <500mA |
| Operation Temputer | 20-30(℃) |
| Divergence | <0.6mrd |
| Optics | Glass(prism or cylindrical lens) |
| Laser Line Width | 0.8mm-2mm as request |
| Beam | Line(90 degree fan angle) |
| Length | 45mm 60mm 80mm |
| Diameter | 12mm 16mm |
Working Temperature |
10℃~+45℃ |
Storage Temperature |
-40℃ +85℃ |
This compact and self-contained 405nm violet laser modules generate a line of 90 degrees. It's available in <5mW or <20mW
It is suitable for various applications such as laser night vision, optical memory and fluorescence excitation
Note:Other types of output power or fan angle accept custom made,welcome to contact freely
