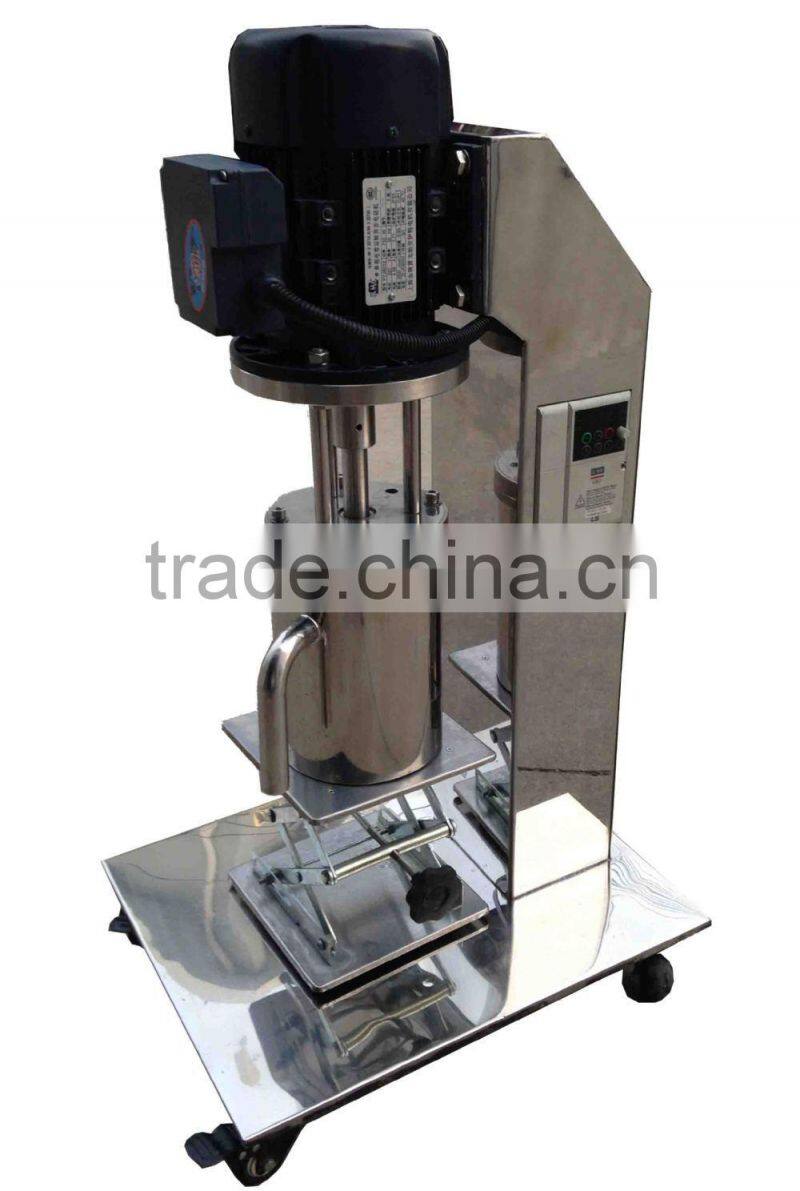

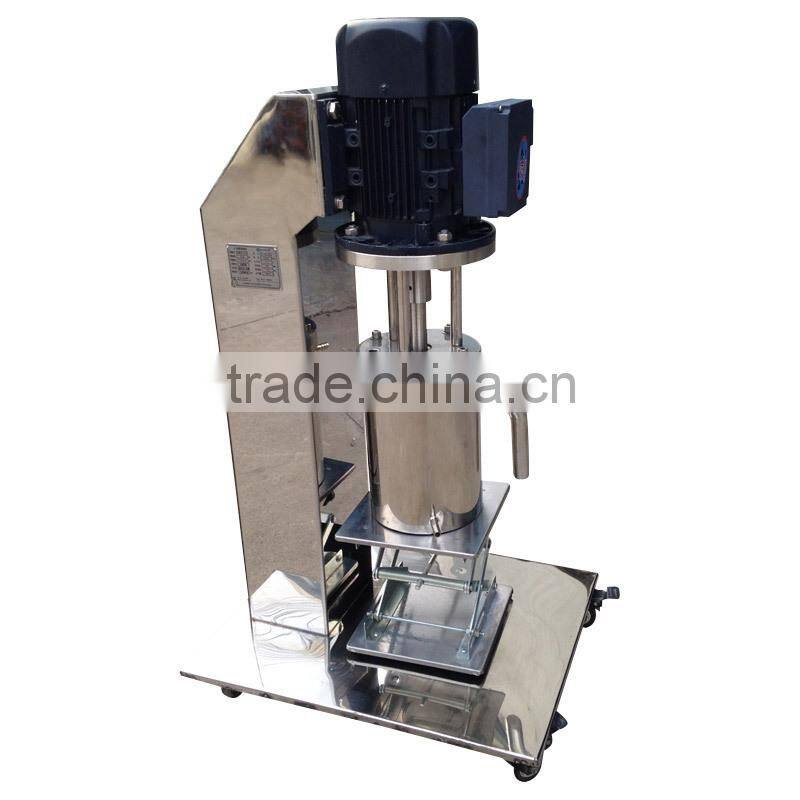

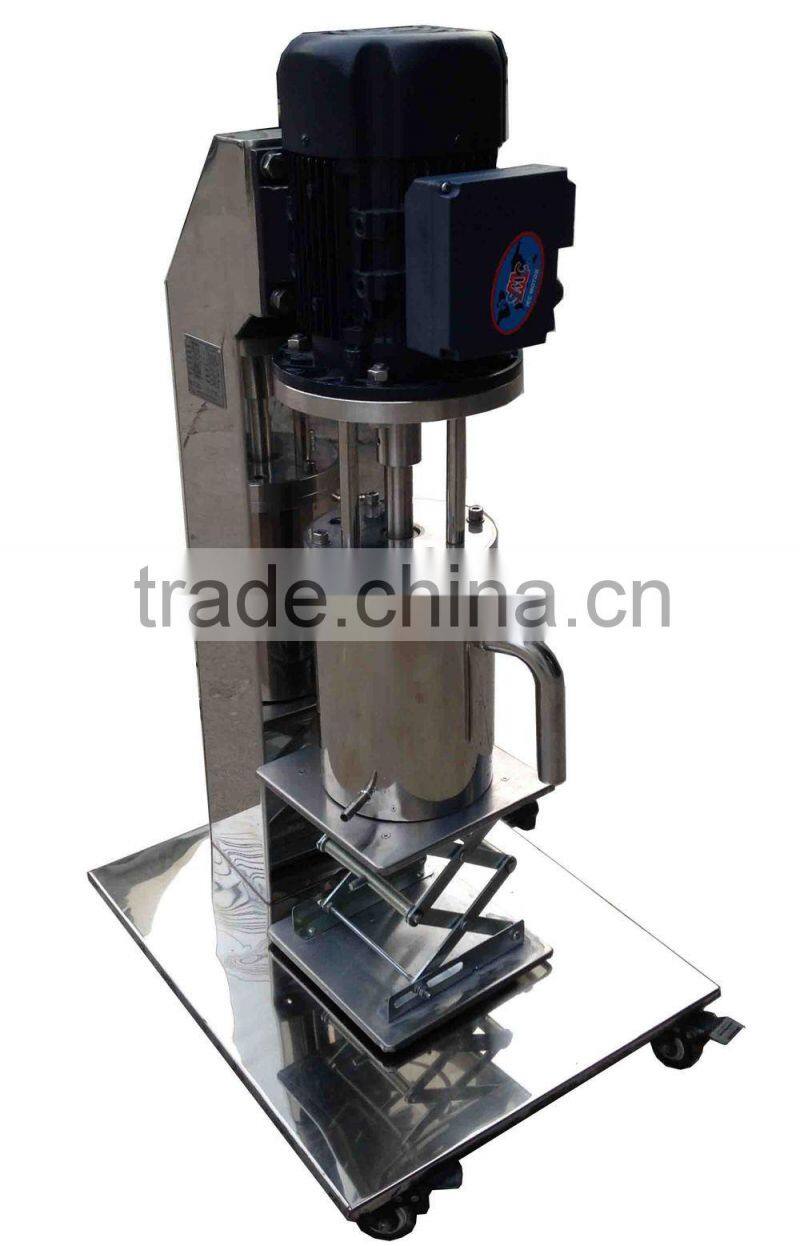

Help CenterLaboratory Basket Mill for Paints and Color Paste
Related Products
Introduction
Basket mill Integrate milling and dispersion into one equipment and one tank; good fineness; high productivity, less residu; inner circulation to realize complete blending; easy to clean and change colors; suitable for small batch, multi-colors and medium viscosity materials.
Lab-scale basket mill, mostly applied in small batch production before mass production.
Working principle
Material is drawn into the basket under the strong suction and vertex flow which is caused by the high rotating speed of self-priming impeller.
The high-speed rotating dispersion disc creates a strong force between the basket bottom and disc, which draws materials out of the basket and then throws them out. Materials get mixed and dispersed effieciently.
After the material grinding, lift the basket above the liquid level and run it for a short time. The residual material will be thrown out by centrifugal force. Thus, the whole procedure is completed.
Characteristics
-with inverter, various speed control
-With 2.5L jacketed tank
-Easy to clean and change materials
Details
| Model | Power (kw) |
Electricity | Basket volume (L) |
Speed (rpm) |
Capacity (L) |
Lift type |
| HSMB-0.75 | 0.75 | 220V/50HZ | 0.5 | 0-2880 | 1-5 | Manual |
| HSMB-0.75 | 0.75 | 220V/50HZ | 0.5 | 0-2880 | 1-5 | Electrical |
| HSMB-1.1 | 1.1 | 380V/60HZ | 1.1 | 0-3000 | 1-10 | Electrical |
