Fused Silica Meniscus Lens,BK7 Meniscus Cylindrical Lens
US$ 10 - 60
MOQ: 5 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Jilin, China
Brand Name:
CCRQ
Model Number:
CLM-2
Payment & Shipping
Payment Methods:
Port of Shipment:
changchun shenzhen beijing
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Fused Silica Convex Concave Cylindrical LensUS$ 10 - 60MOQ: 5 Pieces -
BK7 Cylindrical Lens Positive Meniscus LensUS$ 5 - 60MOQ: 5 Pieces
-
BK7/K9 Fused Silica Plano Concave Cylindrical LensUS$ 12 - 40MOQ: 10 Pieces
-
Optical Glass Concave-convex Lens With Anti-reflective CoatingUS$ 5 - 65MOQ: 10 Pieces
-
Achromatic Usage and Cylindrical Shape Cemented Doublet Achromatic Lens With AR CoatingUS$ 20 - 55MOQ: 10 Pieces
Place of Origin
Jilin, China
Brand Name
CCRQ
Model Number
CLM-2
Material
Other, znse BK7,fused silica,sapphire
Usage
Optical
Structure
Other, convex concave
Shape
Meniscus

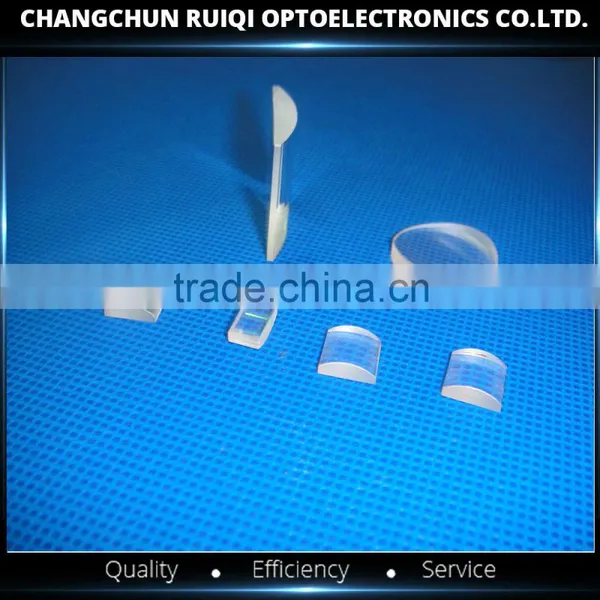

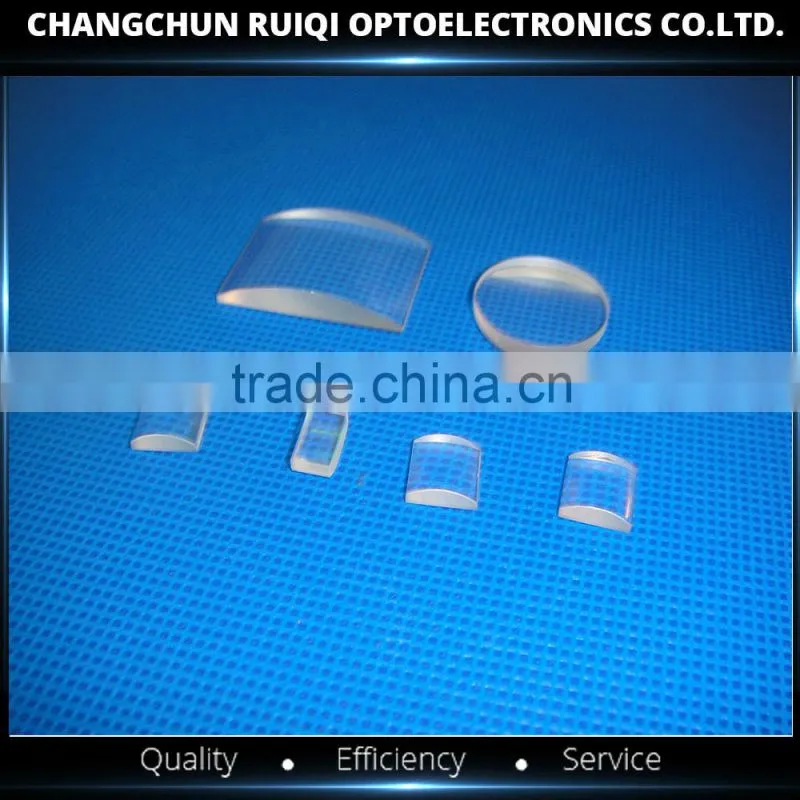

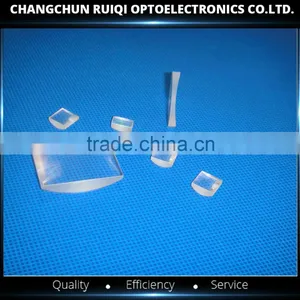

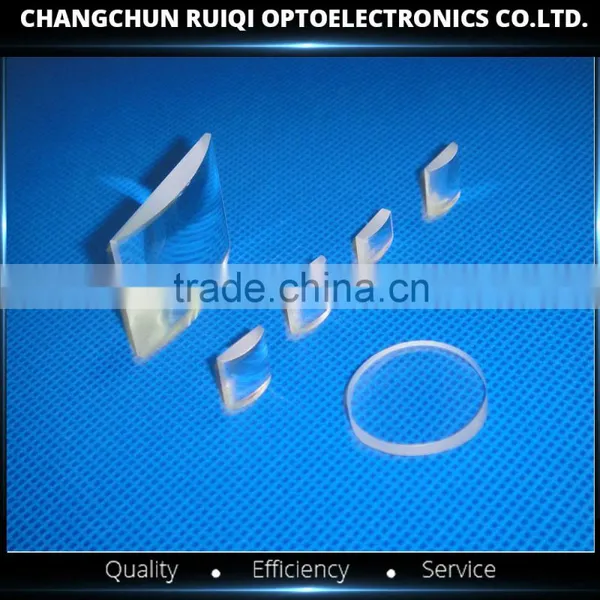

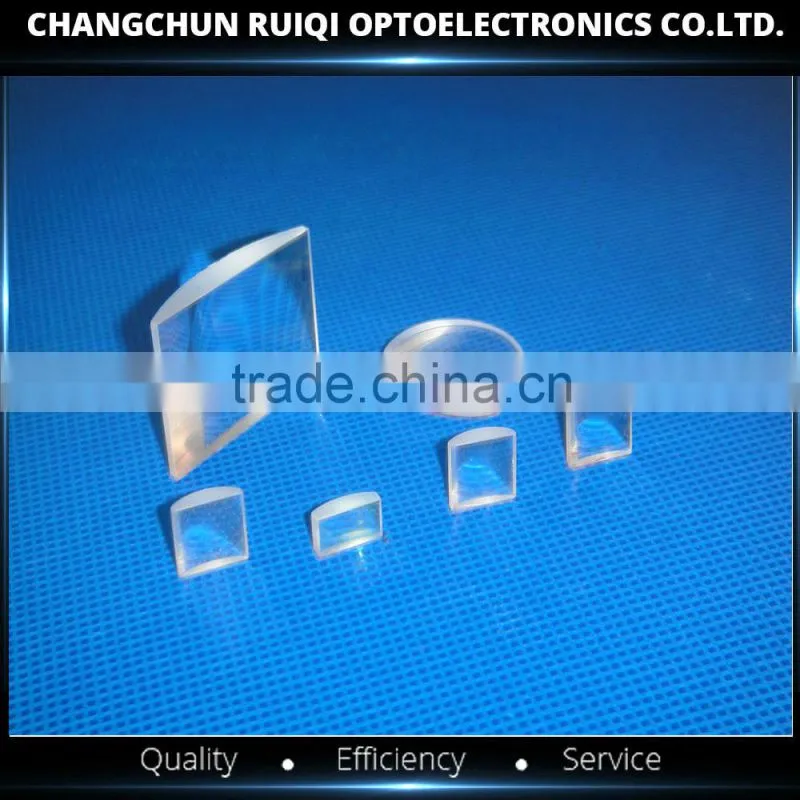

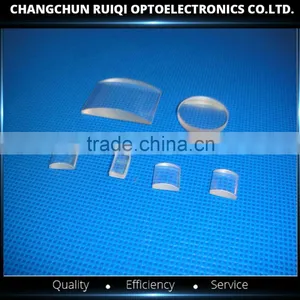

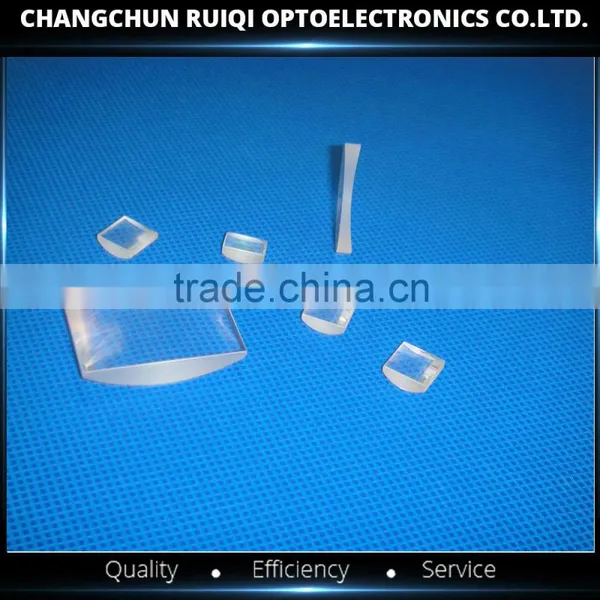

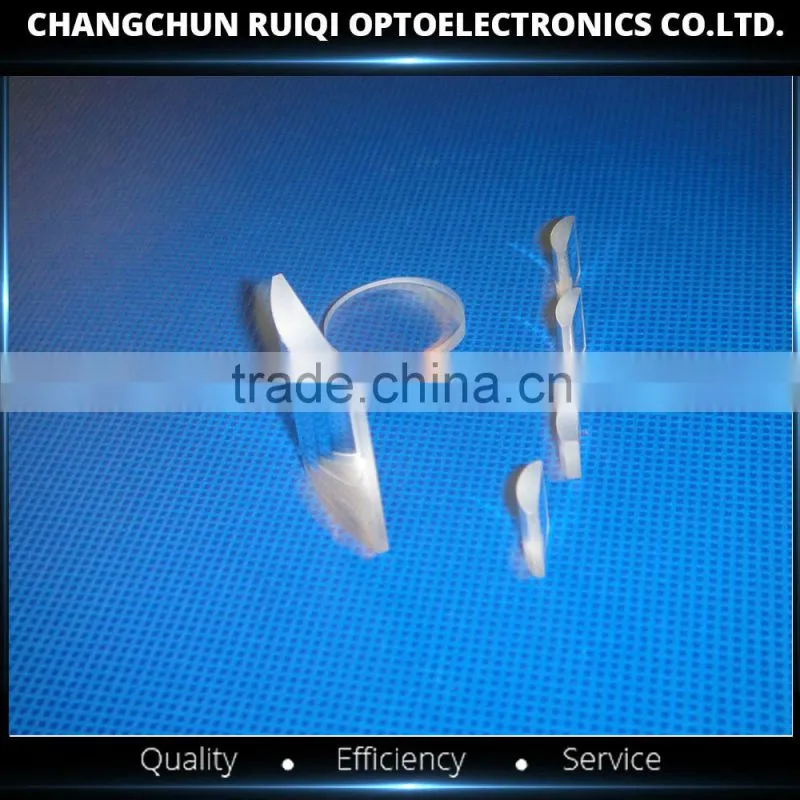

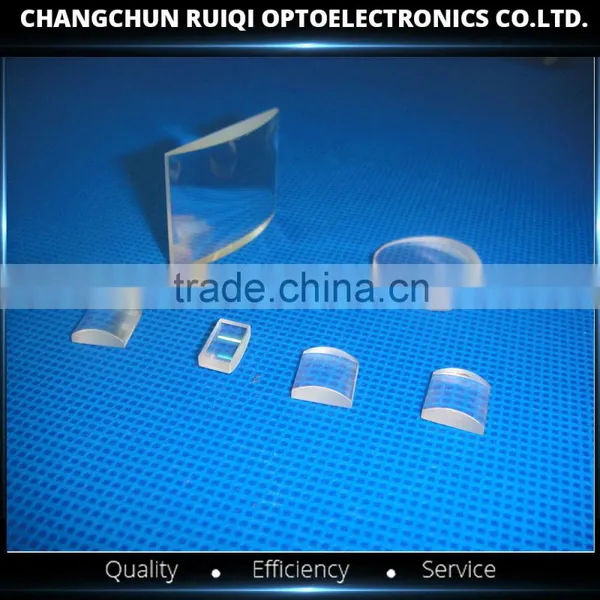

Fused Silica Meniscus Lens,BK7 Meniscus cylindrical lens
Meniscus cylindrical lens is a lens that one surface is convex shape, another surface is concave with cylindricalshape, The Negative Meniscus Lenses are a convex-concave lens,
but is thinner at the center than at the edges. Otherwise description is similar to Plano Concave lenses.
its role is making beam converging or diverging on a plane, and that beam does’t work for the perpendicular plane(cylindrical axis) with it of the appropriate wavelength.
When used to form a positive lens assembly, the Positive Meniscus lens can increase the NA of the system while
decreasing the total spherical aberrations. The Negative Meniscus lens is used to increase the focal length of another lens
while maintaining the angular resolution of the optical assembly. This lens shape is best used when one conjugate is relatively far from the lens
Specification:
| Material | BK7,Fused Silica,Znse,K9 optical glass |
| Dimension | 5-300mm length |
| Thickness | 5-50mm |
| Centration | <3min |
| Surface quality | 60-40 |
| Clear Aperture | >90% |
| Bevel | 0.2*45degree |
| Coating | AR,BBAR,MgF2 coating |
