XCMG XS183J 18 Ton Single Drum Mechanical Compactor Vibrating Mechanism

Name: XCMG XS183J 18 Ton Single Drum Mechanical Compactor Vibrating Mechanism
Brand: XCMG
SKU: 109820587
Availability: InStock

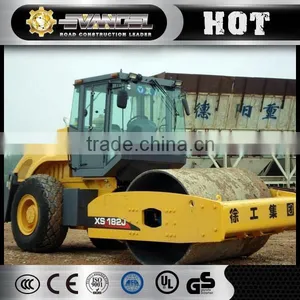

XCMG XS183J 18 Ton Single Drum Mechanical Compactor Vibrating Mechanism thumbnail-1

XCMG XS183J 18 Ton Single Drum Mechanical Compactor Vibrating Mechanism photo-1

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Condition:

New

Type:

Single Drum Roller

Static Linear Pressure:

422N/cm

Contact Supplier Request Quote Chat Now

Evangel (Shanghai) Industrial Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Type Single Drum Roller

Static Linear Pressure 422N/cm

Travel Speed 2.7~10.51km/h

Grade Ability 30%

Place of Origin Jiangsu, China

Brand Name XCMG

Model Number XS183J

Power(W) 115Kw

Dimension(L*W*H) 6220*2130*3200mm

Weight 18 ton

Certification CE, ISO

After-sales Service Provided Engineers available to service machinery overseas

XCMG XS183J 18 Ton Single Drum Mechanical Compactor Vibrating Mechanism

Type	Unit	XS183J
Operating weight	kg	18000
Load on front drum	kg	11500
Load on rear wheels	kg	6500
Drum width	mm	2130
Static linear load	N/cm	529
Vibration frequency(Low/High)	Hz	28/33
Nominal amplitude(High/Low)	mm	1.86/0.93
Excitation force(High/Low)	KN	340/240
Travel speed	km/h	0-10
Steering angle	°	±33
Swing angle	°	±10
Theoretical gradeability	%	50
Min. turning radius	mm	6500
Engine model		B5.9
Engine power	kw	132
Rated engine speed	r/min	2200
Engine oil consumption	g/kW.h	232
Hydraulic oil tank capacity	L	240
Fuel tank capacity	L	240
Dimensions	mm	622023903200

Feature:

Vibratory compactor is a kind of heavy duty self-propelled vibratory compactor. It can effectively compact various soil layers and rock fill, and can be applied to the constructions of modern freeways, airports, embankment fill, ports, dams, railways, mines, etc.

Performance feature
The spacious and bright cab features wide view and comfort.
Simple operation
The humanity instrument panel has a reasonable layout, all the control buttons are clear at a glance.
Adopt the gearbox with synchronizer, which is easy to operate.
The special compactor drive axle has the function of preventing slipping, featuring strong traction.
Reliable and durable hydraulic system
The standard configuration includes imported open gear pump and motor. The optional configuration includes closed hydraulic vibration system, imported piston pump, motor (16t, 18t). All those have a long service life, supplying stable start-oscillation and oscillation stop and high compacting quality.
Energy-saving and environmental friendly power
Shanghai Diesel Engine 114 series water-cooled engine has low noise, meeting the emission standard of European I. The maintenance-free battery can be started easily and work smoothly in low temperature.
High efficient and reliable vibratory compacting system
Unique drum structure features good rigidity and intensity. The bearing adopts short cylindrical bearing, featuring high rotary speed limit and strong bearing capacity. The left vibration chamber and right vibration chamber are symmetrical, avoiding the polarization of the drum.
The vibratory bearing can be lubricated when the compactor travels, which is simple and convenient, ensuring a quite low lubricating system failure rate.
Adopt the numerical control blanking, numerical control plate rolling, numerical control bender, and numerical control horizontal machining center to ensure the precision of the whole machining.
Optional configuration
The integral convex block drum, split convex block drum, and the cab with air conditioning.
Convenient maintenance
The engine cover is easy to open, and the opening angle is large, which make the maintenance part accessible.
The high positioned air intake prolongs the maintenance interval of the air filter.
