Home > Products > Agricultural Machinery > Small Agriculture tractor Fonton TB504 4WD 50HP foton tractor parts

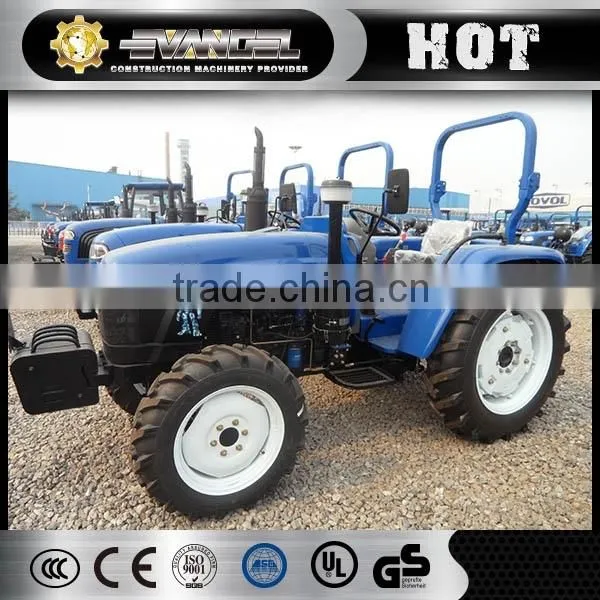

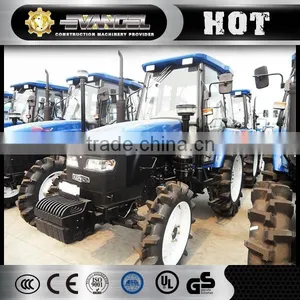

Small Agriculture tractor Fonton TB504 4WD 50HP foton tractor parts
- 100 Set / Sets per Month
- Shanghai Qingdao
- T/T L/C D/P D/A Credit Card PayPal
Product Details
Condition: | New | Type: | Wheel Tractor | By wheel: | 4WD |
Usage: | Farm Tractor | Drive Type: | Gear Drive | Power(W): | 50HP |
Certificate: | CE | Brand Name: | FOTON | Model Number: | TB504 |
Place of Origin: | Shandong, China | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Small Agriculture tractor Fonton TB504 4WD 50HP foton tractor parts
Parameter of Foton 504 Farm Tractor for Sale:
Drive type | 4*4 |
---|---|
Overall dimension(L * W * H) | 3980*1650*(2130/2520) |
Wheelbase (mm) | 1990 |
Track(front/rear) | 1250 |
Track(front/rear) regulating method | non-adjustable /stepless |
Min.Ground clearance(mm) | 310 |
Min.operating weight (with cab)(kg) | 2335 |
Min.operating weight (without cab)(kg) | 2135 |
Counterweight (max)(front/rear) | 108.144/300.360 |
Gears(forward/reverse/creeper) | 8+4/8+8/16+8/12+12 |
Theoretical speed of each gear(forward/reverse) | 2.65-34.78/3.94-12.1;2.65-34.78/2.33-30.49;0.43-34.78/0.65-12.10;2.46-32.73/2.15-28.69 |
Engine | |
Brand | Lijia, Xinchai, Quanchai |
Engine type | 4-cylinder |
Intake mode | Natural intake |
Number of cylinders | 4 |
Bore | 98 |
Stroke | 105 |
Displacement(L) | 3.168 |
Engine rated power kW@rpm | 36.8 |
Rated speed | 2400 |
Type of air cleaner | Dry or wet type |
Type of cooling system | Forced water-cooled |
Max. Torque@ revolving speed (rpm) | 186@1600~1800 |
Specific fuel consumption rate at rated conditions (g/kW.h) | ≤248 |
Fuel tank capacity (L) | 38/52 |
Feature of Foton 504 Farm Tractor for Sale:
1. The fan and heater cab are optional;
2. 955mm narrow tread model can better meet the operational requirements;
3. U.S. ACTUANT combination instruments are optional;
4. The transmission with gear combinations of 8+8, 16+8, and 12+12 has a variety of gear selections, and a reasonable velocity distribution;
5. Chassis uses the four-planetary gear differential, and the power is upgraded to 60 hp;
6. EC, EPA certification models are available
