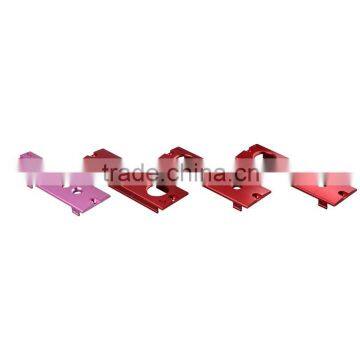

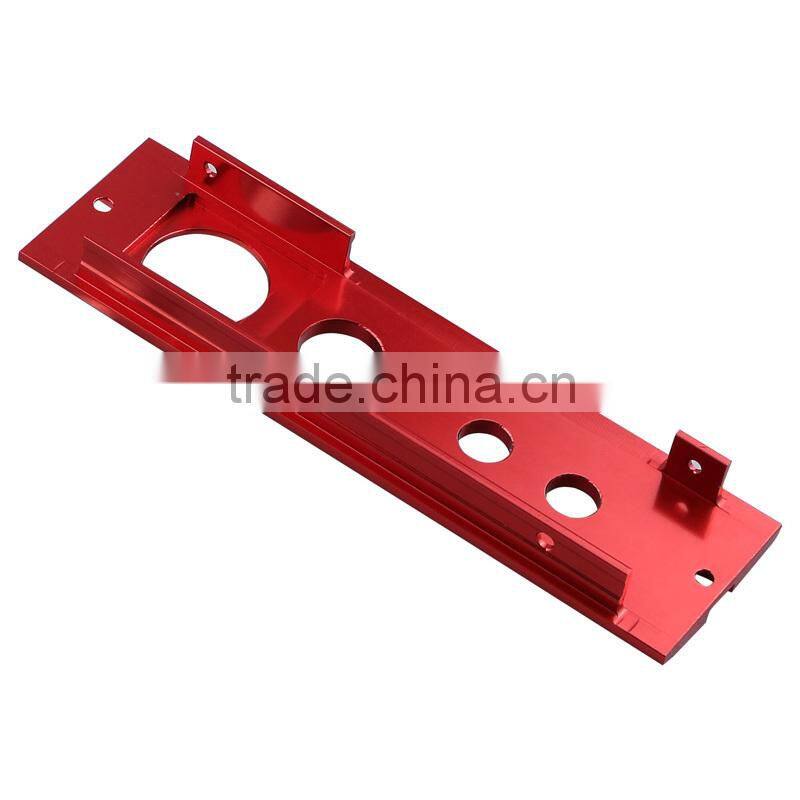

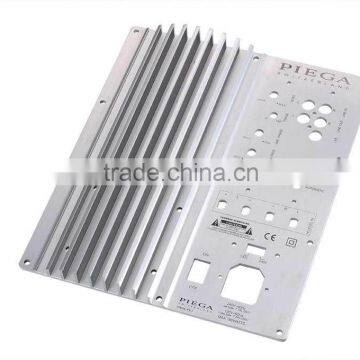

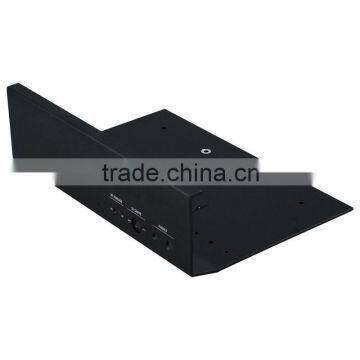

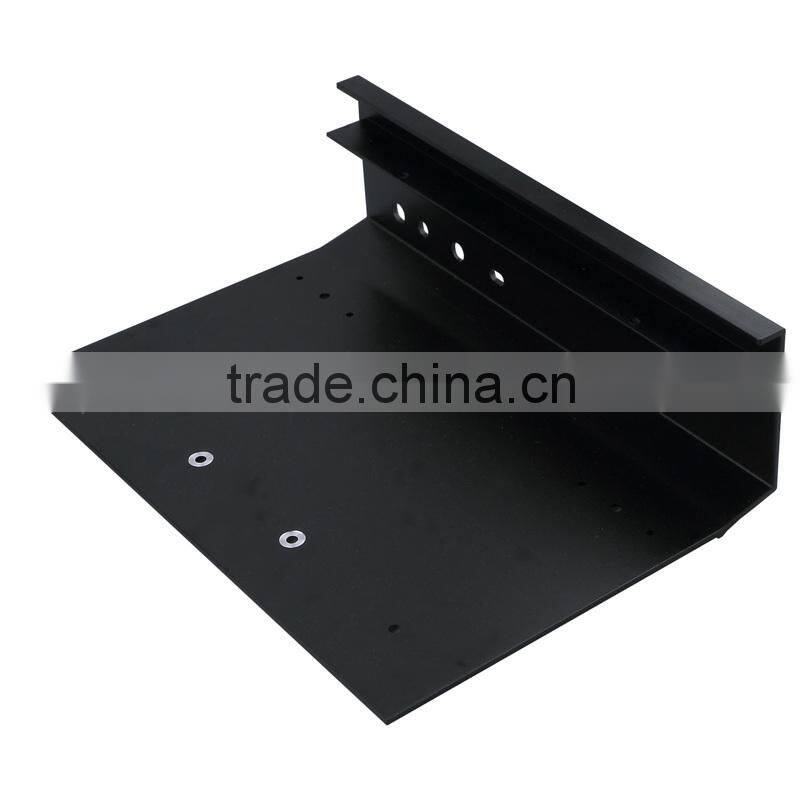

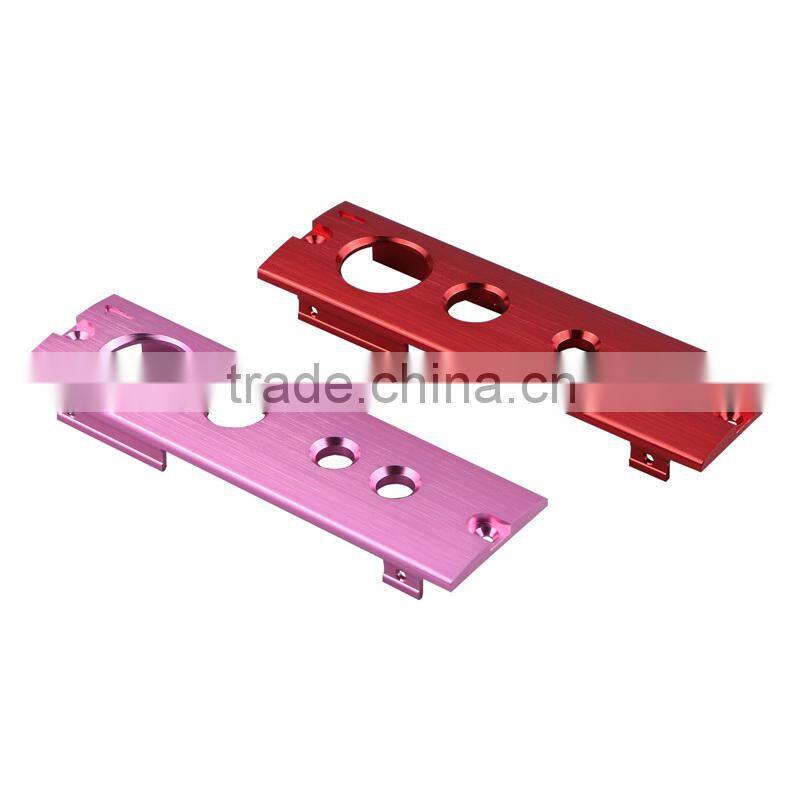

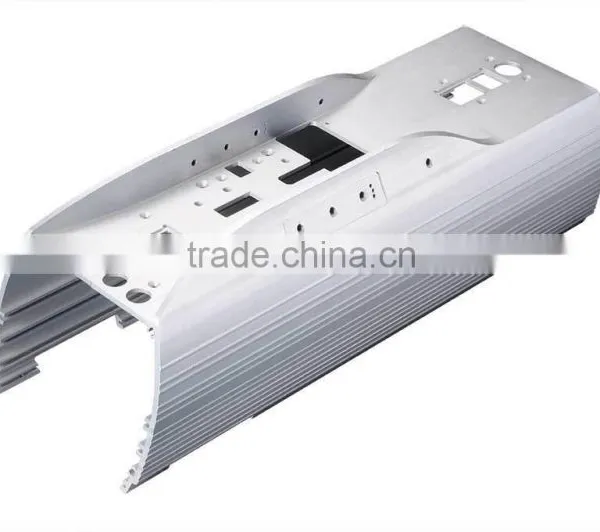

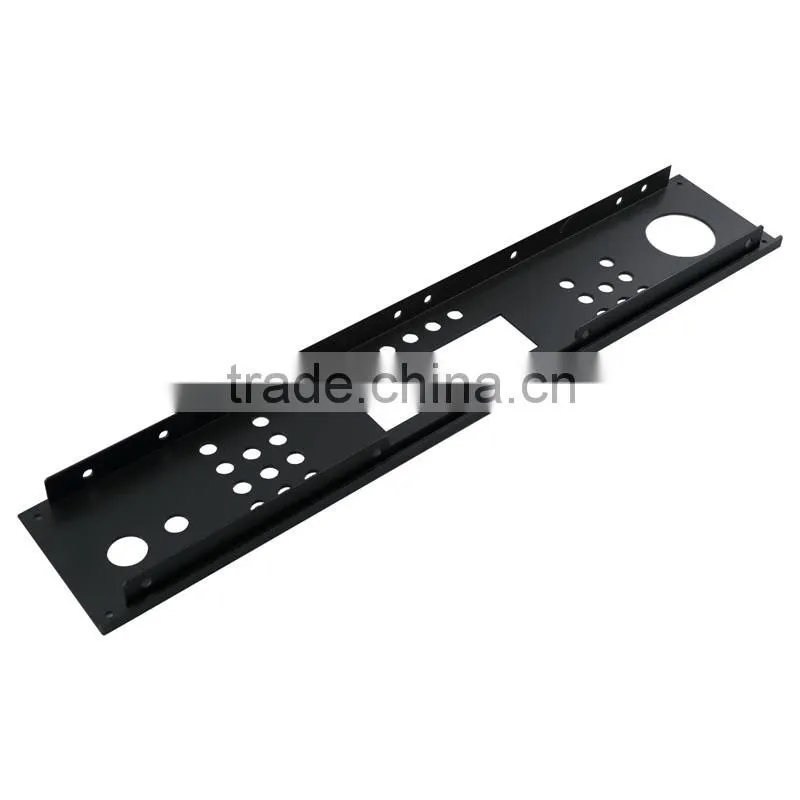

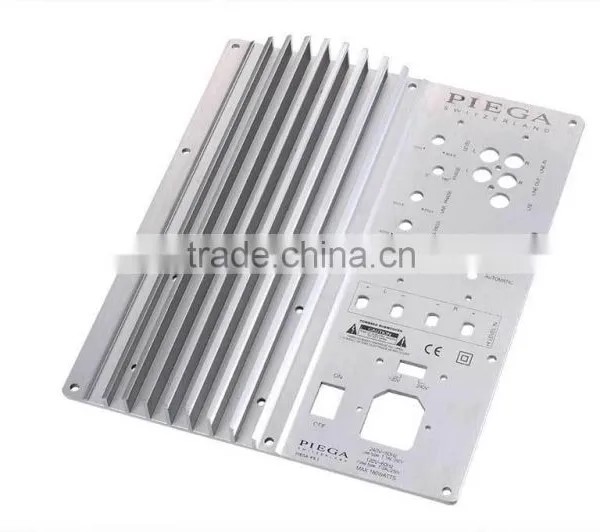

Aluminium Amplifier Front Panel

Item

Original Product

Alternatives

Shape

Irregular

Round ,Square, Triangle, Rectangle etc...and Customized shapes are welcome.

Alloy

6063 alloy

6061,6082,6060,6005,6N01,5083,5056,3003,7005,7020 Alloy etc.

Temper

 T6

T3,T4,T5,T6,T8 can be discussed.

Finishing

 Anodized

Mill finished, Anodized, Electrophoresis, Powder coated, Painted, Sliver matt, Sand blasted, PVDF, Silk screened etc.

Item

Original Product

Alternatives

Standard for Extrusion

GB /T5237-2000
(Chinese Standard)

EN-755-2/3/6/8, BS-1474, BS 1161
(British Standards)
JIS  H4100 (Japanese Standard)
AS/NZS1866-1997
(Australian New Zealand Standard)

Standard for Fabrication

GB/T1804-92

BS 8118
TS1649

Standard for Anodizing

GB5237.2-2004

BS1615:1987
BS5599:1993
Mil-A-8625E Type II
Mil-A-8625E Type III

Standard for Hard Anodizing

BS5599:1993

Not required

Standard for Powder coating

Not required

GB5237.4-2004

Working/Service procedure

Die designing→Die making→Smelting&alloying→Extruding→Cutting→CNC machining→Driling→Tapping→Surface treatment→Welding→Assembling→Packing→Shipping→After Sale Service

Quality oriented

ISO 9001:2008  TS16949:2002

Documents

Mill Certificates, RoHS, REACH(SVHC), Working Instructions, Inspection Instructions, Packing Instruction, PPAP(including Control Plan, PFMEA etc.), Unpacking/unloading Instructions for customers.

Packing Method

1,Standard packing: plastic sheet wrapped for each profile in order to protect the profiles' surfaces , Kraft paper wrapped in bundles.
2,Special packing: wooden cases+ iron trays.
3,Bundles or boxes with wooden bars

4. EPE+ carton boxes.
5,Customized packing methods are welcomed.

Loading Weight

20'GP for 13tons, 40'GP for 20tons. LCL shipment will be acceptable.

Minimum Order

300kg per trial order. One pc of sample free of charge provided by approval and kept for future mass production inspection, delivery fees on buyer.

Production Capacity

40,000MT/year

Tooling

Available

Sample Lead time

15-18working days include 7-10days making tooling if it's necessary.

Production lead time

10-20working days.

Payment term:

Tooling:100% prepaid by wire transfer.
Parts: 30% upon order confirmation and balance before delivery by T/T.
Other payment terms can be discussed.

Shipping Term:

FOB ,CIF or others can be discussed.
