Product Details
Type: | Other, Plough | Use: | Other, ploughing | Place of Origin: | Punjab, India |
Brand Name: | Brohawk, Brohawk | Model Number: | BDP-2,3, BDP-300 |
Product Description

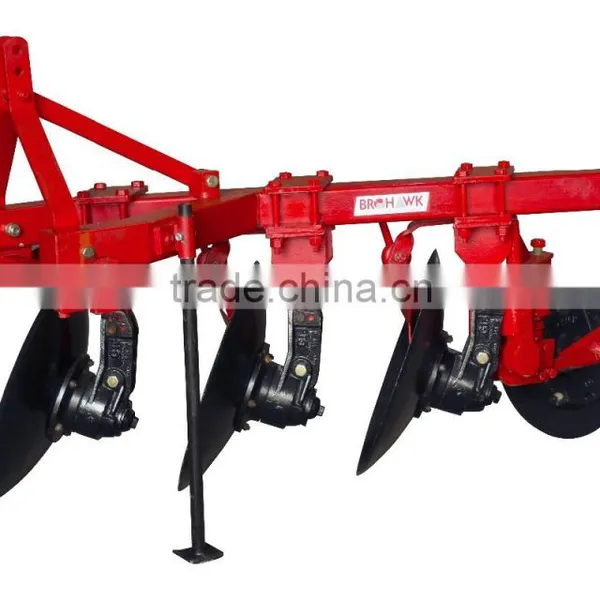

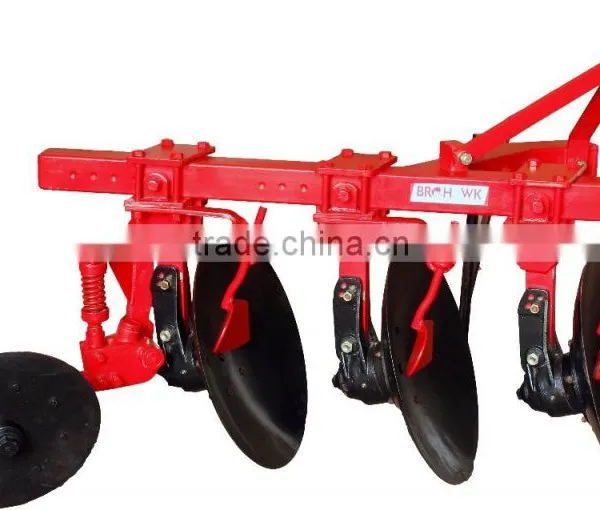

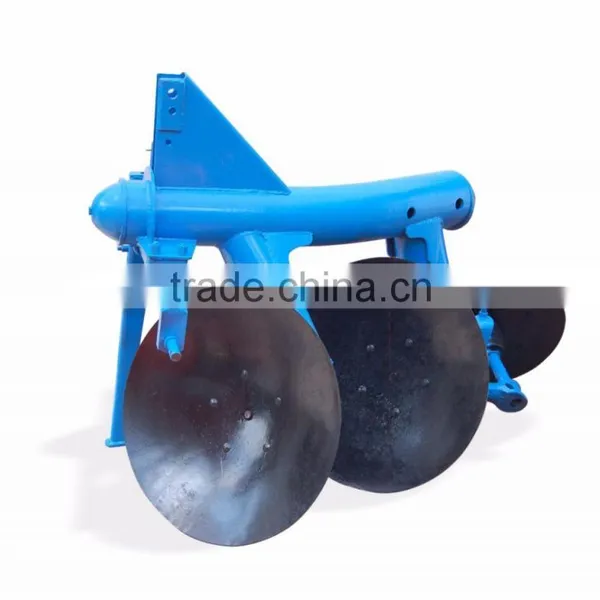

Disc Plough
The disc plough is designed to work in all types of soil for basic functions such as soil breaking, soil raising, soil turning and soil mixing .It is used to open the new fields and to process the stony areas. It can be used easily at rocky and rooted areas. It is especially useful in hard and dry trashy land conditions and in soils where scouring is a major problem. Inconformity with the soil conditions it is being produced with 2-3 and 4 bottoms version with an option for extra kit for converting it to extra-bottom plough. It is directly mounted to the tractors. Extra heavy-duty pipe frame has high clearance allowing the plough to operate under heavy crop residue.
Tublar Type Disc Plough Specification:
CODE | BDP-2 | BDP-3 | BDP-4 | BDP-5 | BDP-6 |
SIZE | 2 BOTTAM | 3 BOTTAM | 4 BOTTAM | 5 BOTTAM (4+1) | 6 BOTTOM (4+2) |
FRAME (OD 150 mm) | Extra Heavy Duty Tubular Frame | Extra Heavy Duty Tubular Frame | Extra Heavy Duty Tubular Frame | Extra Heavy Duty Tubular Frame | Extra Heavy Duty Tubular Frame |
MOUNTED | CAT-II | CAT-II | CAT-II | CAT-II | CAT-II |
LENGTH | 1800 mm | 2400 mm | 3000 mm | 3600 mm | 4200 mm |
WIDTH | 820 mm | 1040 mm | 1260 mm | 1480 mm | 1700 mm |
HEIGHT | 1220 mm | 1220 mm | 1220 mm | 1220 mm | 1220 mm |
DISCS | 660 x 6 mm | 660 x 6 mm | 660 x 6 mm | 660 x 6 mm | 660 x 6 mm |
DISC SPACING | 570 mm | 570 mm | 570 mm | 570 mm | 570 mm |
COLTER DISC | 500 x 5 mm | 500 x 5 mm | 500 x 5 mm | 500 x 5 mm | 500 x 5 mm |
SCRAPPER | 6 mm-adjustable | 6 mm-adjustable | 6 mm-adjustable | 6 mm-adjustable | 6 mm-adjustable |
BEARINGS | 2 Nos. Taper Roller/disc | 2 Nos. Taper Roller /disc | 2 Nos. Taper Roller/disc | 2 Nos. Taper Roller/disc | 2 Nos. Taper Roller/disc |
WIDTH OF CUT | 500-550 mm | 875-925 mm | 1150-1200 mm | 1575-1625 mm | 1900-1950 mm |
WEIGHT | 230 Kg (approx) | 330 Kg (approx) | 430 Kg (approx) | 540 Kg (approx) | 650Kg |
TRACTOR (HP) | 45-50 | 60-65 | 75-85 | 100-110 | Above 110 |
Y Type Disc Plough Specification:
CODE | BDP-2 | BDP-3 | BDP-4 | BDP-5 | BDP-6 |
SIZE | 2 BOTTAM | 3 BOTTAM | 4 BOTTAM | 5 BOTTAM (4+1) | 6 BOTTOM (4+2) |
FRAME (OD 150 mm) | Extra Heavy Duty Square pipe | Extra Heavy Duty Square pipe | Extra Heavy Duty Square pipe | Extra Heavy Duty Square pipe | Extra Heavy Duty Square pipe |
MOUNTED | CAT-II | CAT-II | CAT-II | CAT-II | CAT-II |
LENGTH | 1500 mm | 1900 mm | 2300 mm | 2700 mm | 3100 mm |
WIDTH | 820 mm | 1040 mm | 1260 mm | 1480 mm | 1700 mm |
HEIGHT | 1270 mm | 1270 mm | 1270 mm | 1270 mm | 1270 mm |
DISCS | 660 x 6 mm | 660 x 6 mm | 660 x 6 mm | 660 x 6 mm | 660 x 6 mm |
DISC SPACING | Adjustable | Adjustable | Adjustable | Adjustable | Adjustable |
COLTER DISC | 500 x 5 mm | 500 x 5 mm | 500 x 5 mm | 500 x 5 mm | 500 x 5 mm |
SCRAPPER | 6 mm-adjustable | 6 mm-adjustable | 6 mm-adjustable | 6 mm-adjustable | 6 mm-adjustable |
BEARINGS | 2 Nos. Taper Roller /disc | 2 Nos. Taper Roller /disc | 2 Nos. Taper Roller /disc | 2 Nos. Taper Roller /disc | 2 Nos. Taper Roller /disc |
WEIGHT | 250 kg | 350 kg | 450 kg | 560 kg | 670 kg |
TRACTOR (HP) | 45-50 | 60-65 | 75-85 | 100-110 | Above 110 |
