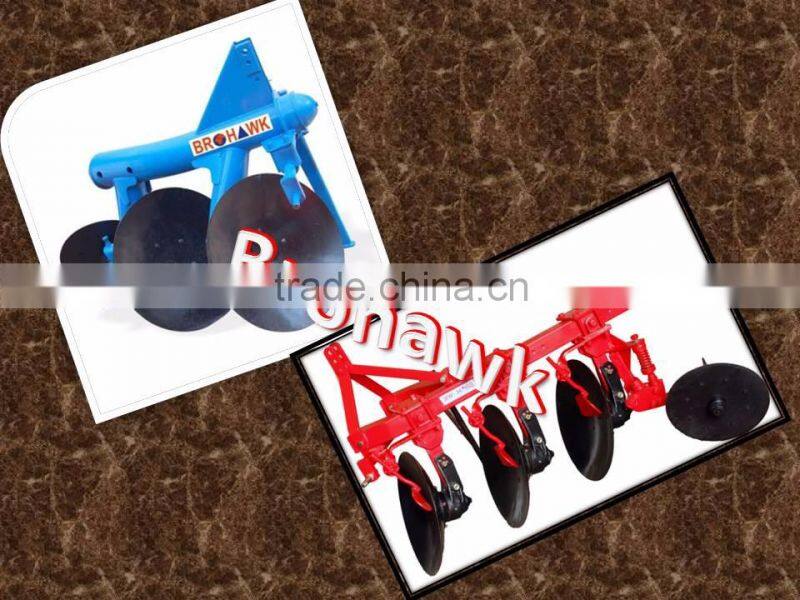

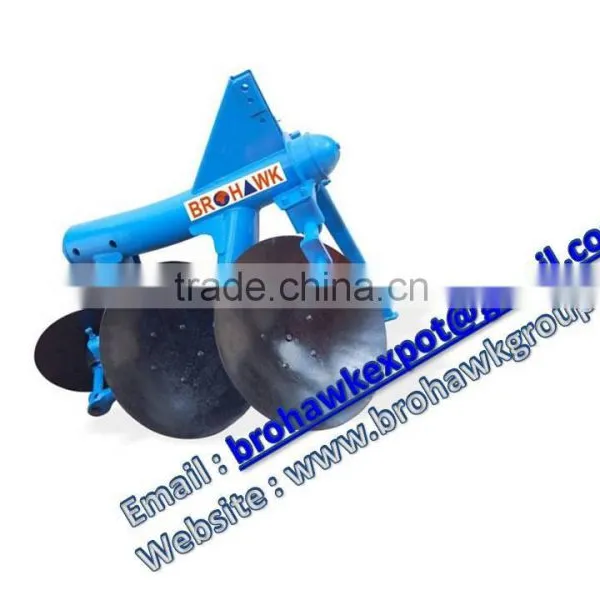

Farm Disc Plough

The disc plough is designed to work in all types of soil for basic functions such as soil breaking, soil raising, soil turning and soil mixing.

It is used to open the new fields and to process the stony areas.
It can be used easily at rocky and rooted areas.
It is especially useful in hard and dry trashy land conditions and in soils where scouring is a major problem.
Inconformity with the soil conditions it is being produced with 2-3 and 4 bottoms version with an option for extra kit for converting it to extra-bottom plough.
It is directly mounted to the tractors.
Extra heavy-duty pipe frame has high clearance allowing the plough to operate under heavy crop residue.

Specification:

CODE	BDP-2	BDP-3	BDP-4	BDP-5	BDP-6
SIZE	2 BOTTAM	3 BOTTAM	4 BOTTAM	5 BOTTAM (4+1)	6 BOTTOM (4+2)
FRAME (OD 150 mm)	Extra Heavy Duty Tubular Frame	Extra Heavy Duty Tubular Frame	Extra Heavy Duty Tubular Frame	Extra Heavy Duty Tubular Frame	Extra Heavy Duty Tubular Frame
MOUNTED	CAT-II	CAT-II	CAT-II	CAT-II	CAT-II
LENGTH	1800 mm	2400 mm	3000 mm	3600 mm	4200 mm
WIDTH	820 mm	1040 mm	1260 mm	1480 mm	1700 mm
HEIGHT	1220 mm	1220 mm	1220 mm	1220 mm	1220 mm
DISCS	660 x 6 mm	660 x 6 mm	660 x 6 mm	660 x 6 mm	660 x 6 mm
DISC SPACING	570 mm	570 mm	570 mm	570 mm	570 mm
COLTER DISC	500 x 5 mm	500 x 5 mm	500 x 5 mm	500 x 5 mm	500 x 5 mm
WEIGHT	250 Kg (approx)	35 Kg (approx)	450 Kg (approx)	560 Kg (approx)	670Kg
SCRAPPER	6 mm-adjustable	6 mm-adjustable	6 mm-adjustable	6 mm-adjustable	6 mm-adjustable
BEARINGS	2 Nos. Taper Roller /disc	2 Nos. Taper Roller /disc	2 Nos. Taper Roller /disc	2 Nos. Taper Roller /disc	2 Nos. Taper Roller /disc
WIDTH OF CUT	500-550 mm	875-925 mm	1150-1200 mm	1575-1625 mm	1900-1950 mm
WEIGHT	230 Kg (approx)	330 Kg (approx)	430 Kg (approx)	540 Kg (approx)	650Kg
TRACTOR (HP)	45-50	60-65	. 75-85	100-110	Above 110
