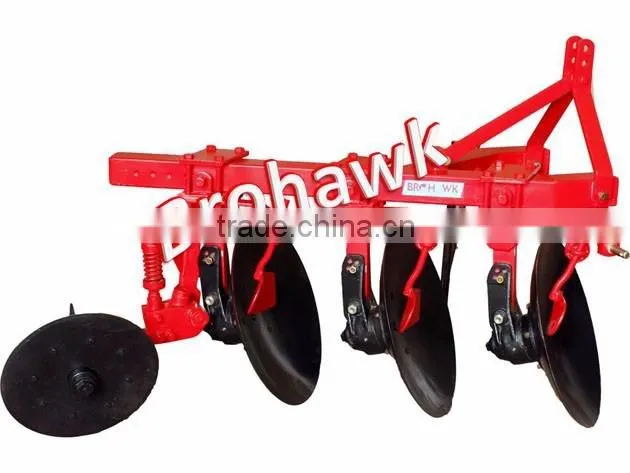

Disc Plough
The disc plough is designed to work in all types of soil for basic functions such as soil breaking, soil raising, soil turning and soilmixing
. It is used to open the new fields and to process the stony areas.
. It can be used easily at rocky and rooted areas.
. It is especially useful in hard and dry trashy land conditions and in soils where scouring is a major problem.
. Inconformity with the soil conditions it is being produced with 2-3 and 4 bottoms version with an option for extra kit for converting it to extra-bottom plough.
. It is directly mounted to the tractors.
. Extra heavy-duty pipe frame has high clearance allowing the plough to operate under heavy crop residue.
Y TYPE DISC PLOUGH SPECIFICATION:-
CODE |
BDP-2 |
BDP-3 |
BDP-4 |
BDP-5 |
BDP-6 |
SIZE |
2 BOTTAM |
3 BOTTAM |
4 BOTTAM |
5 BOTTAM (4+1) |
6 BOTTOM (4+2) |
|
FRAME (OD 150 mm) |
Extra Heavy Duty Square pipe |
Extra Heavy Duty Square pipe |
Extra Heavy Duty Square pipe |
Extra Heavy Duty Square pipe |
Extra Heavy Duty Square pipe |
MOUNTED |
CAT-II |
CAT-II |
CAT-II |
CAT-II |
CAT-II |
LENGTH |
1500 mm |
1900 mm |
2300 mm |
2700 mm |
3100 mm |
WIDTH |
820 mm |
1040 mm |
1260 mm |
1480 mm |
1700 mm |
HEIGHT |
1270 mm |
1270 mm |
1270 mm |
1270 mm |
1270 mm |
DISCS |
660 x 6 mm |
660 x 6 mm |
660 x 6 mm |
660 x 6 mm |
660 x 6 mm |
DISC SPACING |
Adjustable |
Adjustable |
Adjustable |
Adjustable |
Adjustable |
COLTER DISC |
500 x 5 mm |
500 x 5 mm |
500 x 5 mm |
500 x 5 mm |
500 x 5 mm |
SCRAPPER |
6 mm-adjustable |
6 mm-adjustable |
6 mm-adjustable |
6 mm-adjustable |
6 mm-adjustable |
BEARINGS |
2 Nos. Taper Roller /disc |
2 Nos. Taper Roller /disc |
2 Nos. Taper Roller /disc |
2 Nos. Taper Roller /disc |
2 Nos. Taper Roller /disc |
WEIGHT |
250 kg |
350 kg |
450 kg |
560 kg |
670 kg |
TRACTOR (HP) |
45-50 |
60-65 |
75-85 |
100-110 |
Above 110 |
