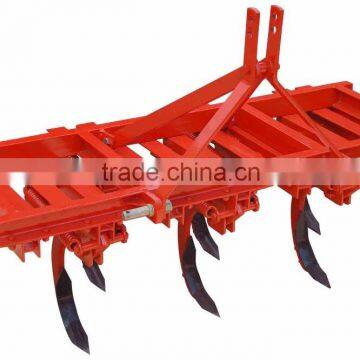

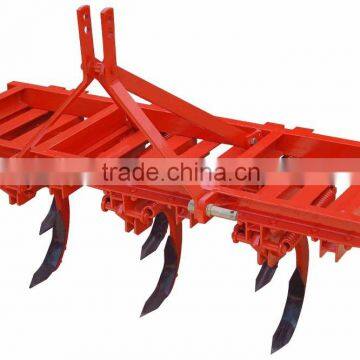

- Suitable for use in stone and root obstructed soil.
- It is designed for toughest operations.
- Used for loosening and aerating soil to a depth of nine inches.
- Prepares seed beds quickly and economically.
- When one tine strikes a hidden object, the other continue to work at the correct depth.
- Spring loaded assemblies derive their strength from heavy-duty angles, which once fixed to the immensely strong main frame cannot move or strain out of position.
CODE | 5 TINE | 7 TINE | 9 TINE | 11 TINE | 13 TINE | 15 TINE |
Frame (Channle) | 75 x 40 mm | 75 x 40 mm | 75 x 40 mm | 75 x 40 mm | 75 x 40 mm Foldable | 75 x 40 mm Foldable |
Spring | 10 mm WD, 50 mm OD 28.5 Coils | 10 mm WD, 50 mm OD 28.5 Coils | 10 mm WD, 50 mm OD 28.5 Coils | 10 mm WD, 50 mm OD 28.5 Coils | 10 mm WD, 50 mm OD 28.5 Coils | 10 mm WD, 50 mm OD 28.5 Coils |
Tine (forged) | 50 x 25 mm | 50 x 25 mm | 50 x 25 mm | 50 x 25 mm | 50 x 25 mm | 50 x 25 mm |
Pairs (angle) | 65x65x6 mm | 65x65x6 mm | 65x65x6 mm | 65x65x6 mm | 65x65x6 mm | 65x65x6 mm |
Anchor Pin | 22 mm | 22 mm | 22 mm | 22 mm | 22 mm | 22 mm |
Nuts | High Tensile | High Tensile | High Tensile | High Tensile | High Tensile | High Tensile |
Frame Bolt | M 12 x 35 (High Tensile) | M 12 x 35 (High Tensile) | M 12 x 35 (High Tensile) | M 12 x 35 (High Tensile) | M 12 x 35 (High Tensile) | M 12 x 35 (High Tensile) |
Tine Boltm | 18 x 65 mm (High Tensile) | 18 x 65 mm (High Tensile) | 18 x 65 mm (High Tensile) | 18 x 65 mm (High Tensile) | 18 x 65 mm(High Tensile) | 18 x 65 mm (High Tensile) |
Linkage 3 Point | 50 x 12 mm (rear) 50 x 12 (front) | 50 x 12 mm(rear) 50 x 12 (front) | 50 x 12 mm (rear) 50 x 12 (front) | 50 x 12 mm (rear) 50 x 12 (front) | 75 x 12 mm (front) 50 x 12 (rear) | 75 x 12 mm (front) 50 x 12 (rear) |
Shovel | 8 mm En-45 | 8 mm En-45 | 8 mm En-45 | 8 mm En-45 | 8 mm En-45 | 8 mm En-45 |
Length | 1110 mm | 1560 mm | 2000 mm | 2457 mm | 2914 mmm | 3215 mm |
Width | 850 mm | 850 mm | 850 mm | 850 mm | 850 mm | 850 mm |
Height | 585 mm | 585 mm | 585 mm | 585 mm | 585 mm | 585 mm |
Tiller Pin | 25 mm | 25 mm | 25 mm | 25 mm | 25 mm | 25 mm |
Weight | 190 kg | 240 kg | 280 kg | 340 kg | 450 kg | 520 kg |
CODE | 5 TINE | 7 TINE | 9 TINE | 11 TINE | 13 TINE | 15 TINE |
Frame (Channle) | 75 x 40 mm | 75 x 40 mm | 75 x 40 mm | 75 x 40 mm | 75 x 40 mm Foldable | 75 x 40 mm Foldable |
Spring | 10 mm WD, 50 mm OD 28.5 Coils | 10 mm WD, 50 mm OD 28.5 Coils | 10 mm WD, 50 mm OD 28.5 Coils | 10 mm WD, 50 mm OD 28.5 Coils | 10 mm WD, 50 mm OD 28.5 Coils | 10 mm WD, 50 mm OD 28.5 Coils |
Tine (forged) | 50 x 25 mm | 50 x 25 mm | 50 x 25 mm | 50 x 25 mm | 50 x 25 mm | 50 x 25 mm |
Pairs (angle) | 65x65x6 mm | 65x65x6 mm | 65x65x6 mm | 65x65x6 mm | 65x65x6 mm | 65x65x6 mm |
Anchor Pin | 22 mm | 22 mm | 22 mm | 22 mm | 22 mm | 22 mm |
Nuts | High Tensile | High Tensile | High Tensile | High Tensile | High Tensile | High Tensile |
Frame Bolt | M 12 x 35(High Tensile) | M 12 x 35 (High Tensile) | M 12 x35(HighTensile) | M 12 x 35(High Tensile) | M 12 x 35 (High Tensile) | M 12 x 35 (High Tensile) |
Tine Boltm | 18 x 65 mm (High Tensile) | 18 x 65 mm (High Tensile) | 18 x 65 mm (High Tensile) | 18 x 65 mm (High Tensile) | 18 x 65 mm (High Tensile) | 18 x 65 mm (High Tensile) |
Linkage 3 Point | 50 x 12 mm (rear) 50 x 12 (front) | 50 x 12 mm(rear) 50 x 12 (front) | 50 x 12 mm (rear) 50 x 12 (front) | 50 x 12 mm (rear) 50 x 12 (front) | 75 x 12 mm (front) 50 x 12 (rear) | 75 x 12 mm (front) 50 x 12 (rear) |
Shovel | 8 mm En-45 | 8 mm En-45 | 8 mm En-45 | 8 mm En-45 | 8 mm En-45 | 8 mm En-45 |
Length | 1110 mm | 1560 mm | 2000 mm | 2457 mm | 2914 mmm | 3215 mm |
Width | 850 mm | 850 mm | 850 mm | 850 mm | 850 mm | 850 mm |
Height | 585 mm | 585 mm | 585 mm | 585 mm | 585 mm | 585 mm |
Tiller Pin | 25 mm | 25 mm | 25 mm | 25 mm | 25 mm | 25 mm |
Weight | 190 kg | 240 kg | 280 kg | 340 kg | 450 kg | 520 kg |
